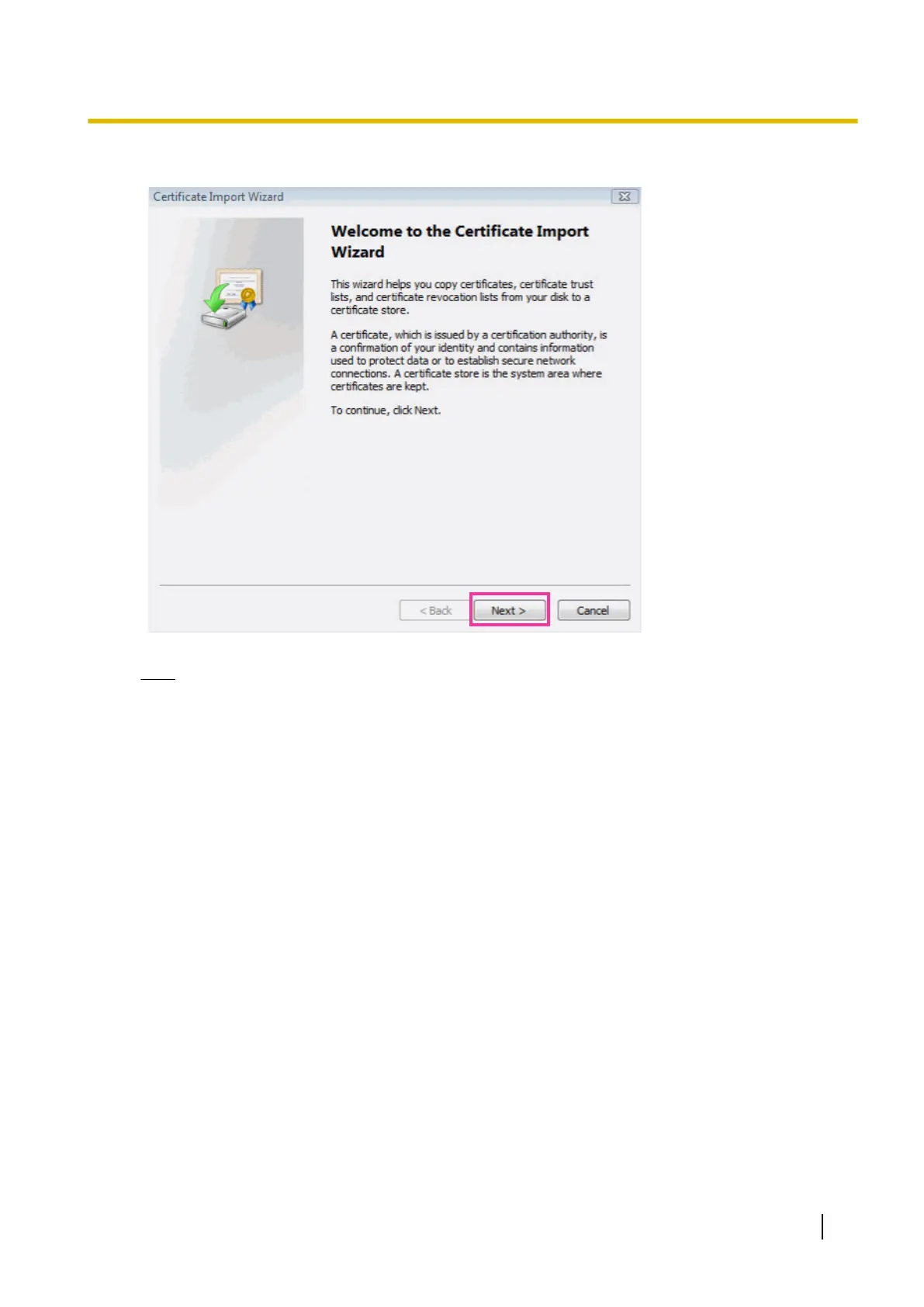

5. Click “Next” displayed on “Certificate Import Wizard”.

Note

• When using Internet Explorer 10, Internet Explorer 11, select “Store Location”, and then click

“Next”.

Operating Instructions 167

16 Configuring the network settings [Network]
