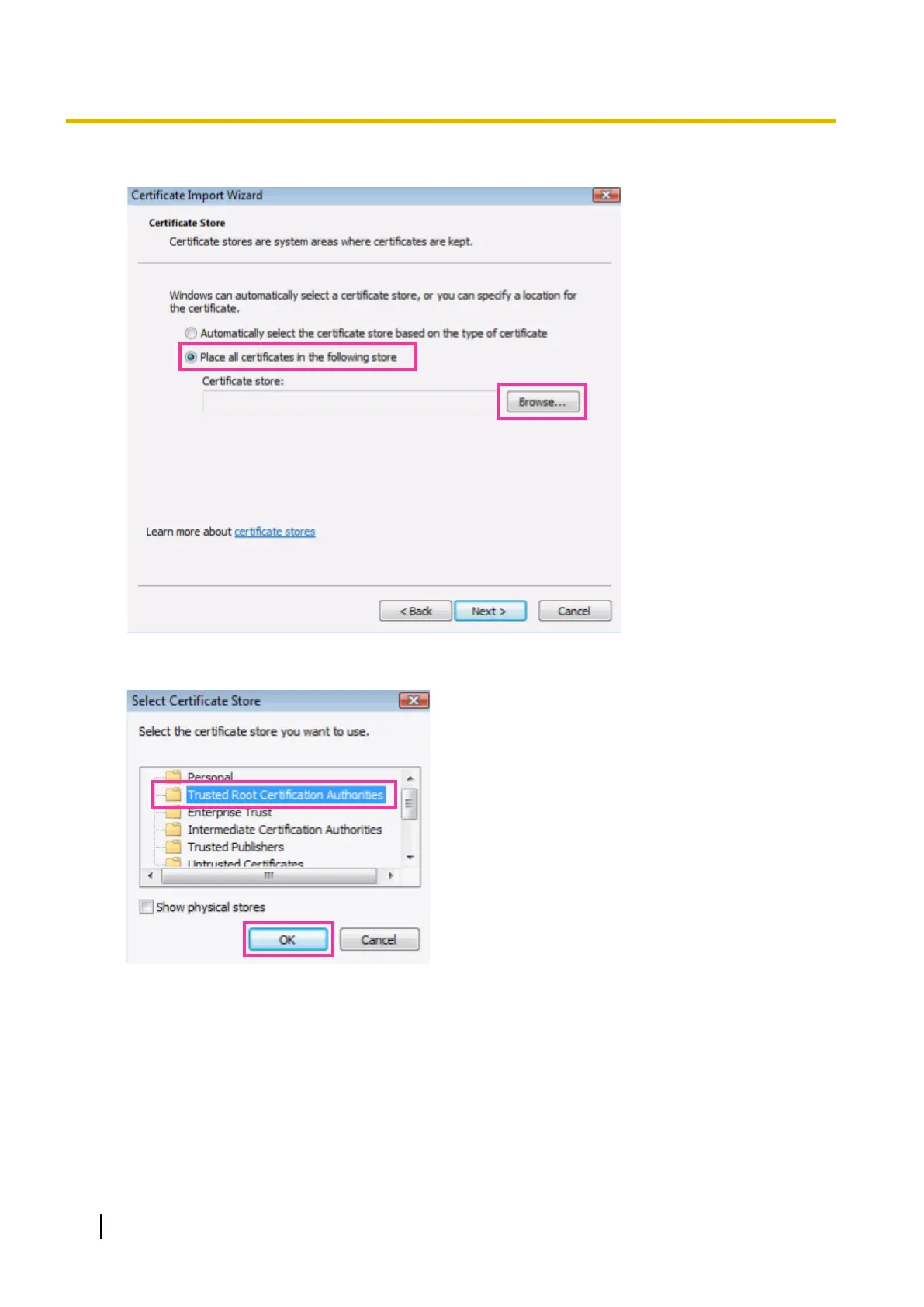

6. Select “Place all certificates in the following store”, and click “Browse...”.

7. Select “Trusted Root Certificate Authorities”, and click “OK”.

168 Operating Instructions
