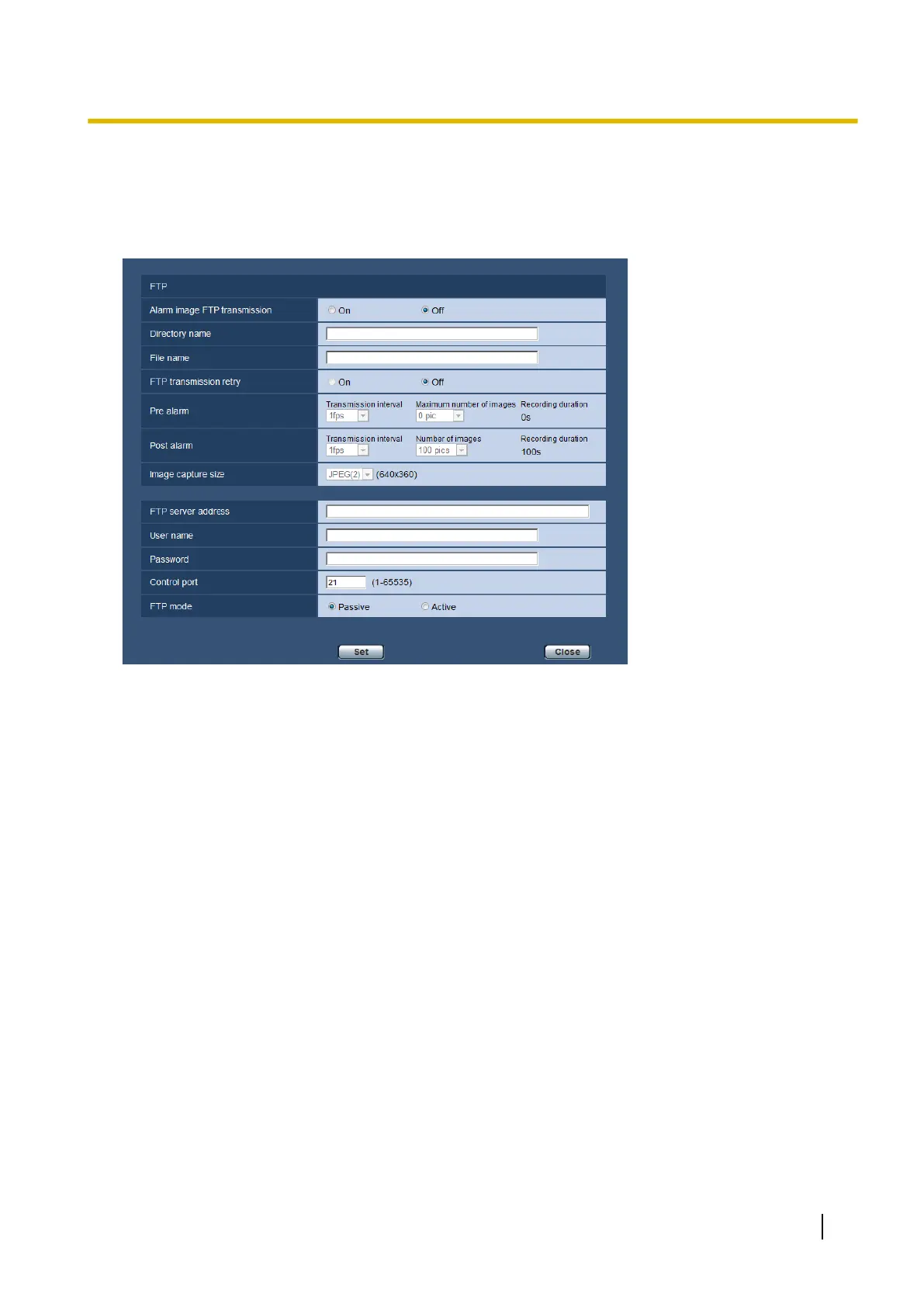

13.4.3 Configure settings relating to FTP transmissions of alarm

images

Click “FTP >>” of “Camera action on alarm” on the [Alarm] tab of the “Alarm” page. (®page 120)

Refer to page 153 for information on configuration for these settings.

Operating Instructions 123

13 Configure the alarm settings [Alarm]
