11 Configure the settings relating to images and
audio [Image/Audio]
The settings relating to JPEG and H.264 images such as the settings of image quality, audio, etc. can be
configured on this page.
The “Image/Audio” page has the [JPEG/H.264] tab, the [Image quality] tab, and the [Audio] tab.
11.1 Configure the settings relating to the image
capture mode [JPEG/H.264]

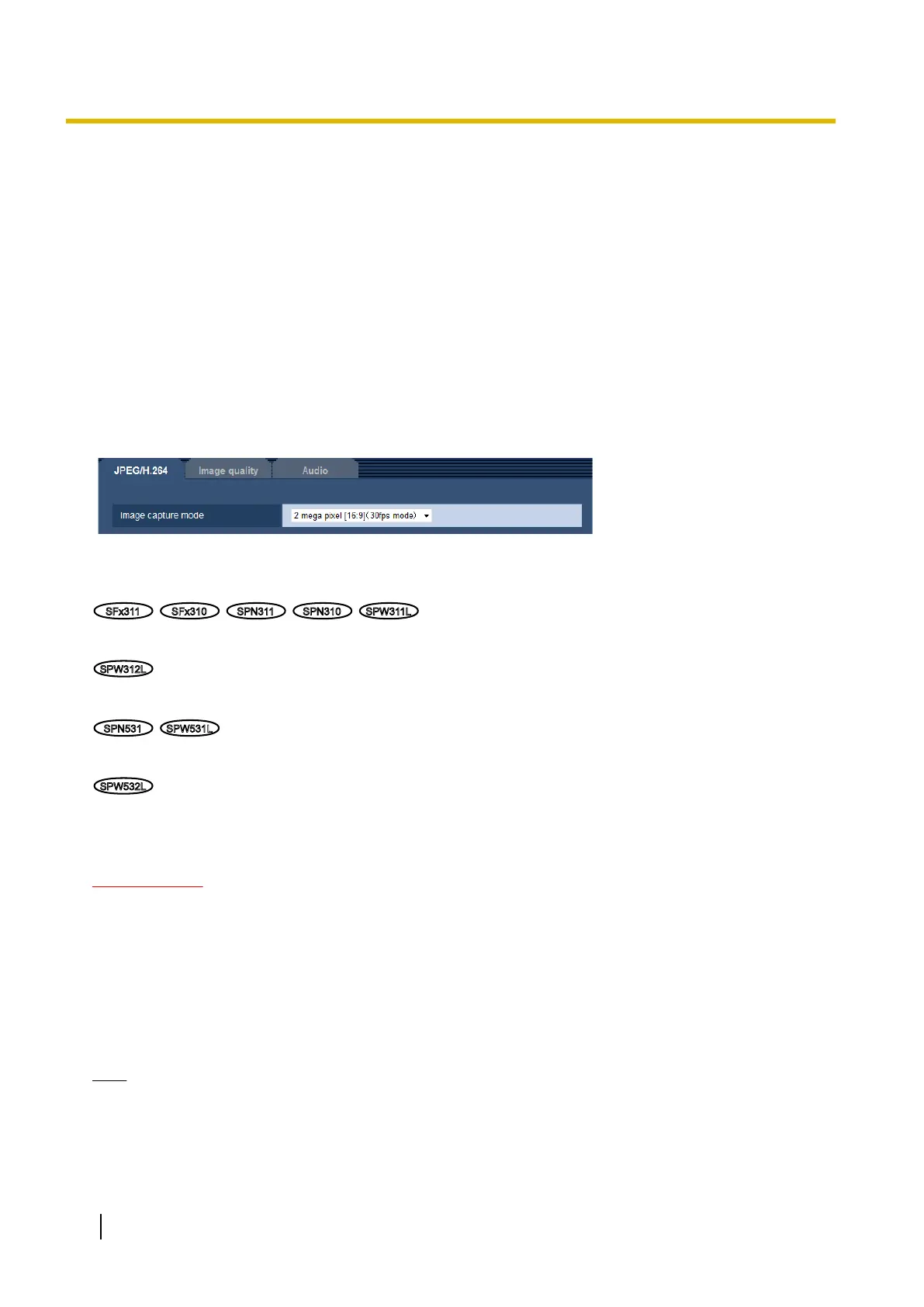

Click the [JPEG/H.264] tab on the “Image/Audio” page. (®page 42, page 44)
[Image capture mode]
Select an image capture mode from the following.
SFx311
SFx310
SPN311
SPN310
SPW311L
1.3 mega pixel [16:9](30fps mode)/1.3 mega pixel [16:9](60fps mode)/1.3 mega pixel [4:3](30fps mode)/2 mega
pixel [16:9](30fps mode)
SPW312L
1.3 mega pixel [16:9](30fps mode)/1.3 mega pixel [4:3](30fps mode)/2 mega pixel [16:9](30fps mode)
• Default: 1.3 mega pixel [16:9](30fps mode)
SPN531
SPW531L
2 mega pixel [16:9](30fps mode)/2 mega pixel [16:9](60fps mode)/2 mega pixel [4:3](30fps mode)/3 mega pixel
[4:3](30fps mode)*
SPW532L
2 mega pixel [16:9](30fps mode)/2 mega pixel [4:3](30fps mode)/3 mega pixel [4:3](30fps mode)*
*Used by super resolution techniques.
• Default: 2 mega pixel [16:9](30fps mode)
IMPORTANT
• The positions of areas may move out of alignment when the “Image capture mode” setting is changed
when the following area settings are configured. Therefore we recommend that you configure each
area setting after configuring the “Image capture mode”.
– mask area (®page 96)
– privacy zone (®page 103)
– VMD area (®page 126)
– VIQS area (®page 105)
– Cropping outlines (®page 137)
Note
• When “On” is selected for “VIQS” and the setting value for the aspect ratio is changed from “4:3” to
“16:9”, make sure that the VIQS setting value does not exceed the maximum designated range.
