21
Installation procedures

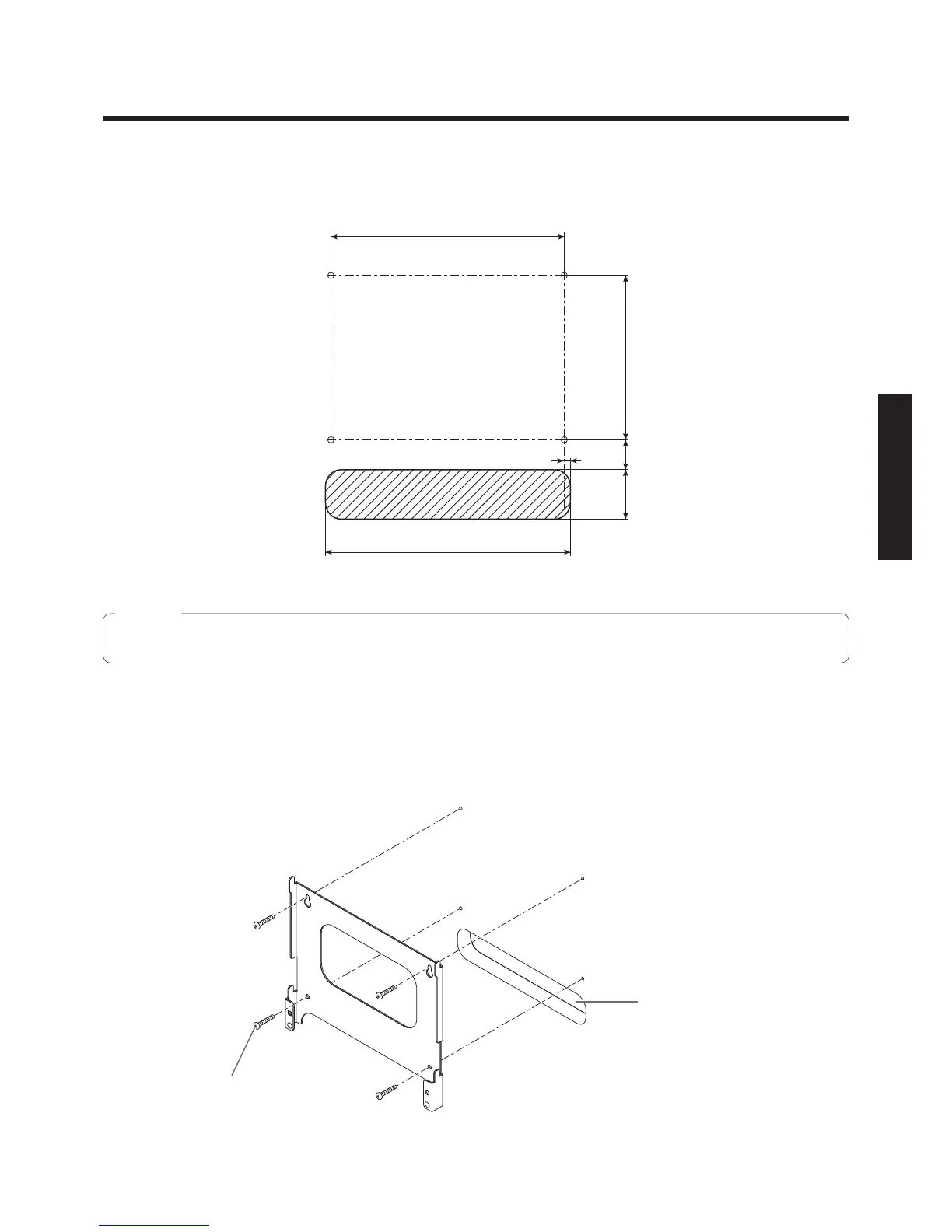

w Deciding on where to install the Center Module
Select a wall on which to mount this unit, drill a hole in it to pass the wires through, and decide where the four screws are to be
positioned, as shown below.
190
1352540
200
5
p Ensure that the installation surface has the pull-out strength below.
Important
w Installation
Mount this unit using the accessory wall mounting bracket and 4 screws (4.1 mm × 25 mm
{5/32 inches × 63/64 inches}).
[Minimum pull-out strength: 780 N {80 kJf}]
Screws (locally procured)
(wood screws:
4.1 mm × 25 mm
{5/32 inches × 63/64 inches})
Wire channel
English
To Next Page
