HS Consumer Treadmill
How To…Replace The Deck Cushion - Continued
Tools Required: Allen key set, Phillips screwdriver, and rubber hammer. (All fasteners are metric. Make sure that you
have metric tools.) ……………………………………………………………………………………..
Section 3
11
REMOVAL AND INSTALLATION

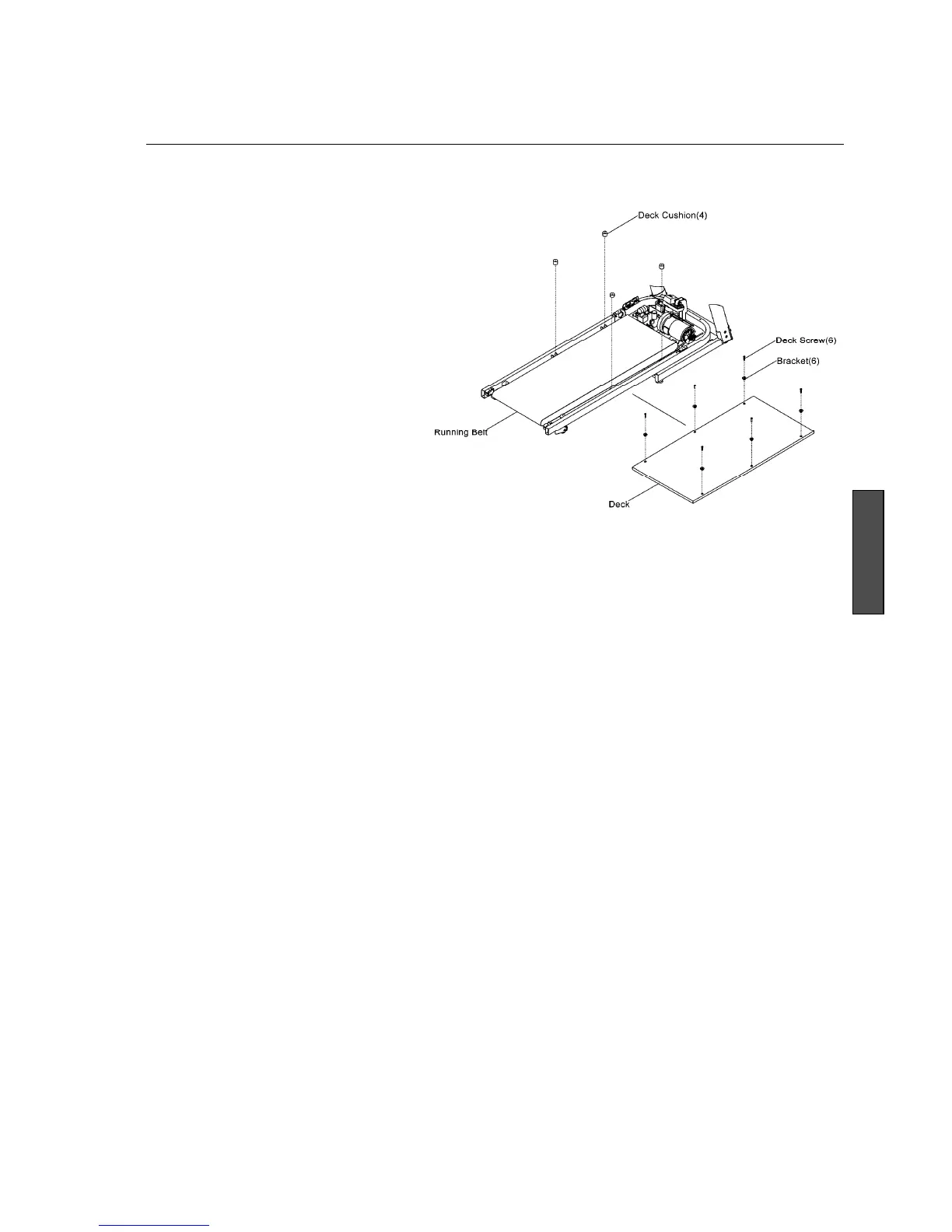

6. Slide each extrusion back.
7. Remove the deck screws(6) and
brackets(6), then lift the deck out of the
running belt.
8. Remove deck cushions(4) from the
frame.
9. Install new deck cushions in reverse
order.
10. Re-tension and center the running belt
as described in the beginning of this
section.
