HS Consumer Treadmill
How To…Replace The Incline Motor - Continued
Tools Required: Phillips screwdriver, Sharp nose pliers, and open end wrench set. (All fasteners are metric. Make sure
that you have metric tools.)
Section 3
14
When incline motor needs calibration:
1. When controller changed.
2. When incline motor is changed.
3. When both controller and incline motor are
changed.
4. If controller CPU is changed.
CALIBRATION
1. To calibrate, make sure the treadmill is not
running (running belt not moving).
2. Turn power on. Wait a few seconds.
3. Press the STOP and SPEED- buttons at the
same time, then the buttons STOP and
SPEED+, then the SPEED- button. The treadmill
is in calibration mode.
Press the START button. The treadmill will run
calibration for the incline motor.
NOTE: If error 5 appears, it means the
controller remembers a different value, so
we need to bypass the controller to calibrate
the incline motor. In that case, we have to
disconnect the incline sensor cable to
bypass the old memory (Please refer to
WIRING DIAGRAM – Section IV, page 7).
Then calibration can be done properly.
4. Just run through a few functions to make sure
everything is in good condition.

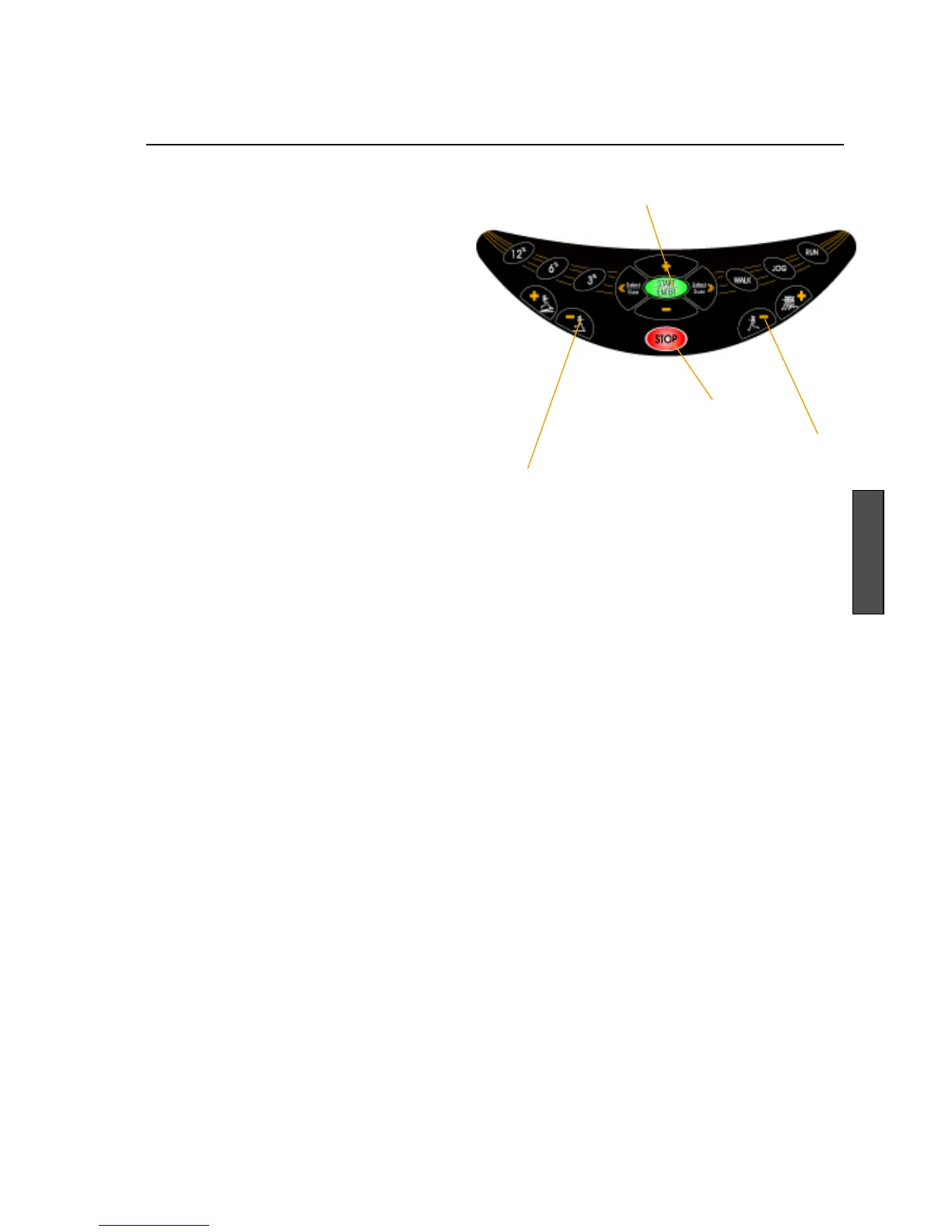

SPEED - / + (SLOW/ FAST)
