HS Consumer Treadmill
How To…Replace The Incline Motor
Tools Required: Phillips screwdriver, Sharp nose pliers, and open end wrench set. (All fasteners are metric. Make sure
that you have metric tools.)
Section 3
12
REMOVAL AND INSTALLATION
1. Turn power on. Check to see if treadmill is at
12% incline.
2. If not be able to process via console, try to
connect incline motor wires directly to AC lines.
The power will make incline go to 12%.
Caution: For safety reasons, put blocks
between the frame to hold up the main frame.
3. At the power switch, turn off the unit and unplug
the power cord at the wall outlet.

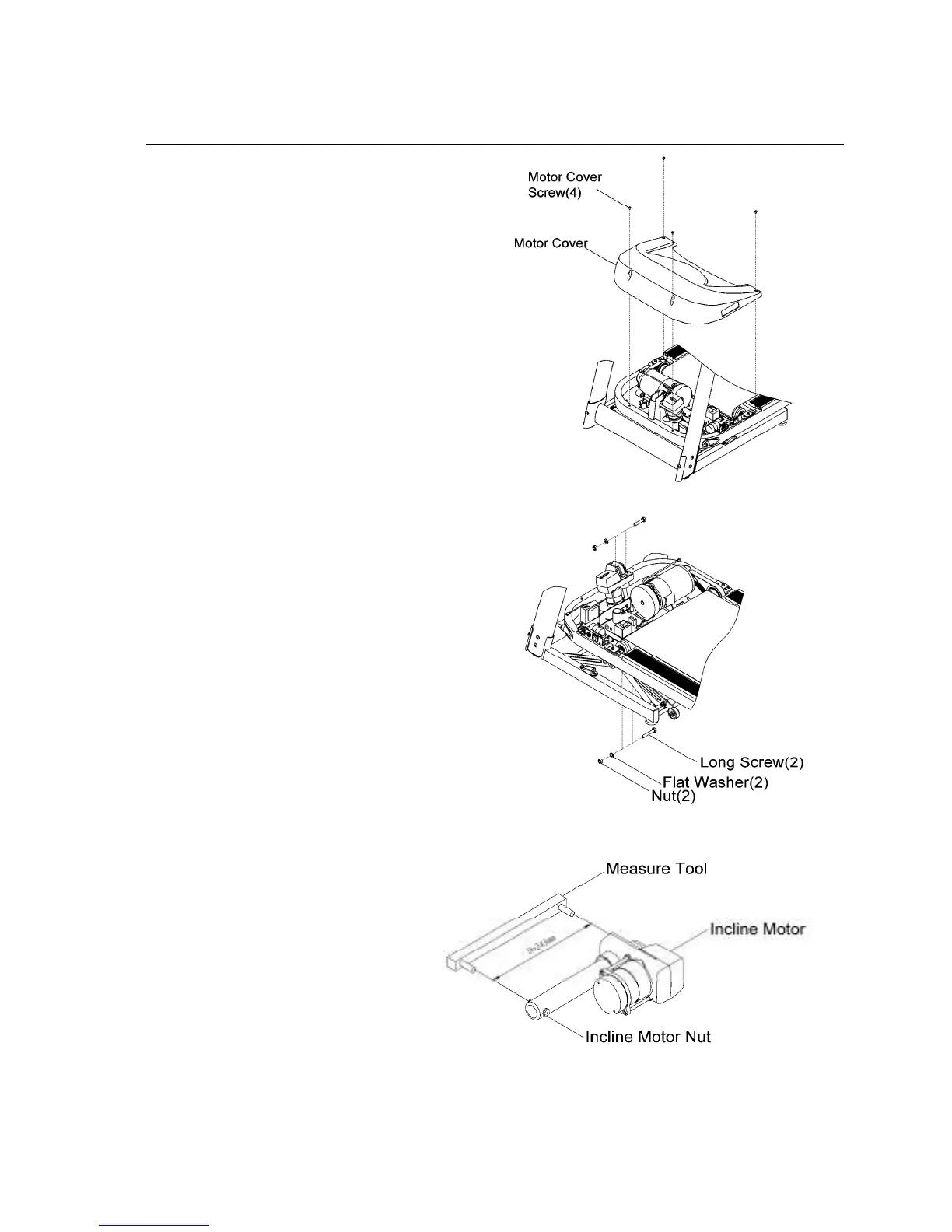

4. Remove the motor cover front screws(4) of the
motor cover, lift off the motor cover.
5. Disconnect all cable connectors from the incline
motor (Please refer to WIRING DIAGRAM –
Section IV, page 9).
6. Remove the incline motor long screws(2) ,flat
washers(2) and nuts(2).
7. Remove incline motor by wrench
To Next Page
