ELECTRONIC OVERVIEW – T561 CONSOLE PCB
Section 4
13
9
10

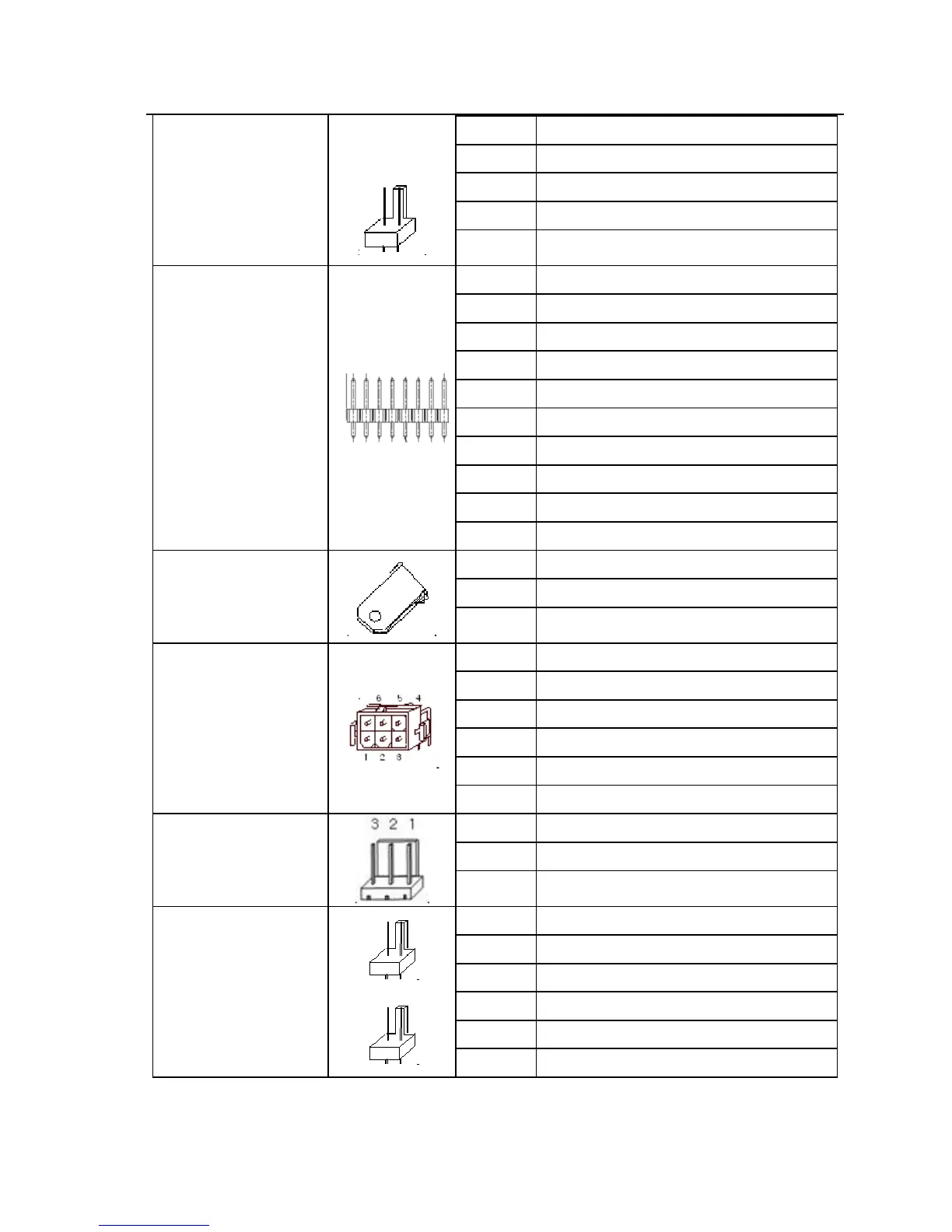

J2 is used for safety key
1
2
J5 is used for keypad
1
2
3
4
5
6
7
8
9
10
J3 is used for earth
1
J9
is a 6pin connector
used for connection with
hand pulse.
1 Safety key
2 Ground
3 Ground
4 VCC(12V)
5 Receive
6 Send
J6 is used for wireless
.(3
pin)
1
2
3
J10 is a 2pin audio out.
1
2
J12 is a 2pin audio out.
1
2
