Used for connecting the
IP100 Internet Module.
Also used for In-Field
Firmware upgrade
through a 307USB Direct
Connect Interface. See
Connecting to WinLoad
on page 36 for details.
DIALER and EBUS port used for voice reporting
with the
VDMP3 plug-in voice module.
Paradox Memory Key
(PMC-4, PMC5)
Status LED:
• Flash once every second = Normal
• Flashes ON 1 second and OFF 1
second = Any trouble
• Always ON = Panel is using phone line
• Fast flash 6 seconds after power up =
Installer lock enabled
Disconnect
telephone line
before servicing.
To metallic
enclosure
Ground
clamp
AWG#14 single
conductor solid
copper wire
Cold water
pipe grounding
AUX Power
For AC power connection
information, see AC Power
& Backup Battery
Connections on page 35.
40VA transformer strongly recommended. Exceeding this limit will overload the panel power supply and lead to
complete system shutdown.
The "BELL" output
will shutdown if the
current exceeds 3A.
To provide maximum
lightning protection we
strongly recommend
having separate earth
connections for the dialer
and zone ground
terminals.
Max. number of keypads = 15 keypads Max. aux. current = 650 mA
Max. distance of keypad from panel = 76m (250 feet) Max. total run of wire = 230m (750 feet)
For the keypad’s zone
configurations, refer to the
Installer Quick Menu. If
EOL is enabled: see section
[706] option [2]. Also refer to
Keypad Zone Connections
on page 33.
Connect to any
Common input.
Refer to AC Power
& Backup Battery
Connections on
page 35.
Refer to Hardware
Connections page 33.
This equipment must be installed and maintained by qualified service personnel only.
For UL and C-UL warnings, refer to the UL and C-UL Warnings section at the back of the E55 Reference & Installation Manual.

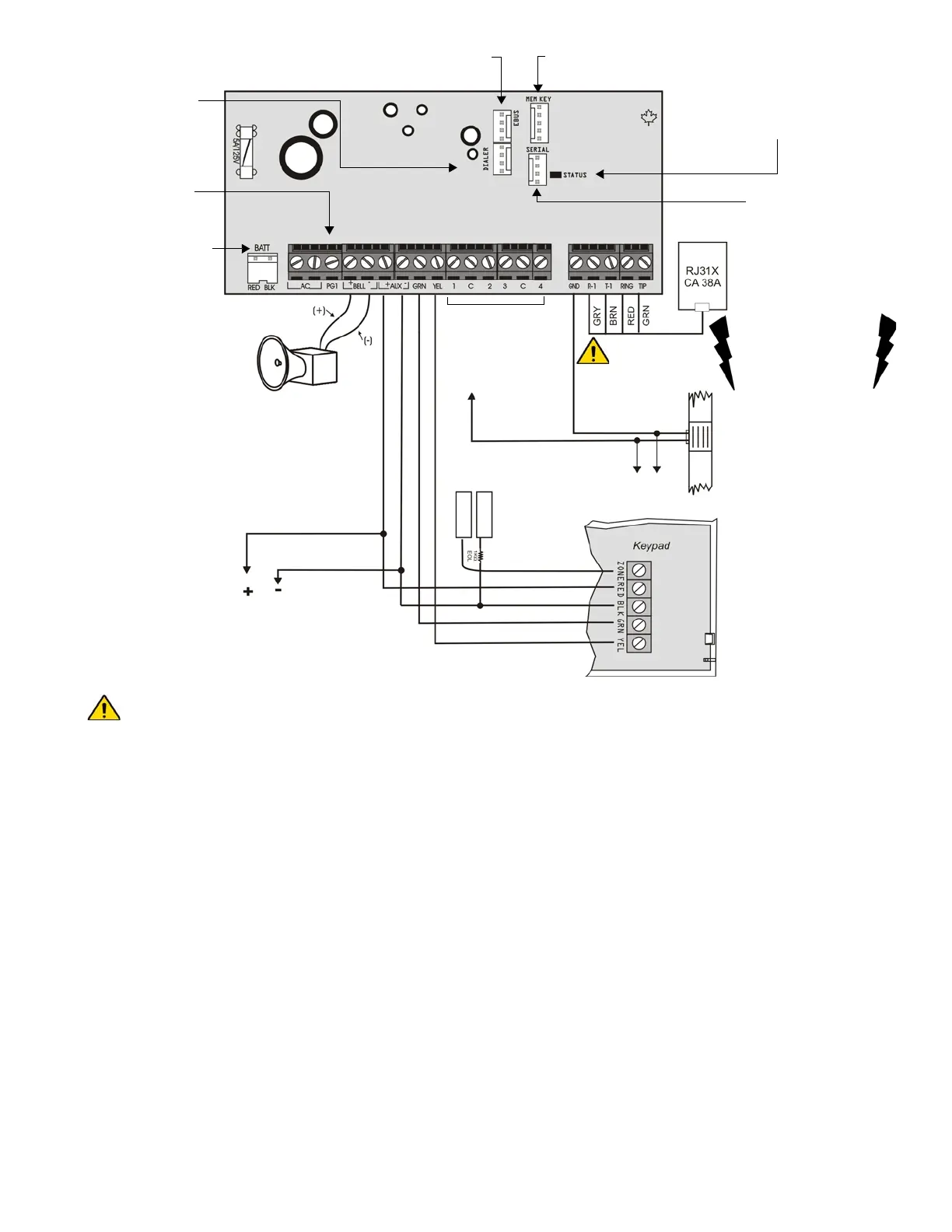

E55 PCB Layout
Refer to PGM
Connections
on page 35.
DIALER port used for GSM
reporting using the
PCS100 GSM
Communicator Module.
To Next Page
