Application Examples
Example No. 1:
Objective: To control an air conditioner to
operate at 73˚ F from 8:00 AM to 12:00 PM
and to operate at 77˚ F from 12:00 PM to
5:00 PM on Monday through Friday. On
nights and weekends the air conditioner will
be off. The air conditioner will also be off
from October 1st to April 30th. Temperature
setpoints are to have a +/- 1˚F deadband.

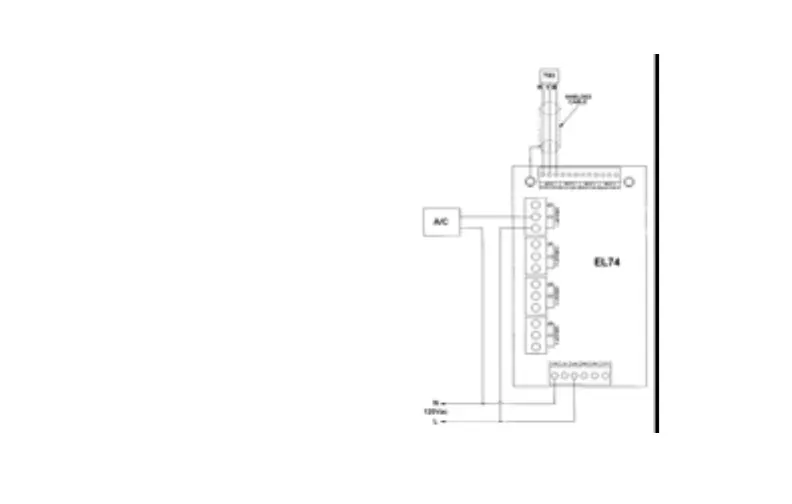

Wiring Diagram:
38
