1: Introduction to the BASIC Stamps
BASIC Stamp Programming Manual 2.0c • www.parallaxinc.com • Page 19
BASIC Stamp 2 Carrier Board (Rev. B)
The BASIC Stamp 2 Carrier Board (also called the BS2 Carrier Board) is
designed to accommodate the BS2-IC, BS2e-IC and BS2sx-IC modules.
The BASIC Stamp 2 Carrier Board provides ample prototyping space for
simple or moderate circuits. Figure 1.13 shows the BASIC Stamp 2 Carrier
Board with the BS2-IC properly inserted into the socket. This board
features a DB9 programming connector, reset button, and 9-volt battery
clips. Two male, 12-pin 0.1” headers (to the left and right of the chip
socket) allows access to all the modules’s pins. The first two columns of
solder pads (closest to the headers) are connected to the respective header
pin. All other solder pads are isolated from each other. The entire
through-hole array is provided for permanent or semi-permanent circuit
design.

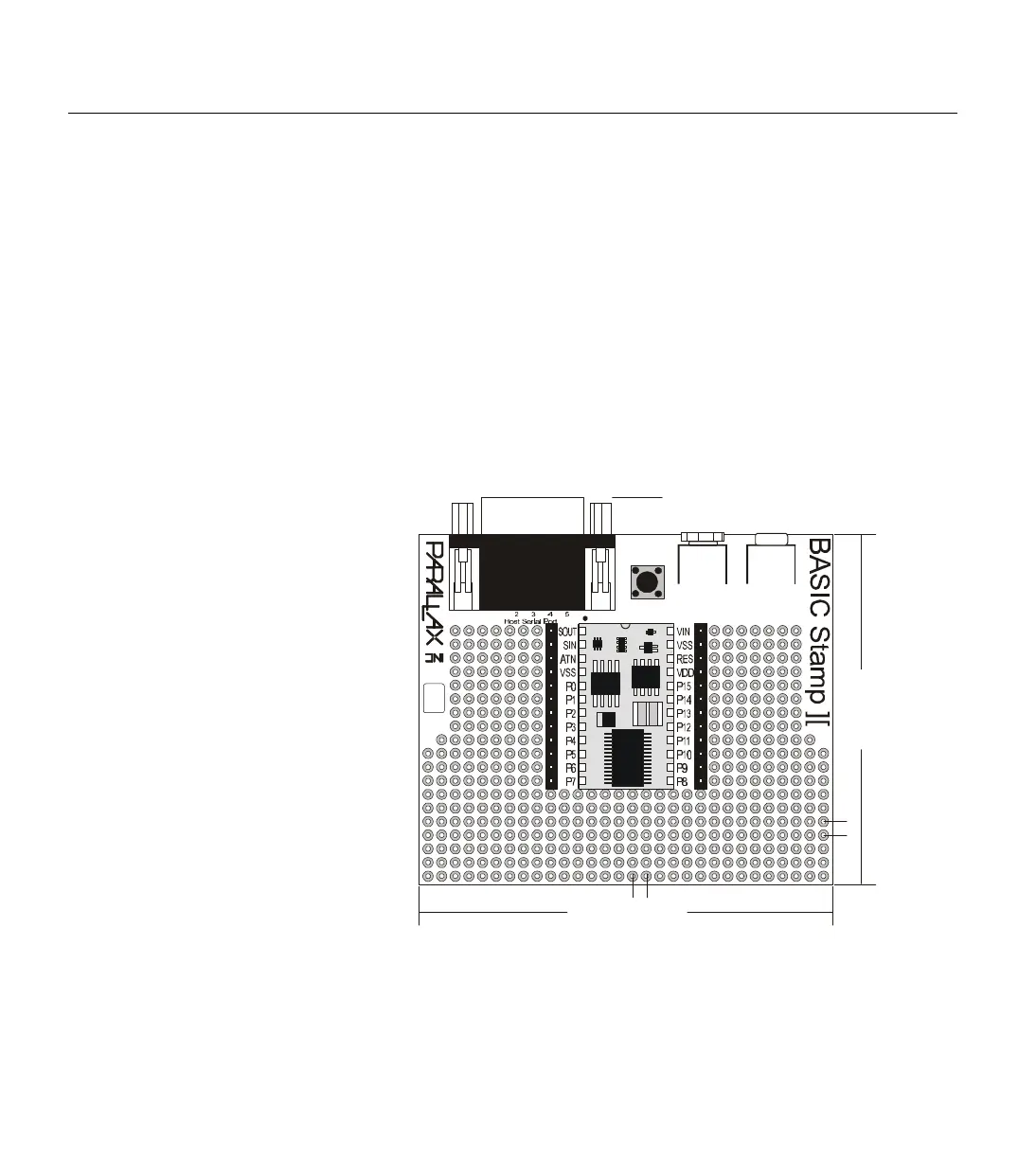

Figure 1.13: BASIC Stamp 2
Carrier Board (Rev. B) (shown with
BS2-IC properly inserted) (27120)
BS2-IC
©1995 REV B
TM
Reset
0.1“ (2.54 mm)
0.1“ (2.54 mm)
2.6“ (65 mm)
3.2“ (81 mm)
0.25“ (6 mm)
