Appendix: Cleaning the chute
Parts

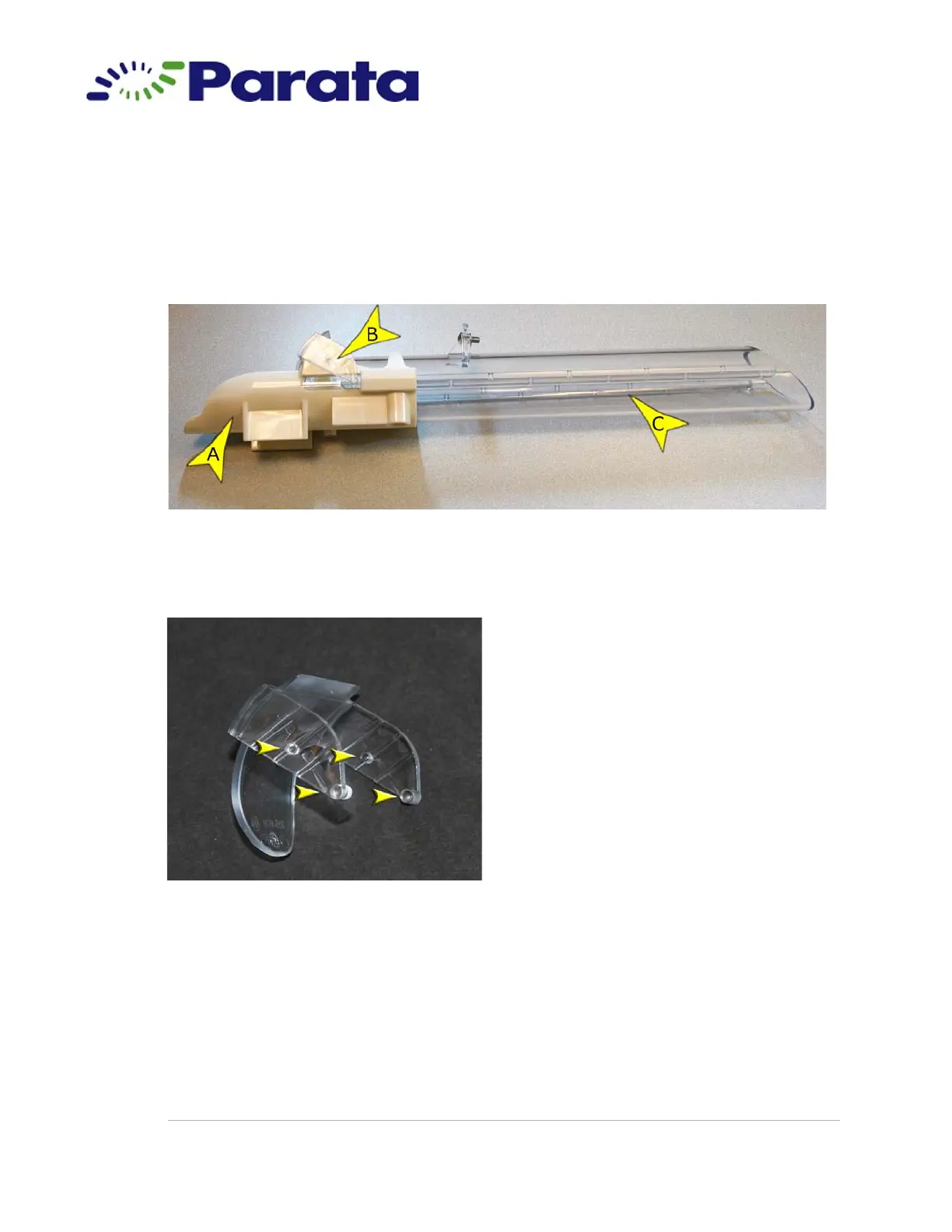

The chute assembly consists of three parts: the dispense chute (A), the door (B), and the
tube (C).
There are four (4) pins on the inside of the door “arms” that connect the assembly parts.
The two (2) pins at the ends of the arms connect the door to the tube. The two (2) pins in
the center of the arms connect the door to the dispense chute.
