HPAC Cell Cleaning
©2015 Parata Systems, LLC page 37 of 40 Parata Technical Assistance Center
120-0465 Rev 03 1-888-PARATA1 (727-2821)

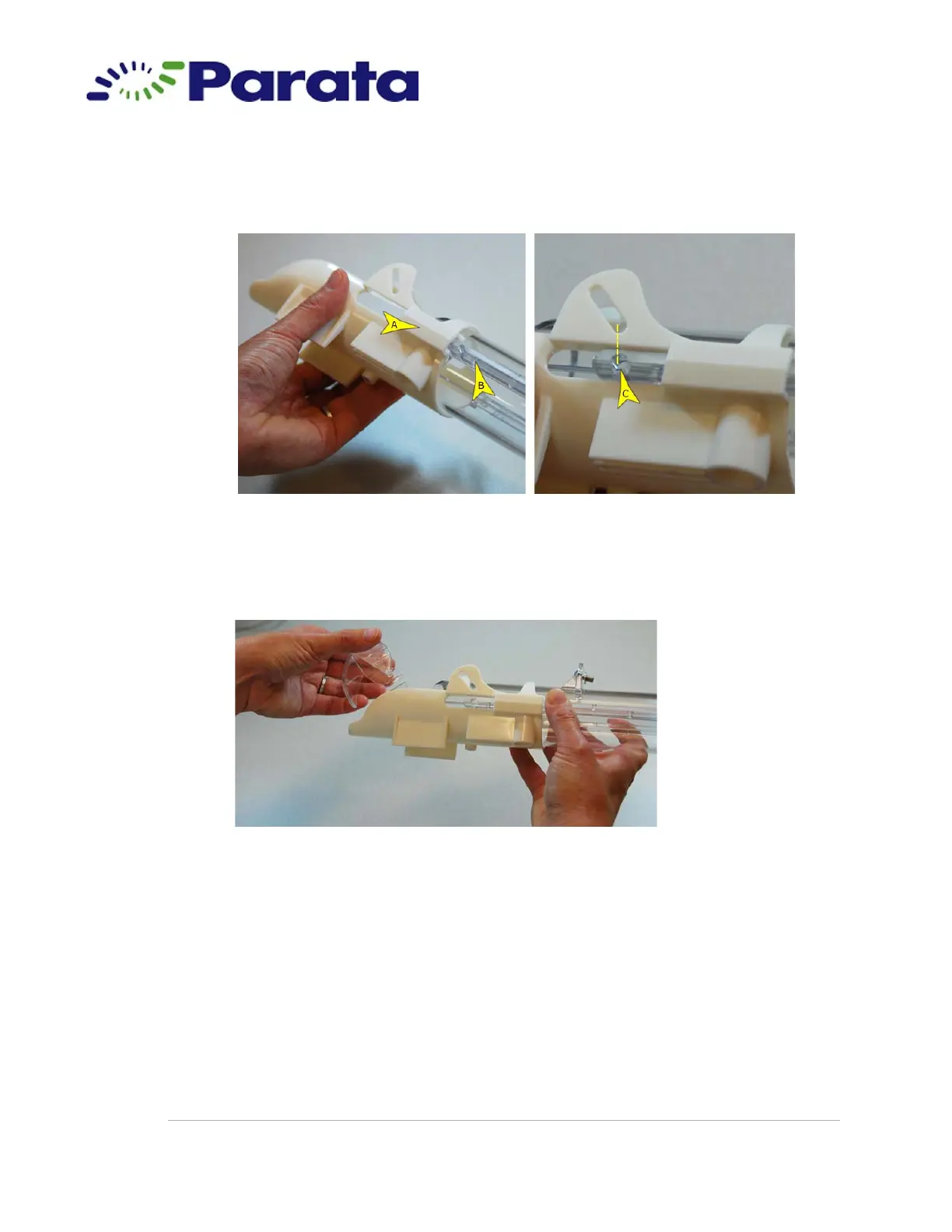

4.2 Insert the rails on the tube (B) into the channels on the dispense chute (A). Slide
the tube forward until the hole in the rail lines up with the lower end of the
angled slot (C) in the dispense chute.
Step 4.2
4.3 Hold the door in your dominant hand with the curved section pointed down and
toward your palm. Hold the chute assembly in your other hand.
Step 4.3
4.4 Set the door on the assembly with one arm on each side of the chute.
To Next Page
