the DEC setting, wait until moves have stopped, then sets the Kill All
Moves flag. The Stop All Moves flag will clear after this sequence is
complete and acknowledged by the processor.
Flag Comparison

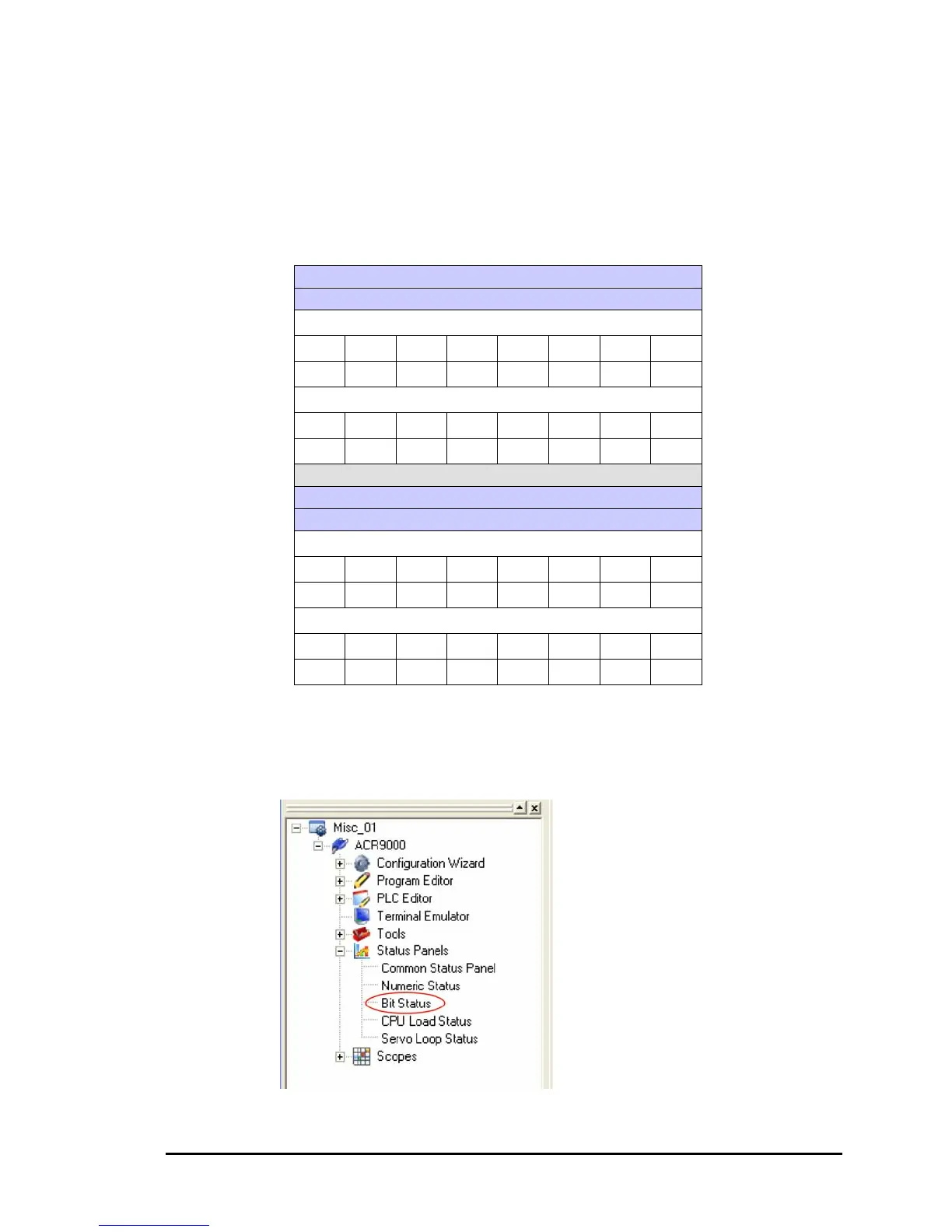

The following table shows the bit numbers for Kill All Motion Request
axis flags, and the bit numbers for Kill All Moves masters flags.
Kill All Motion Request
Quaternary Axis Flags
Axis Number
0 1 2 3 4 5 6 7
8467 8499 8531 8563 8595 8627 8659 8691
Axis Number
8 9 10 11 12 13 14 15
8723 8755 8787 8819 8851 8883 8915 8947
Kill All Moves
Master Flags
Master Number
0 1 2 3 4 5 6 7
522 554 586 618 650 682 714 746
Master Number
8 9 10 11 12 13 14 15
7434 7466 7498 7530 7562 7594 7626 7658
Bit Status Window Comparison
Locate the Bit Status Panel by clicking on the plus sign (+) next to
Status Panels on the tree in ACR-View, and clicking on Bit Status.
