LED
LED flashing signals of the valve electronics
Closer information can be can be displayed via
the ProPxD Parametrier software.
Error code
(additive)
Error description
0 no errors
1 over current
2 cable break command signal
4 cable break feedback signal
8 undervoltage error
16 bus communication error
32 hardware failure
Error code
Color State Description
green
approx. 0.5 Hz
(slowly, green)
enable valve OK
green
approx. 1 Hz
(fast, green)
disable valve OK
green
approx. 10 Hz
(very fast, green)
valve error
Throughout parametrizing work it is respon-
sible to ensure that there is no risk of explo-
sion.
The cover plug M20x1.5 mm has to be re-
installed after completion of the parametriz-
ing work. Only use original IECEx certied
screw plug according to EN 60079-1 and
tighten with 16 Nm.
Before commissioning the tightening torque
and tightness must be checked.

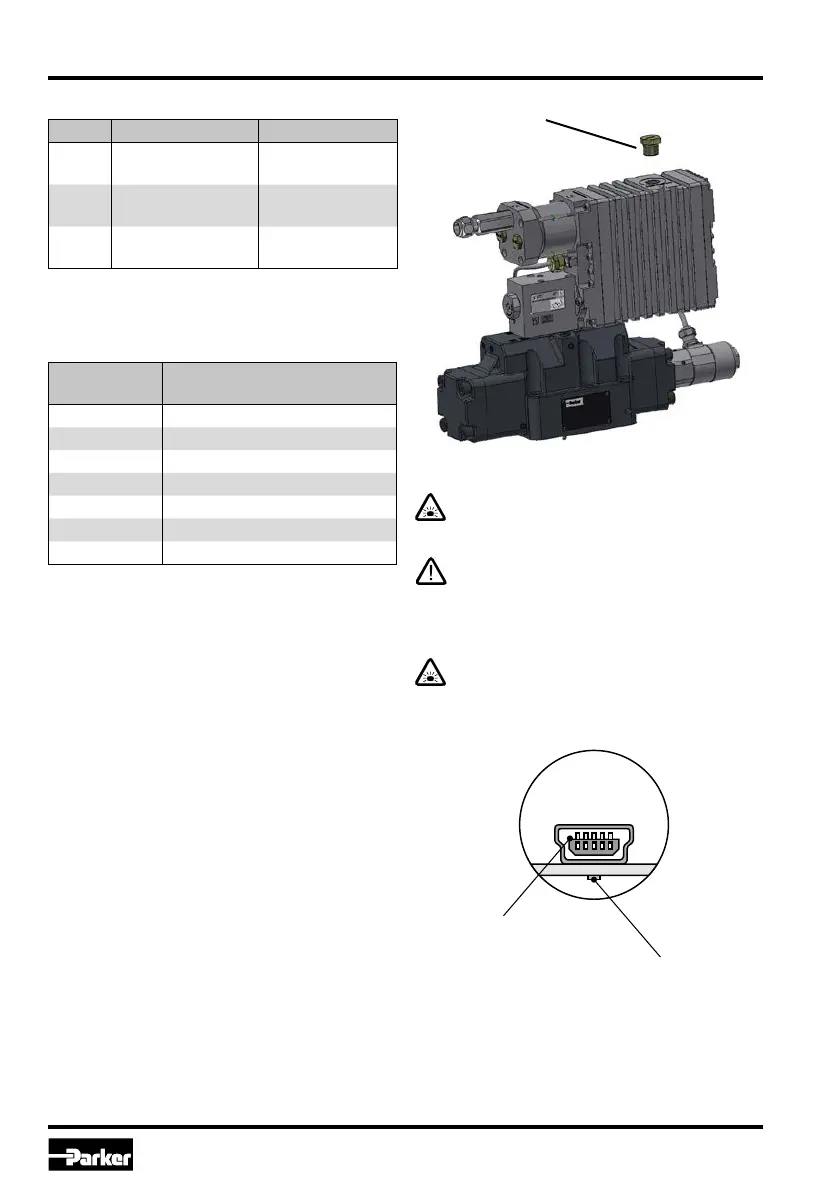

LED status indication
RS232C Interface
LED of the valve
electronics
