Appendix A – Specifications
55
Dimensions

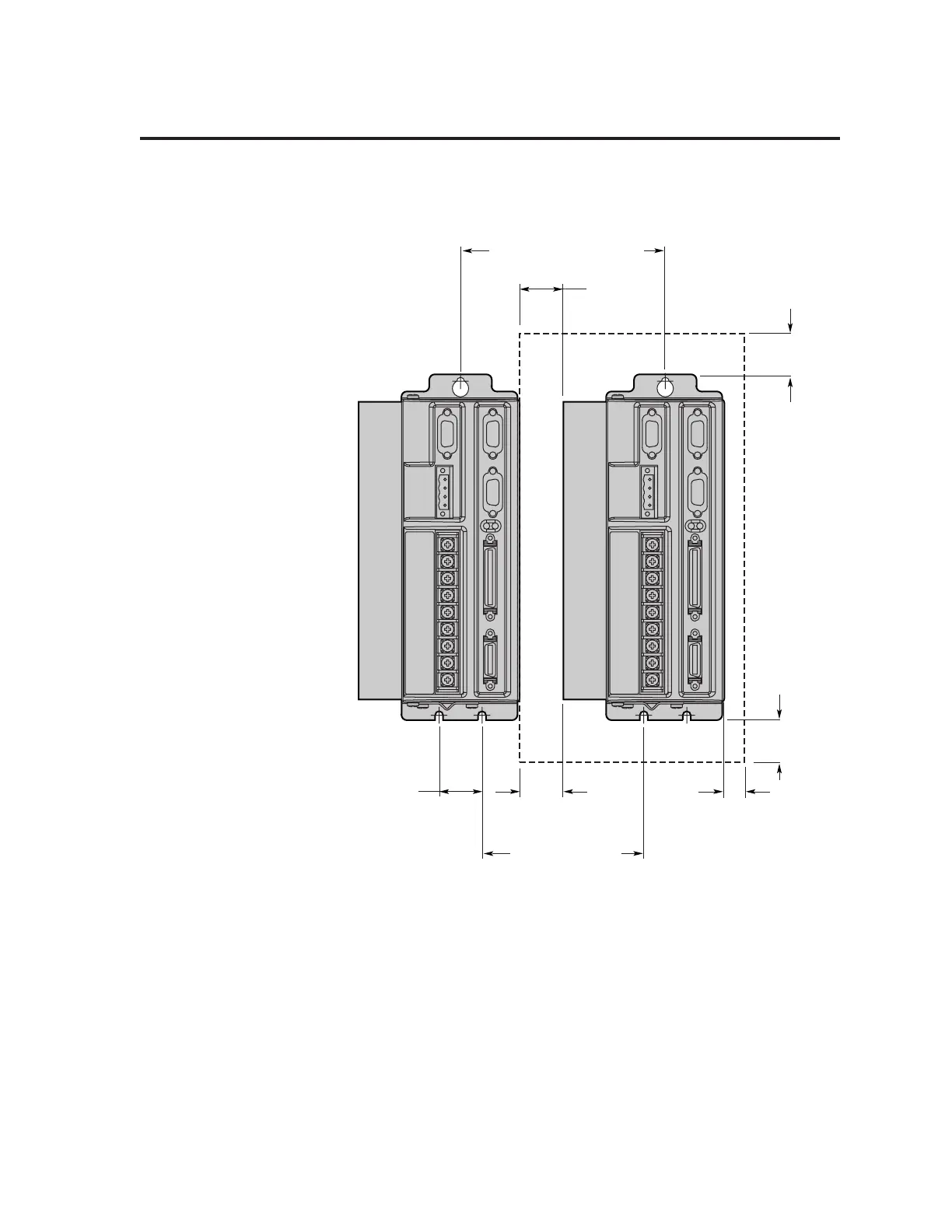

Panel Layout Dimensions
1.00
(25.4 )
1.00
(25.4 )
MINIMUM
CLEARANCE
1.00
(25.4 )
MINIMUM
CLEARANCE
1.00
(25.4 )
MINIMUM
CLEARANCE
0.50
(25.4 )
MINIMUM
CLEARANCE
1.00
(25.4 )
MINIMUM
CLEARANCE
NOTE: Provide proper spacing
to maintain minimum clearance
between drives.
NOTE: Provide proper
spacing to maintain
minimum clearance
between drives.
Dimensions in
inches (mm)
Panel Layout Dimensions
