Gemini GT6 Hardware Installation Guide
Gemini GC-50 – 50 Pin Connector
The Gemini GC-50 is a 50 pin breakout module that connects directly to the 50 pin
DRIVE I/O connector. Dimensions are shown below.
CAUTION
Connect wires to the GC-50
before
installing it in the Gemini drive. This will avoid
damage that may be caused by wiring the GC-50 while it is attached to the drive.

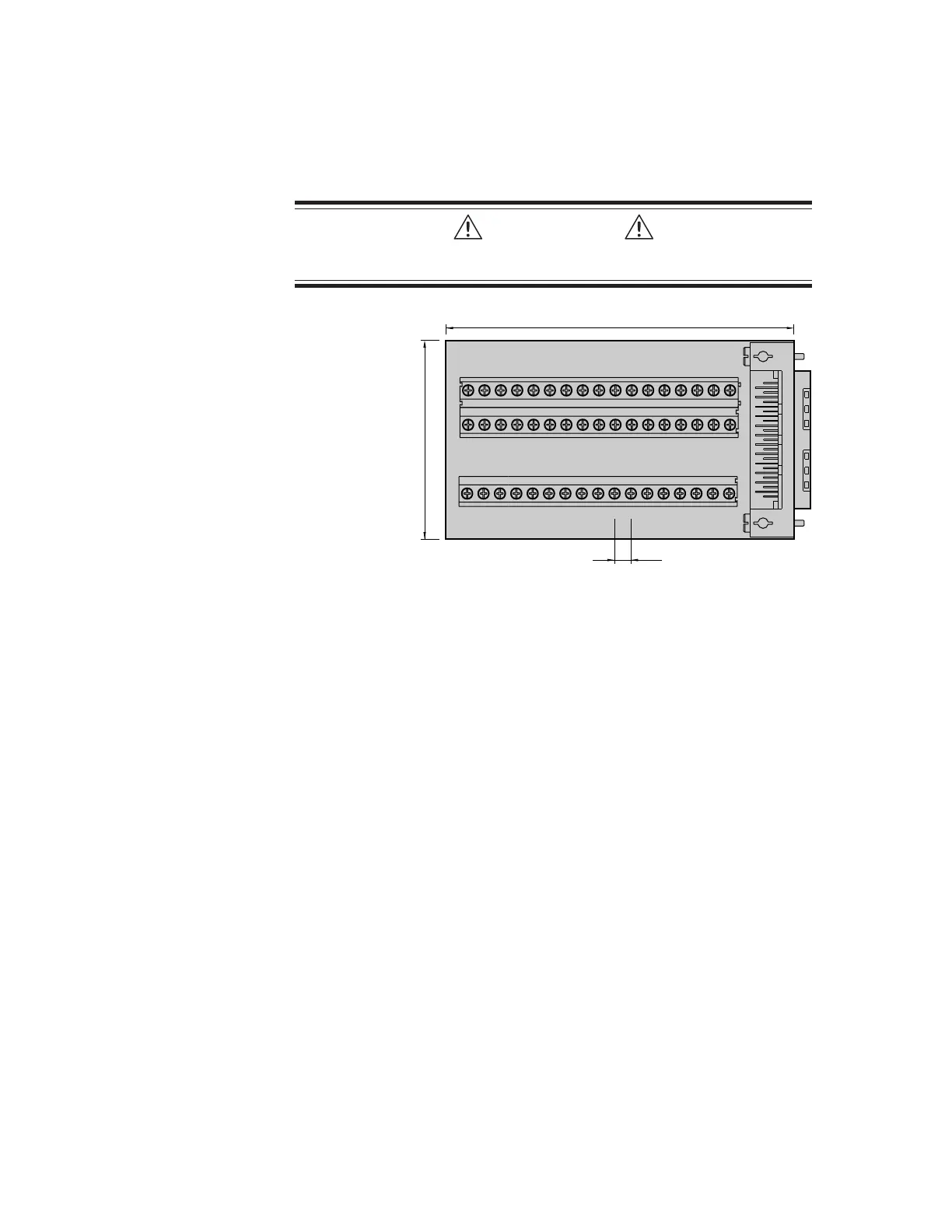

Dimensions in inches (millimeters)
GC-50
12 4
1918 20 21 22 302423 2625 2827 29 343231 33
131210 11 171614 15953867
35 3736 3938 474140 4342 4544 46S4948 50
3.05 (77.5)
2.13 (54.0)
0.138 (3.5)
GC-50 Dimensions
