Parker GT Series User Manual

14 Gemini GT Hardware Installation Guide
System Overview
In this express setup procedure, we will give instructions for a Compumotor
system—Gemini drive with Compumotor motor, Compumotor cables, and
Compumotor 6K controller.
If you use non-Compumotor equipment, try to follow along and perform the steps
in the Express Setup procedure; consult Appendix A Specifications for additional
information you may need.

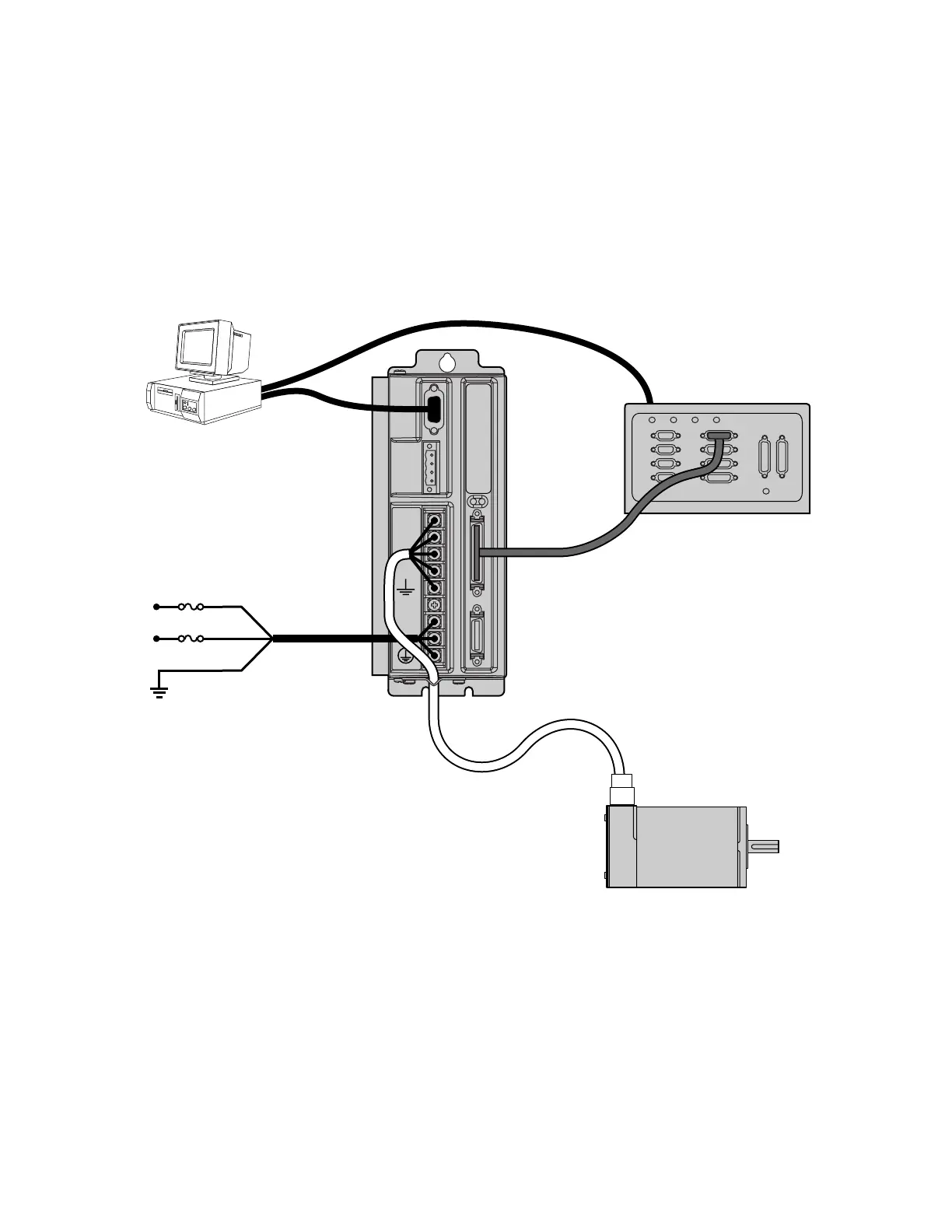

The next drawing shows the components of a Compumotor system.
6K Controller
RS-232/485
Cable
RS-232/485
Cable
Drive I/O Cable
Motor
Cable
Gemini
Drive
Motor
AC
Power
Compumotor System
If you use a Compumotor controller other than the 6K, see Appendix A Specifica-
tions for wiring instructions.
