Service/Spare Parts Manual
Series V12
MSG30-5506-M1/UK
19
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden

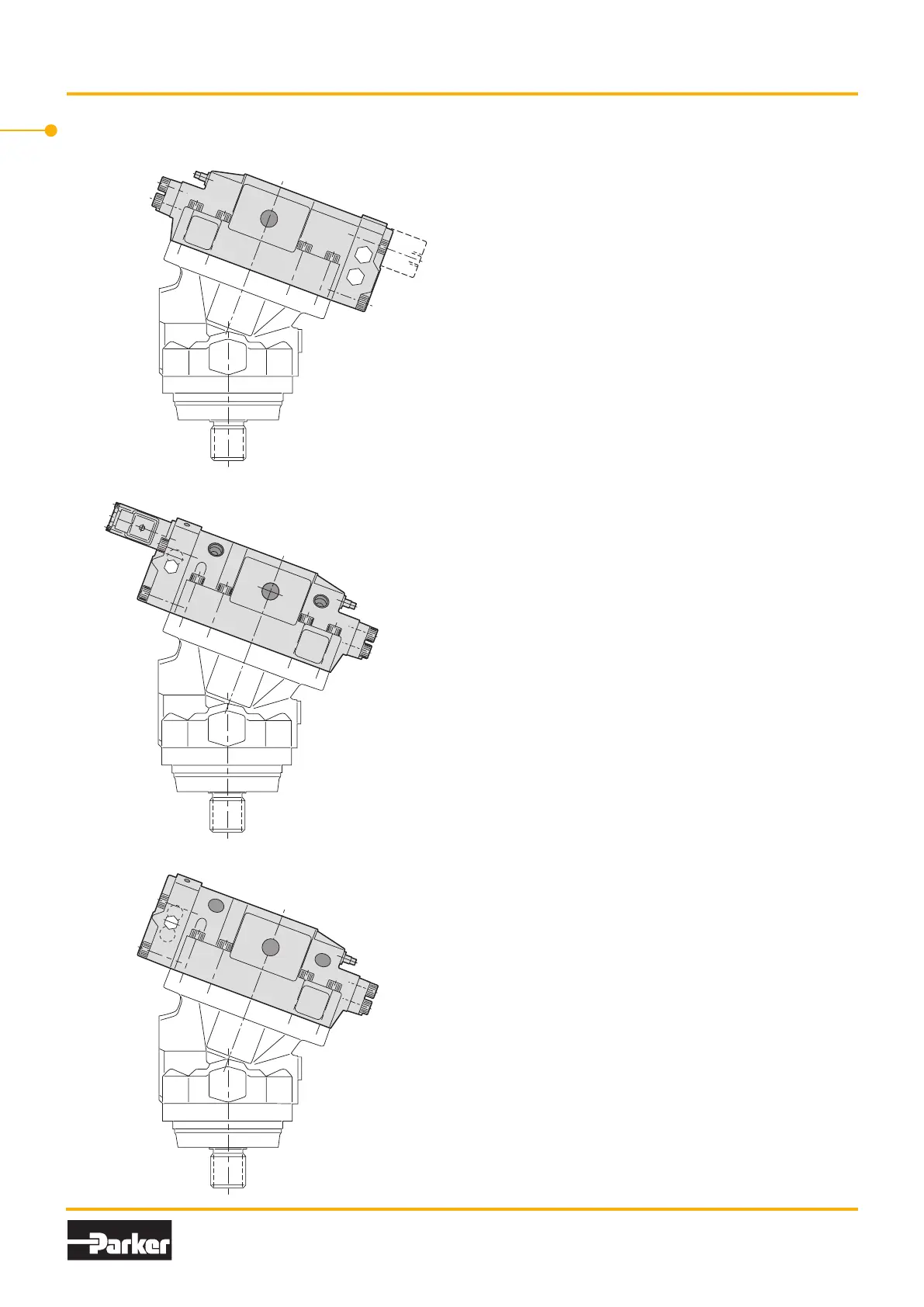

End Cap location
End Cap location
AC and AH control shold be assembled with the control
cover at the maximum side.
EO and EP control shold be assembled with the control
cover at the minimum side.
HO and HP control shold be assembled with the control
cover at the minimum side.
Maximum
side
Maximum
side
Maximum
side
Minimum
side
Minimum
side
Minimum
side
