Parker V12 Series User Manual

Service/Spare Parts Manual
Series V12
MSG30-5506-M1/UK
3
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
V12 Frame size 60 80
Displacement (cm
3
/rev)
at 35° (max) 60 80
at 6,5° (min) 12 16
Operating pressure (bar)
max intermittent
1)
480 480
max continuous 420 420
Operating speed (rpm)
max intermittent at 35°
1)
4700 4300
max continuous at 35° 4100 3700
max intermittent at 6.5° – 20°
1)
7900 7200
max continuous at 6.5° – 20° 6900 6300
min continuous 50 50
Flow (l/min)
max intermittent
1)
282 344
max continuous 246 296
Output torque (Nm) at 100 bar (theor.) 95 127
Max output power (kW)
max intermittent
1)
170 205
Corner power (kW)
max intermittent
1)
380 460
continuous 290 350
Mass moment of inertia (x10
-3
) [kg m
2
] 3.1 4.4
Weight (kg) 28 33
Specifications

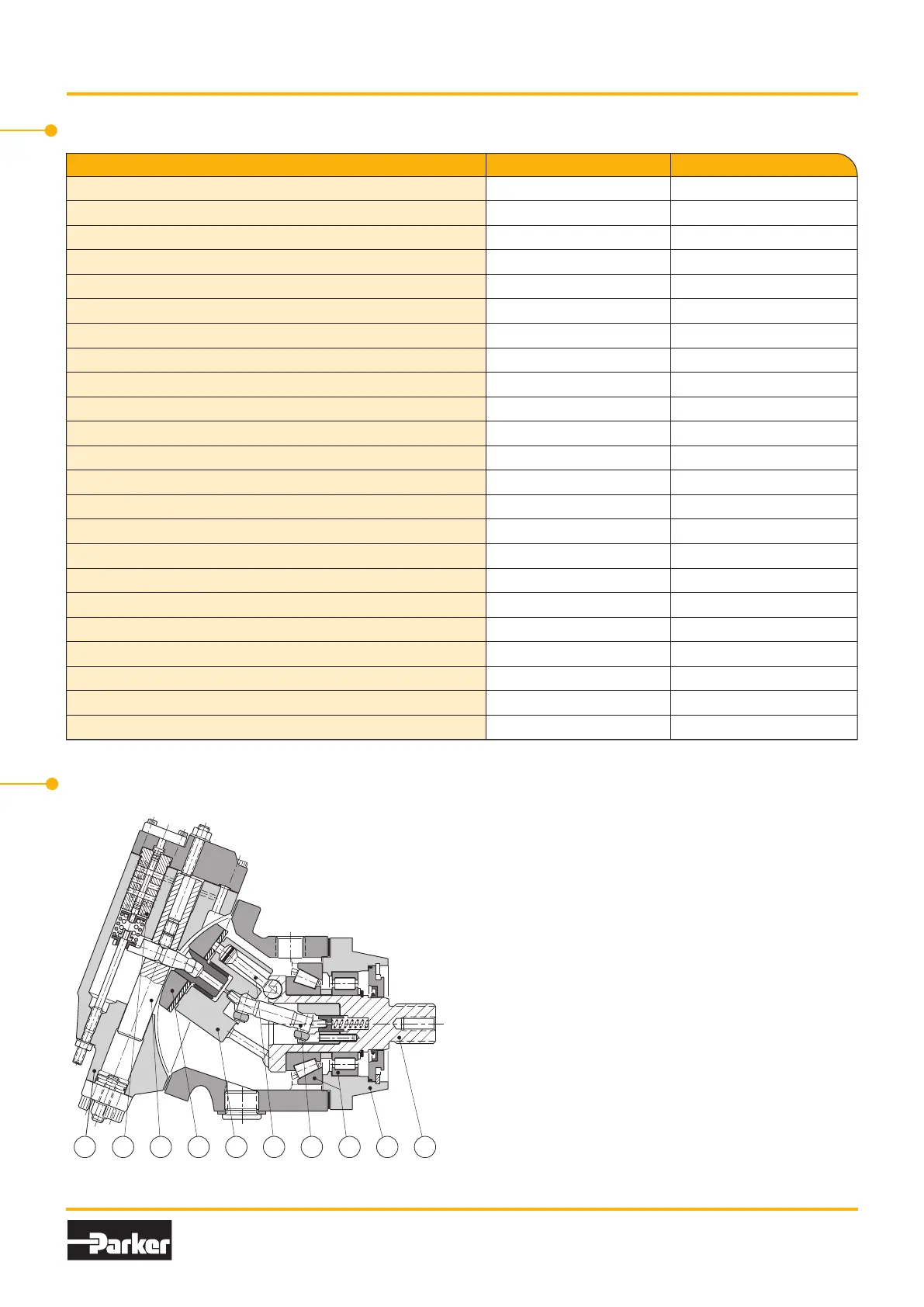

V12 cross section
3
Parker Hannin
PumpandMotorDivision
Trollhättan,Sweden
ServiceManual
Series V12
HY30-5506-M1/UK
Specications
V12framesize
Displacement[cm³/rev]
at35°(max)
at6,5°(min)
Operating pressure[bar]
 maxintermittent¹
)
maxcontinuous
Operating speed[rpm]
maxintermittentat35°¹
)
maxcontinuousat35°
maxintermittentat6.5°-20°¹
)
maxcontinuousat6.5°-20°
   mincontinuous
Flow[l/min]
maxintermittent¹
)
maxcontinuous
Output torque[Nm]
at100bar(theor.)
Max output power[kW]
maxintermittent¹
)
Corner power[kW]
maxintermittent¹
)
 continuous
Mass moment of inertia
(x10
-3
)[kgm
2
]
Weight[kg]
60
12
480
420
4700
4100
7900
6900
50
282
246
95
170
380
290
3.1
28
60
¹
)
Max6secondsinanyoneminute.
80
16
480
420
4300
3700
7200
6300
50
344
296
127
205
460
350
4.4
33
80
12345678910
1. Endcap
2. Servocontrolvalve
3. Settingpiston
4. Valvesegment
5. Cylinderbarrel
6. Sphericalpistonwith
 laminatedpistonring
7. Synchronizingshaft
8. Heavy-dutyrollerbearings
9. Bearinghousing
10. Outputshaft
V12 cross section
1. End cap
2. Servo control valve
3. Setting piston
4. Valve segment
5. Cylinder barrel
6. Spherical piston with laminated piston ring
7. Synchronizing shaft
8. Heavy-duty roller bearings
9. Bearing housing
10. Output shaft
Specifications
1)
Max 6 seconds in any one minute
