Parker V12 Series User Manual

Service/Spare Parts Manual
Series V12
MSG30-5506-M1/UK
23
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden

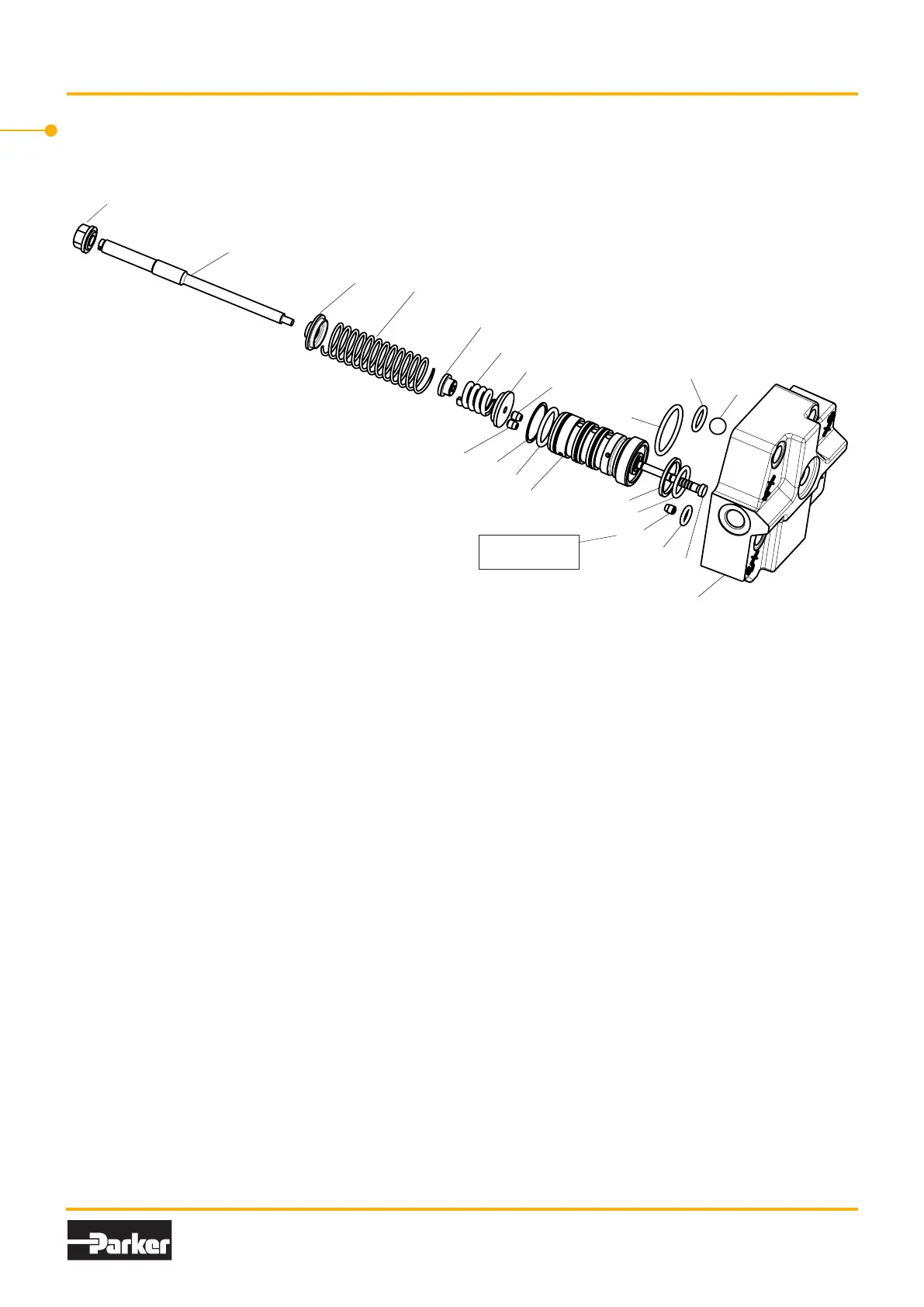

Split View/Spare parts Control
Splitview/Spare parts Control
21
Parker Hannin
PumpandMotorDivision
Trollhättan,Sweden
ServiceManual
Series V12
HY30-5506-M1/UK
Item Title Benämning
701 Nozzle  Munstycke
703 Nozzle  Munstycke
705 Nozzle  Munstycke
711 ControlCover  Regulatorlock
719 O-Ring  O-Ring
720 SupportRing  Stödring
729 O-Ring  O-Ring
735 ValveCone  Ventilkägla
736 ValveGuide  Ventilsäte
737 O-RingwithSupportRing  O-RingmedStödring
771 ValveSleeve  Ventilfoder
772 ValveSpool  Ventilslid
774 PistonRing  Lamellring
775 O-Ring  O-Ring
781 ModulatingSpring  Tryckfjäder
782 ThresholdSpring  Tryckfjäder
783 SpringSeat  Fjädersäte
784 SpringSeat  Fjädersäte
785 SpringGuide  Fjädersäte
791 AdjustingScrew  Ställskruv
793 SealingNut  Tätmutter
705
791
785
781
784
782
775
783
774
701
717
771
737
711
703
729
772
720
Assembledin
theendcap
719
793
General Parts Control
Pos. Description Qty Remarks
701 Nozzle 1 Nozzle kit
703 Nozzle 1 Nozzle kit
705 Nozzle 2 Nozzle kit
711 Control Cover 1
719 O-Ring 1 Valve sleeve kit
720 Support Ring 1 Valve sleeve kit
729 O-Ring 1 Seal kit
737 O-Ring with Support Ring 4 Seal kit
771 Valve Sleeve 1 Valve sleeve kit
772 Valve Spool 1 Valve sleeve kit
774 Piston Ring 9 Valve sleeve kit
775 O-Ring 1 Valve sleeve kit
781 Modulating Spring 1 Adjusting kit
782 Threshold Spring 1 Adjusting kit
783 Spring Seat 1 Adjusting kit
784 Spring Seat 1 Adjusting kit
785 Spring Guide 1 Adjusting kit
791 Adjusting Screw 1 Adjusting kit
793 Sealing Nut 1 Adjusting kit
