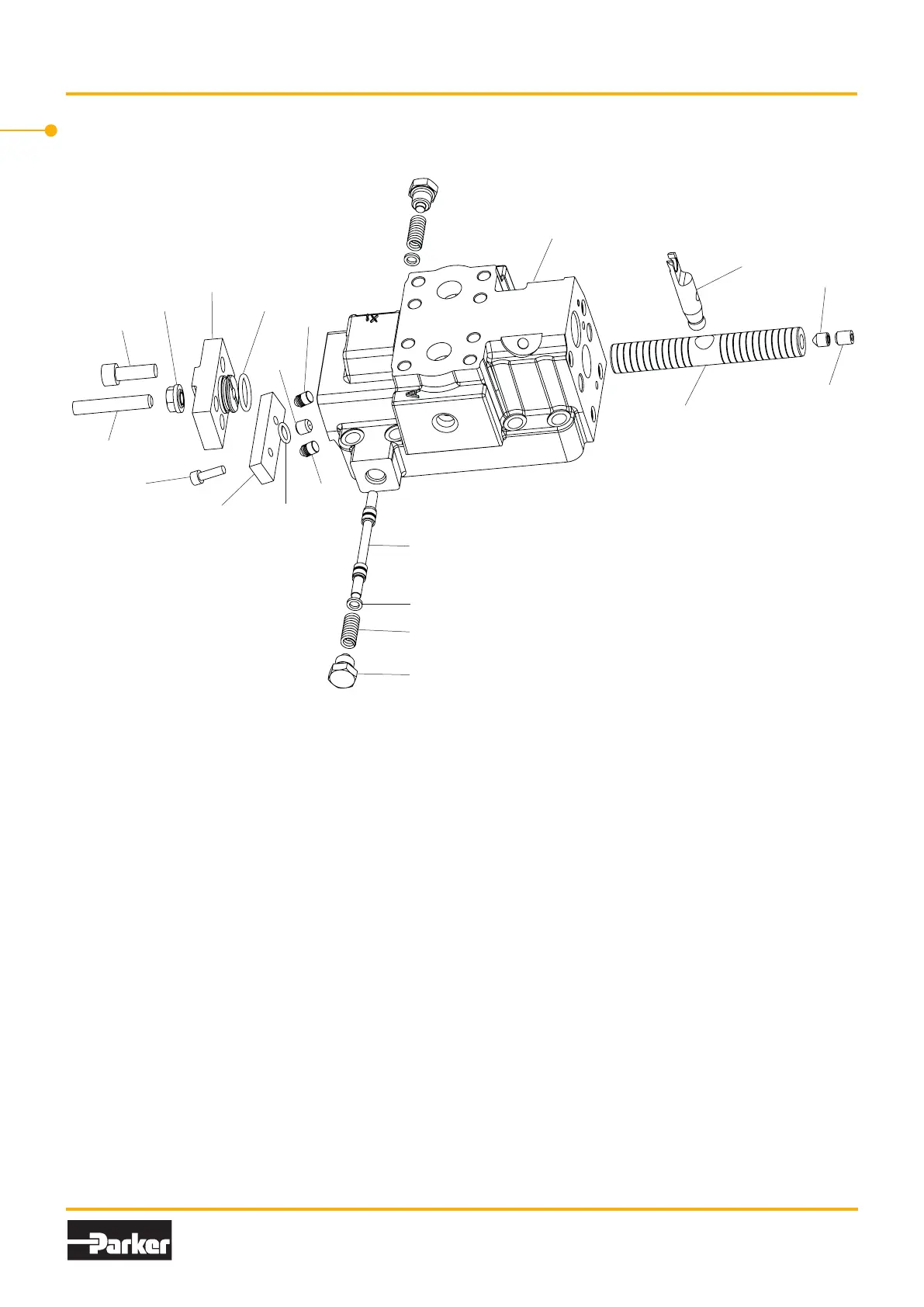

Split View/Spare parts End cap
Splitview/Spare parts End Cap
20
Parker Hannin
PumpandMotorDivision
Trollhättan,Sweden
ServiceManual
Series V12
HY30-5506-M1/UK
General Parts End Cap
Item Title Benämning
111 EndCap  Anslutningsblock
121 Cover  Lock
122 SetScrew  Ställskruv
123 SealNut  Tätmutter
125 O-Ring  O-Ring
126 HexSocketScrew  Insexskruv
133 SettingPiston  Ställkolv
134 SetScrew  Stoppskruv
135 SetScrew  Stoppskruv
136 CompanionPin  Medbringartapp
822 Shuttle  Spolkolv
823 Washer  Bricka
824 CompressionSpring  Tryckfjäder
825 HexagonPlug  Sexkantpropp
835 Nozzle  Munstycke
841 ProtectiveCover  Skyddslock
842 HexSocketScrew  Insexskruv
843 O-Ring  O-Ring
844 ExpandingPlug  Expanderplugg
111
133
822
823
824
825
835
844
843841
842
125
121
123
122
126
844
135
134
136
Pos. Description Qty Remarks
111 End Cap
121 Cover 1 Displacement setting kit
122 Set Screw 1 Displacement setting kit
123 Seal Nut 1 Displacement setting kit
125 O-Ring 1 Displacement setting kit
126 Hex Socket 4 Displacement setting kit
133 Setting Piston 1 Displacement setting kit
134 Set Screw 1 Displacement setting kit
135 Set Screw 1 Displacement setting kit
136 Companion Pin 1 Displacement setting kit
822 Shuttle 1 Flushing valve kit
823 Washer 2 Flushing valve kit
824 Compression Spring 2 Flushing valve kit
825 Hexagon Plug 2 Flushing valve kit
835 Nozzle 1 Flushing valve kit
841 Protective Cover 1 Flushing valve kit
842 Hex Socket Screw 2 Flushing valve kit
843 O-Ring 1 Flushing valve kit
844 Expanding Plug 2 Flushing valve kit
