3
8
24
25
26
17
18
19
20a
21a
PROXIMITY SWITCH
WIRING SCHEMATIC
PNP WIRING CONNECTION
DC 10-30V
(BLUE)
(BLACK)
(BROWN)
LOAD
+
-
SWITCH
Switch is fully encapsulated.
DC 10-30V
(BLUE)
(BLACK)
(BROWN)
LOAD
+
-
SWITCH
NPN WIRING CONNECTION

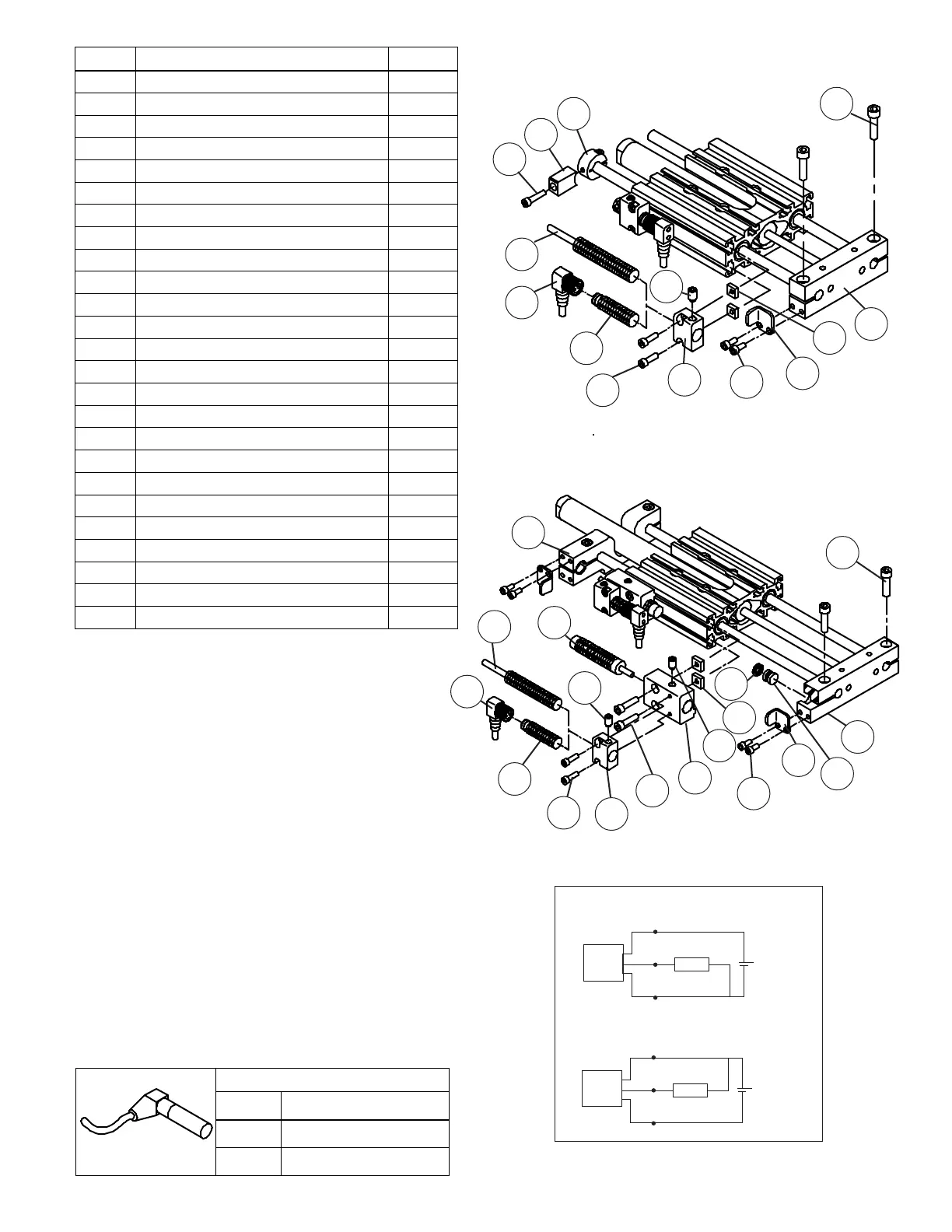

REPLACEMENT PROXIMITY SWITCH
PROXIMITY SWITCH OPTION (P)
WITHOUT SHOCK OPTION (A)
PROXIMITY SWITCH OPTION (P)
WITH SHOCK OPTION (A)
13c
13b
29
18
19
22
30
36
8
17
35
34
38
23
37
21
20
33
22
13
23a
38
37
PROXIMITY SWITCHES (P, N)
Proximity switches sense the extend and retract
positions of the slide. The proximity switch is attached
to the side of the slide, utilizing the square nut "T" slots .
The switch is installed at the factory and does not
require adjustment. Should adjustment be necessary,
care should be taken to insure that the switch does not
come into contact with the load plate. Distance from the
load plate to the switch should be approximately .016
inches.
ELECTRICAL SPECIFICATIONS
Voltage: 10-30 VDC (3 wire) PNP or NPN
Current: 7mA at 24 VDC
Outlet Current: 130mA
Switching Speed: 1000Hz
Switching Distance: Steel = 1.0 mm (0.039 in)
Brass = 0.7 mm (0.028 in)
Aluminum = 0.4 mm (0.016 in)
Plug In Style Switch with Connector
Type Switch Part Number
PNP SWP-1P
M8
NPN SWP-1N
ITEM DESCRIPTION QTY.
8 SOCKET HEAD CAP SCREW 2 or 4
13 LOAD PLATE 1
13b SHOCK LOAD PLATE - FRONT 2
13c SHOCK LOAD PLATE - BACK 2
17 SWITCH ELBOW CONN. 2
18 PROX SWITCH - LEAD TYPE 2
19 PROX SWITCH - PLUG IN 2
20 SOCKET HEAD CAP SCREW 4
20a SOCKET HEAD CAP SCREW 4
21 SWITCH HOUSING w/ SHOCKS 2
21a SWITCH HOUSING w/o SHOCKS 2
22 SET SCREW 2
23 SQUARE NUT 4
23a SQUARE NUT 4
24 STOP COLLAR FOR PROX, FLAG 1
25 PROX FLAG 1
26 SOCKET HEAD CAP SCREW 1
29 SHOCK ABSORBER 2
30 SOCKET HEAD CAP SCREW 4
33 O-RING FOR STOP PAD 2
34 STOP PAD 2
35 SET SCREW 2
36 SHOCK HOUSING 2
37 SOCKET HEAD CAP SCREW 4
38 PROX FLAG 2
