b. Car reader: Verify and read data from the card (ticket) inserted.
c. Thermal printer: Receipt, chit and shift report printing.
d. Coin validator: Identify and sort different coin denominations to separate coin
hoppers, and reject fake coins.
e. Bill validator: Identify accepted denominations and reject fake banknotes.
Optional function to recycle banknotes for change available.
f. Coin hopper module for change: Hoppers to store different coin denominations
and module to dispense coins for change to the receipt and change outlet.
g. Power panel: Input power control and management.

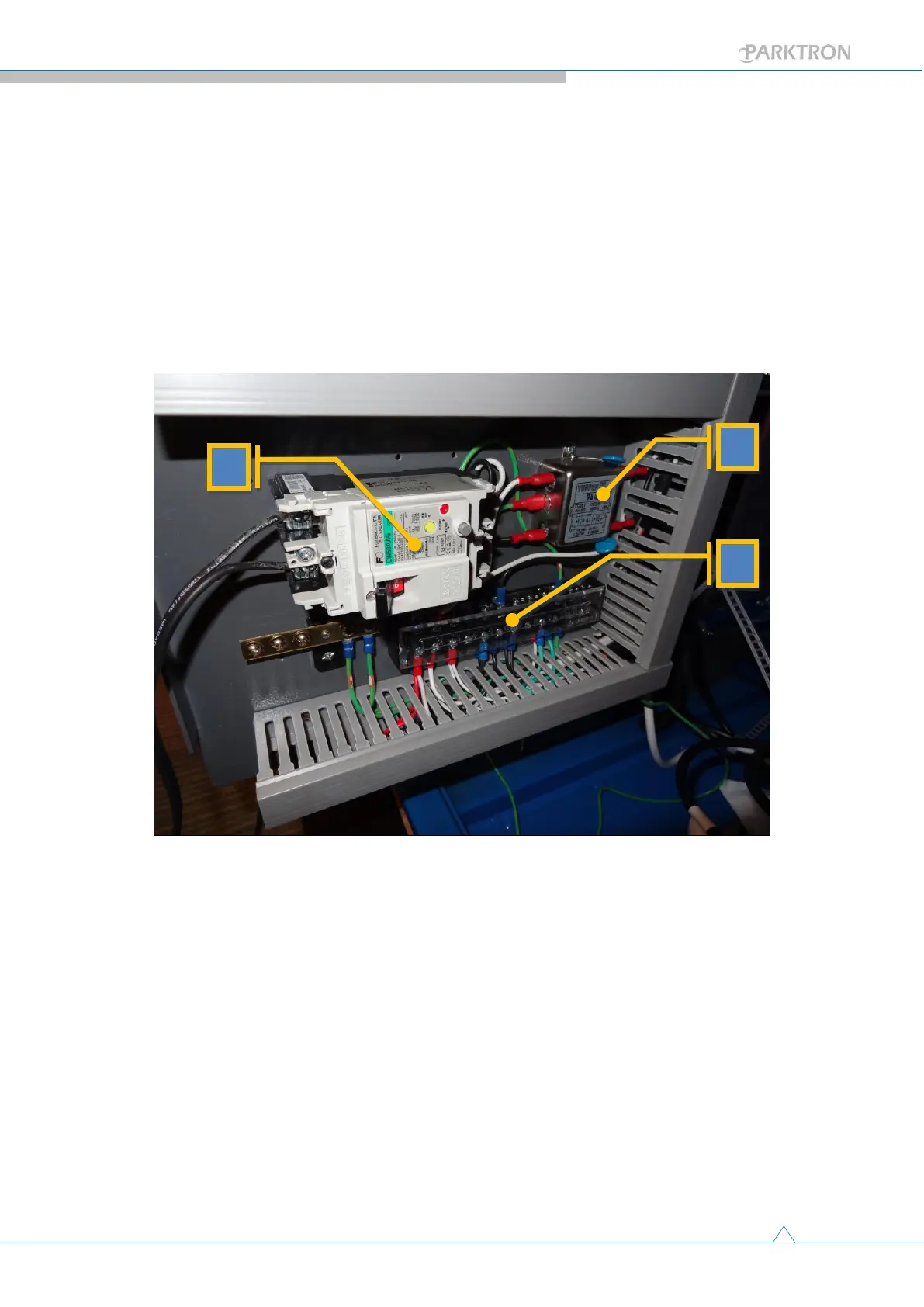

Figure 3
g-1 Circuit breaker: Main power switch of AC input and over current,
leakage protection to the device.
g-2 EMI filter: Filtering power noise to provide a clean power to device.
g-3 Terminal block: Device AC power connection point.
