Alarm Settings

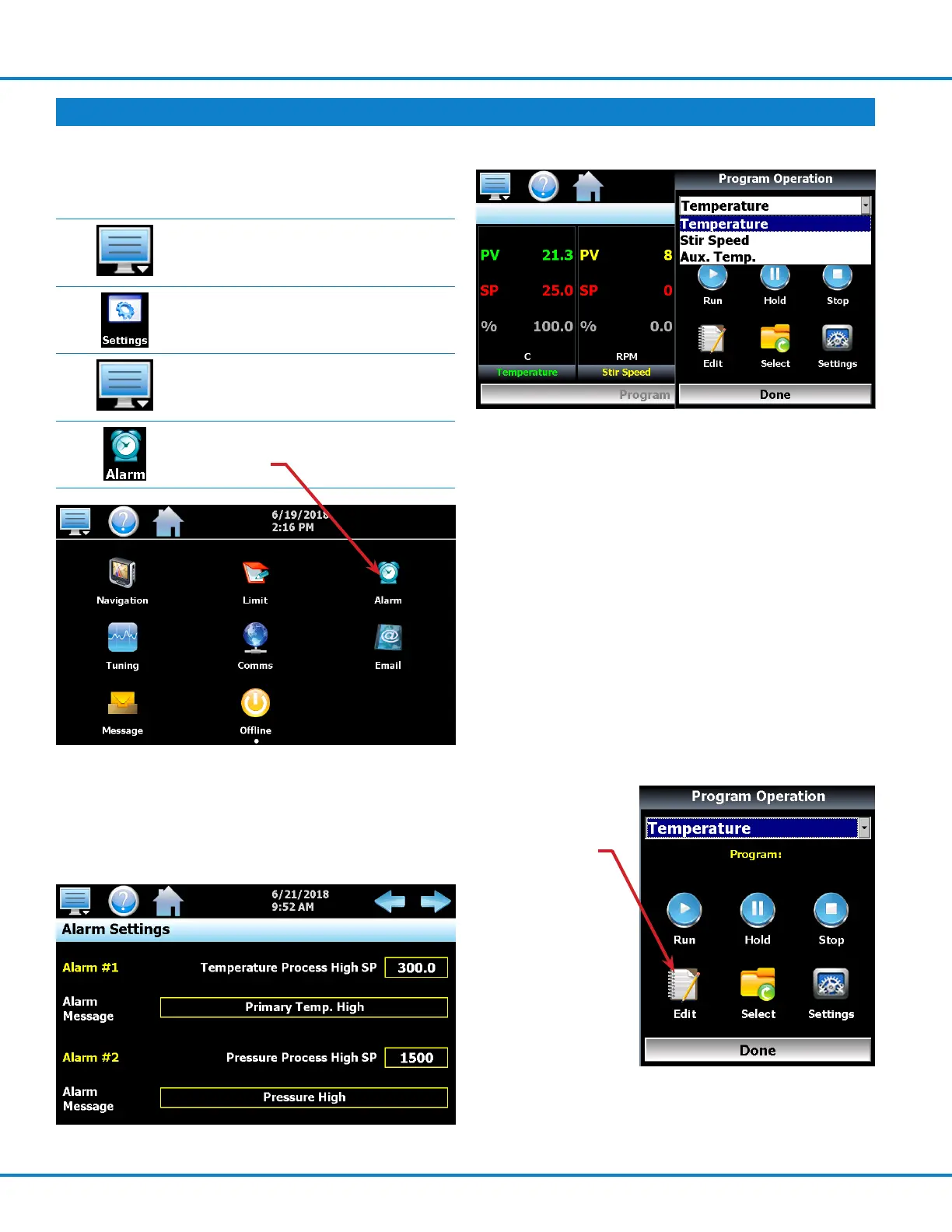

To access Alarm Settings from the main screen,
select the following:
1.
Select the Display Icon in the icon
bar at the top of the screen
2.
Select the Settings Option from
the main display
3.
Select the Display Icon in the icon
bar at the top of the screen
4.
Select the Alarm Option from the
main display
The Alarm Settings Menu is shown below and can
be adjusted for the Primary Temperature, Pressure,
and Auxiliary Temperature. Use the Navigation
Arrows in the icon bar to scroll between Alarm #1,
#2, and #3.
Program Operation
To access Program Operation, select the Program
Operation button at the bottom of the main display
on the main screen.
Program Operation allows the Temperature Control
Module or the Motor Control Module to be oper-
ated in Automatic Program (ramp and soak) mode.
The module being worked on appears in the drop
box on top of the window.
Temperature Control Module
The Temperature control module screen is shown
below. The Run, Hold, and Stop functions are only
utilized when an Automatic Program (ramp and
soak) is active. During typical setpoint operation
these functions are not used.
To create a
ramp and soak
program, select
the Edit option.
INSTRUCTIONS FOR THE
4848
T REACTOR CONTROLLER (Continued)
To Next Page
