6
Connections
Labeled connections are provided on the rear panel
of the controller.

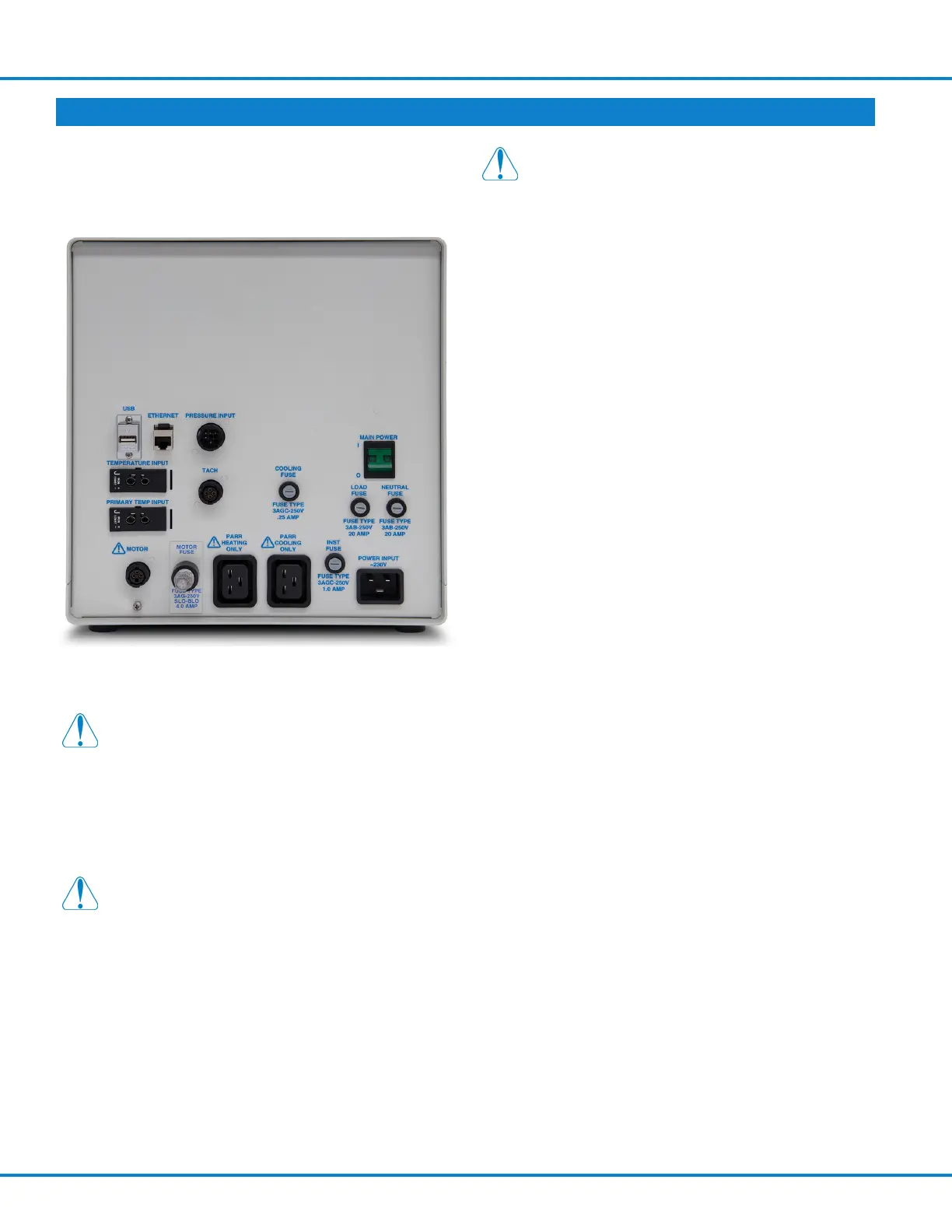

4848T Reactor Controller (230V), Back Side
COOLING
ONLY
The cooling output connector is to be used only
with Company cooling solenoid
valve assemblies supplied with the appropriate
cooling power cord.
HEATING
ONLY
The heating output connector is to be used only
with Company heater assemblies
supplied with the appropriate heater power cord.
MOTOR
The motor output connector is to be used only with
Company motor assemblies sup-
plied with the appropriate motor power cord.
Secure the clamp on motor cord to the controller
with the provided screw next to the motor socket
for safety purposes.
Other appropriate connectors are provided on the
rear panel of the controller.
The PRIMARY TEMP INPUT connection is for the
Primary Temperature Module sensor input.
The TEMPERATURE INPUT connection is for the
Aux Temp sensor input.
The PRESSURE INPUT connection is for the Pres-
sure Module sensor input.
The RPM INPUT connection is for the RPM Module
sensor input.
The USB and ETHERNET connection is for Commu-
nication output.
INSTALLATION
