6.6 Output Config (Analogue Outputs)
The 7300w² monitor leaves the factory without any outputs configured. Outputs can only be configured
after installing the relevant sensor(s) and measurements(s). The default condition is OFF.
Skip this section if you have no requirements for analogue outputs.
The OUTPUT CONFIG menu defines the functions of the 2 analogue
outputs within the monitor and any additional analogue outputs added using
optional Expansion Boxes. Analogue outputs can only be assigned to
configured measurements (M:01 to M:16).
Outputs within the monitor will be shown as “OUTPUT # (M)”, whereas #
denotes analogue output 1 or 2 and (M) denotes the monitor.
Outputs associated with Expansion Boxes will be shown as “OUTPUT #
(E:1)”, whereas # denotes analogue outputs 1 to 8 and (E:1) denotes
Expansion Box 1.

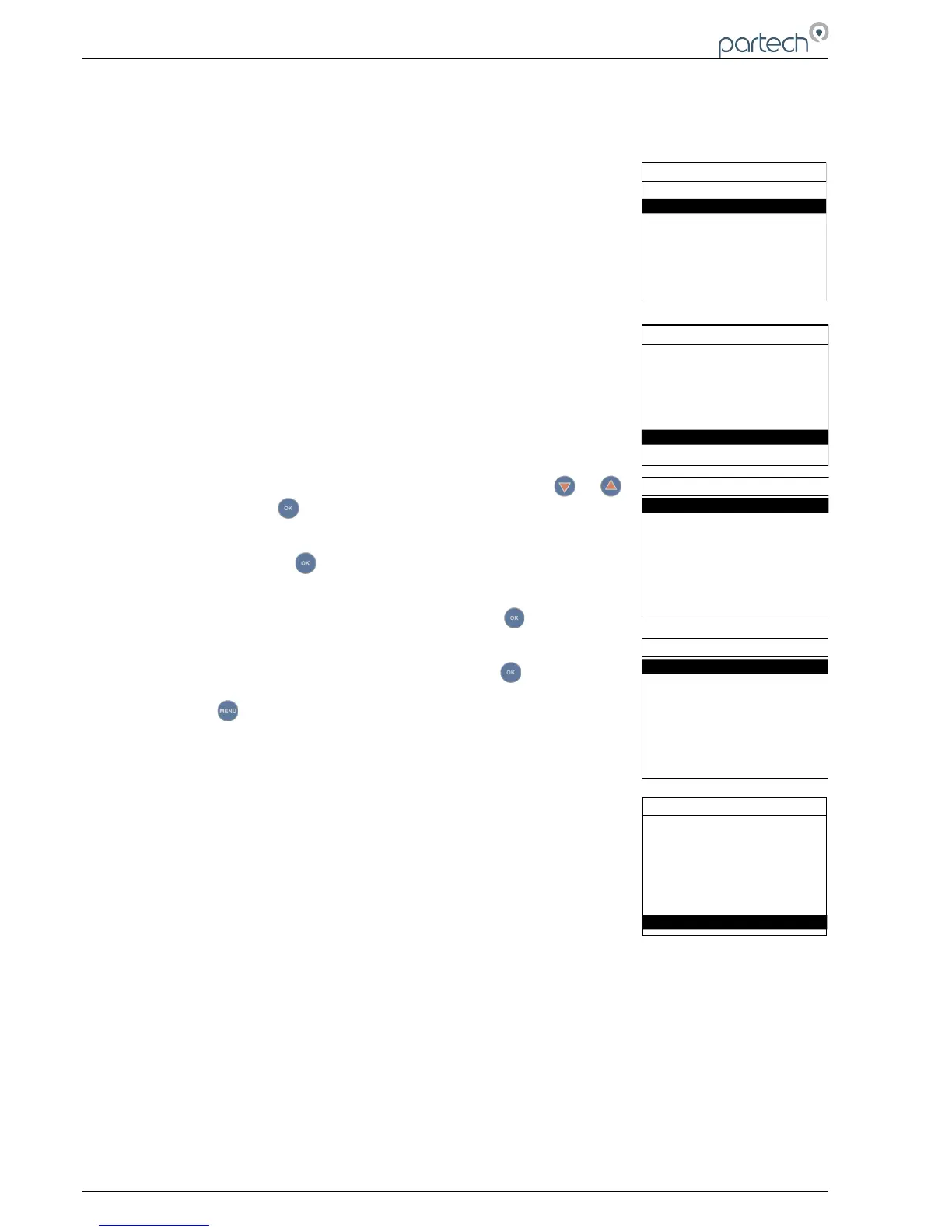

Important: Without a measurement allocated to an output a limited selection
of options will be displayed in Alarm Config. Once a measurement has been
allocated, then a more complete selection will be available. (See
screenshots left)
1. From the MAIN MENU, select OUTPUT CONFIG using or
keys and press .
2. Highlight the analogue output to be configured (e.g. OUTPUT 5 (E:1)
Config) and press .
3. The OUTPUT 5 (E:1) Config menu will now be displayed and
OUTPUT 5 (E:1) Measurement highlighted, press .
4. A list of your previously configured measurements will be displayed.
Highlight the required measurement and press . A tick will be
displayed next to the measurement showing it has been selected.
Press to return back to OUTPUT 5 (E:1) Config menu.
5. The OUTPUT 5 (E:1) Config menu will now display all the options
available to configure the output.
6. Listed below are the descriptions of each option. Configure as
required.
• Measurement: The selected measurement as configured
above.
• Type: Offers the following options:
4-20mA: Gives 4-20mA output signal.
0-20mA: Gives 0-20mA output signal.
OFF: Switches off the Analogue signal.
• 4mA or 0mA: The value entered will be the offset value for the analogue output, e.g. a value of
10mg/l for a 4-20mA signal will configure the output to be 4mA at 10mg/l or a value of 2mg/l for a
0-20mA signal will configure the output to be 0mA at 2mg/l. The default value is zero.
• 20mA: The value entered will be the span value for the analogue output, e.g. a value of 50mg/l
for a 4-20mA signal will configure the analogue to be 20mA at 50mg/l.
• Fault Mode: The fault mode will force the analogue signal to a default state if a fault occurs.
Page 30 of 46 224081IM Issue 22 Issue Date 27/03/2018
MAIN MENU
Monitor Config
Expansion Config
Sensor Config
Measurement Config
Alarm Config
Output Config
Information
OUTPUT CONFIG
Output 1 (M) Config
Output 2 (M) Config
Output Status
OUTPUT 1 (M) CONFIG
Output 1 (M) Measurement
Output 1 (M) Type
Output 1 (M) Info
Output 1 (M) 4mA
Menu with Measurement Allocated
Output 1 (M) 20mA
Output 1 (M) Fault Mode
Output 1 (M) Fault Setup
OUTPUT 1 (M) CONFIG
Output 1 (M) Type
Output 1 (M) 4mA
Bottom of Output Config Menu
Output 1 (M) 20mA
Output 1 (M) Fault Mode
Output 1 (M) Fault Setup
Output 1 (M) Test
Output 1 (M) Test Cycle
OUTPUT 1 (M) CONFIG
Output 1 (M) Measurement
Output 1 (M) Test
Output 1 (M) Info
Output 1 (M) Test Cycle
Menu without Measurement Allocated
