Partner A4-1-K - Page 27

27

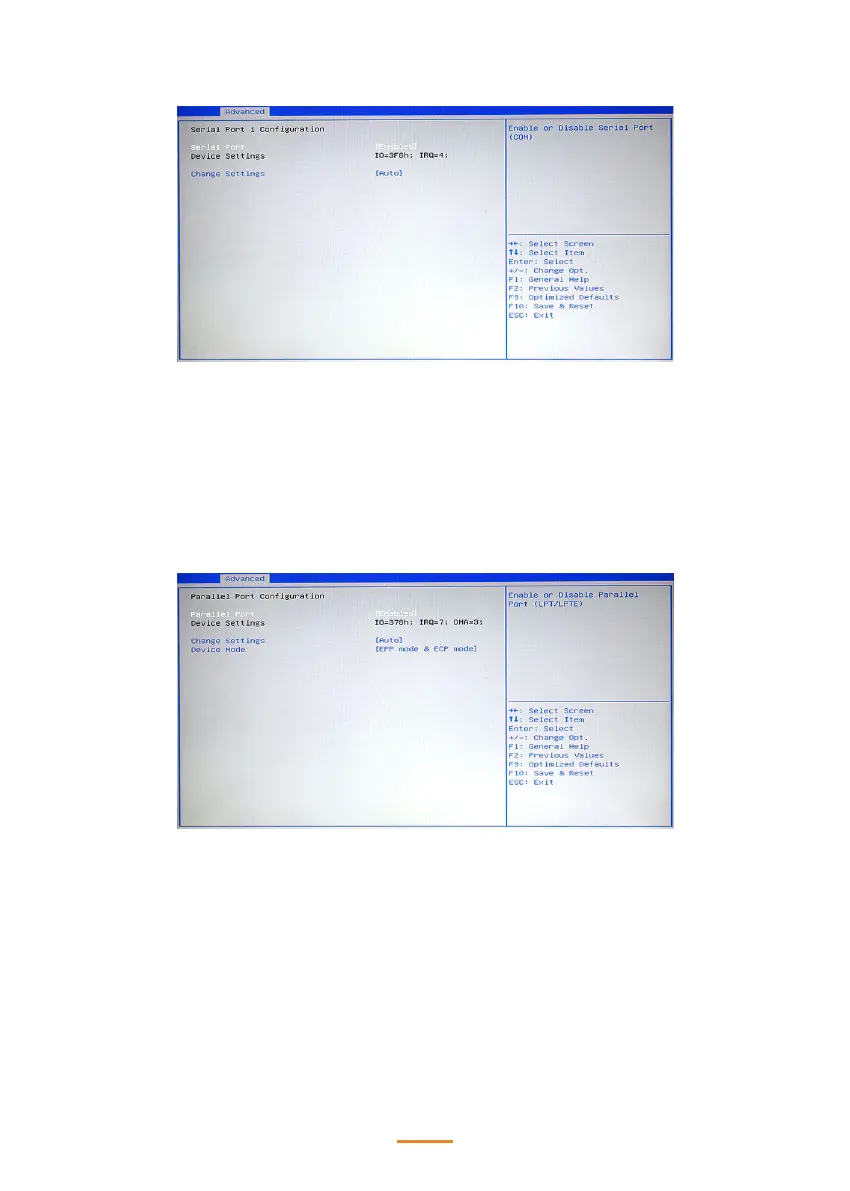

Serial Port X Conguration
Serial Port x
This item allows you to enables or disables a serial port.
Change Settings
This item allows you to specic IO address and IRQ for the serial port.This item allows you to
specic IO address and IRQ.
Parallel Port Conguration
Parallel Port
This item allows you to enables or disables the parallel port.
Change Settings
This item allows you to specic IO address and IRQ for the parallel port.
Device Mode
This item allows you to set the data transfer protocol for the parallel port. There are four options:
Standard Parallel Port Mode, EPP Mode (Enhanced Parallel Port), ECP Mode(Extended Capabilities
Port), and ECP & EPP Mode. The default setting is Standard Parallel Port Mode. Extended
Capabilities Port (ECP) and Enhanced Parallel Port (EPP) are bidirectional modes, allowing both data
input and output. ECP and EPP modes are only supported with EPP- and ECP-aware peripherals.
