I/O connectors

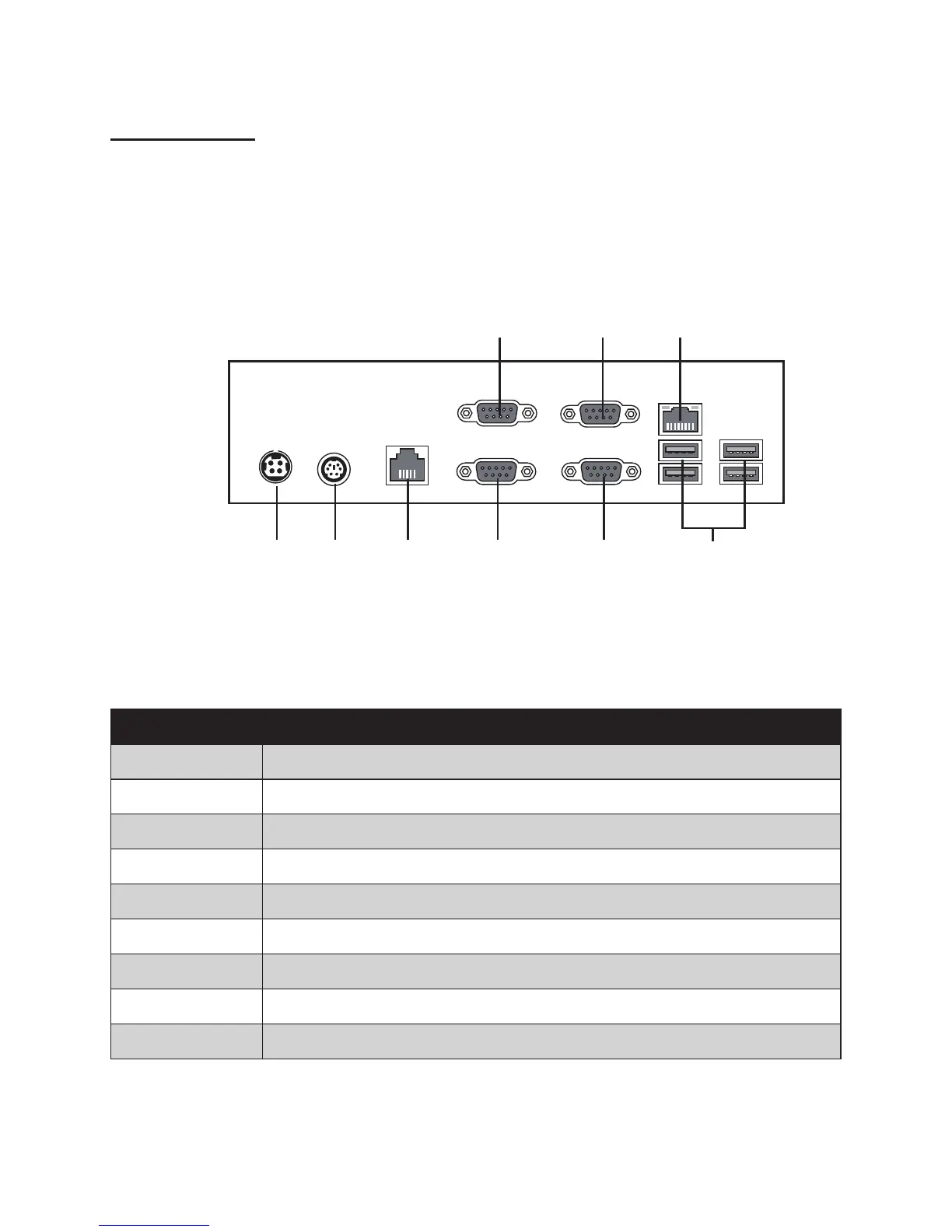

Figure 1.4 PT-6200 I/O connectors
4
1 2 3
5 6 7 8 9
Connector Description
1 COM4 port
2 COM2 port
3 LAN port (RJ-45)
4 12V power connector
5 PS/2 keyboard port
6 RJ-11 cash drawer port
7 COM3 port
8 COM1 port
9 USB ports
