Introduction
The Reset button (see figure 18) is used to do the following:
• Reboot the SmartNode device (see section “Resetting the SmartNode device when it is operating and the
Power LED is lit”)
• Erase the startup-config settings, which is followed by a SmartNode device reboot as indicated by the slow
blinking of all LEDs (see section
“Resetting the SmartNode device when it is operating and the Power LED
is lit”)
• Factory reset, which is followed by a device reboot as indicated by the fast blinking of all LEDs (see section
“Resetting the SmartNode device when it is operating and the Power LED is lit”)
• Troubleshoot the SmartNode device if it is not booting properly (see section “Resetting the SmartNode device
when it is initially powered off” on page 57)

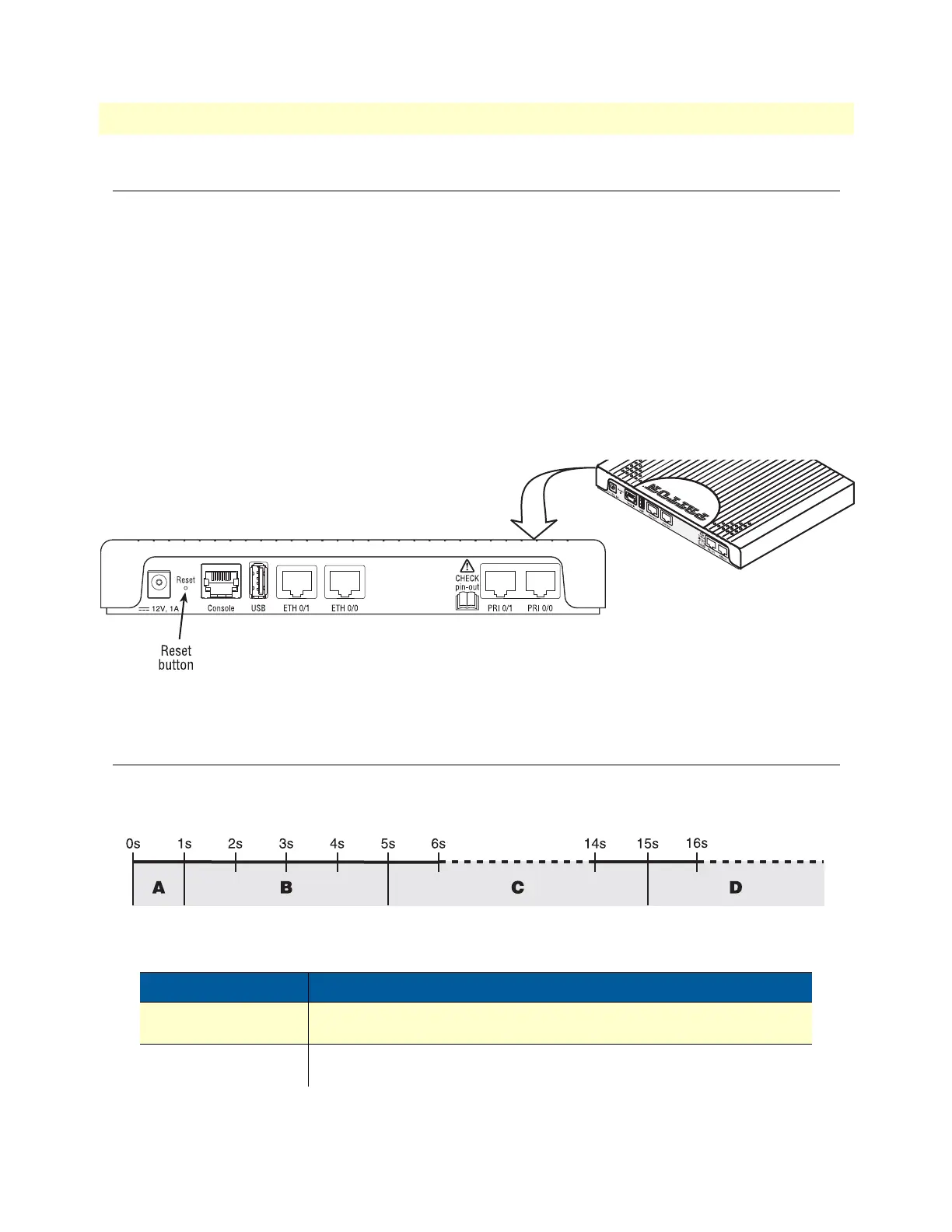

Figure 18. Reset button
Resetting the SmartNode device when it is operating and the Power LED
is lit
The Reset button has the following behaviors depending on how many seconds (see figure 19) the button is
pressed (see table 10 on page 56 for the results from pressing the button).
Figure 19. Reset button periods (in seconds) for performing actions
Table 10. Results from pressing the Reset button
Period Action
A
(less than 1 second)
Reboot device
B
(1 to 4 seconds)
No action
