Paxton Switch2 User Manual

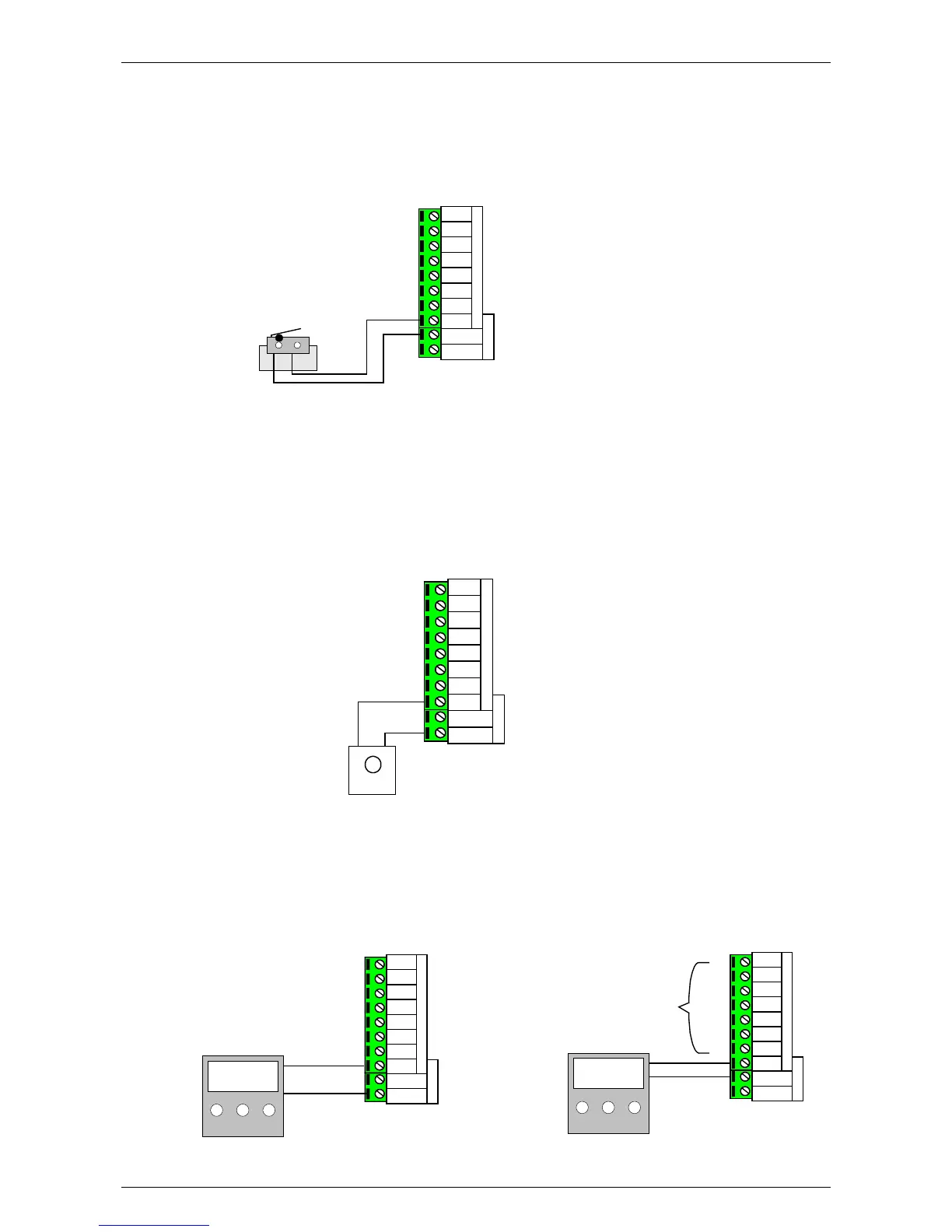

Inputs
Tamper Switch
Red
Brown
Orange
Green
Yellow
Blue
Mauve
Exit
Contact
Black
Card reader or keypad
Inputs
Tamper Switch
If a tamper switch is required, it should be Normally Open – held closed by the cover. It is
fitted across Black and Contact and will operate in the same manner as a Door Contact. That
is to say an alarm will be generated if the switch opens and no valid access has been granted.
NOTE: Fitting this will disable the TOUCHLOCK keypad bell button and should be wired in
series with any door contacts if they also be fitted.
Exit Button
Red
Brown
Orange
Green
Yellow
Blue
Mauve
Exit
Contact
Black
Card reader or keypad
Inputs
Exit
NOTE: The exit button should be push-to-make
Time Clock
Red
Brown
Orange
Green
Yellow
Blue
Mauve
Exit
Contact
Black
Card reader or keypad
Inputs
Time Clock
00:00
Holding a door open
(acts like an exit button)
Red
Brown
Orange
Green
Yellow
Blue
Mauve
Exit
Contact
Black
Card reader or keypad
Inputs
Time Clock
Cardlock or
Proximity only
00:00
Changing coloured
zone access
Chapter 3 Wiring 12
