VGA Extension Bracket
The VGA extension bracket has a 15-pin connector for an external
monitor cable.
1. On the mainboard, locate the VGA1 header for this bracket.
2. Plug the cable from the bracket into the VGA1 header.
3. In the system chassis, remove a blanking plate from one of the
expansion slots and install the extension bracket in the slot.
Use the screw that held the blanking plate in place to secure
the extension bracket.

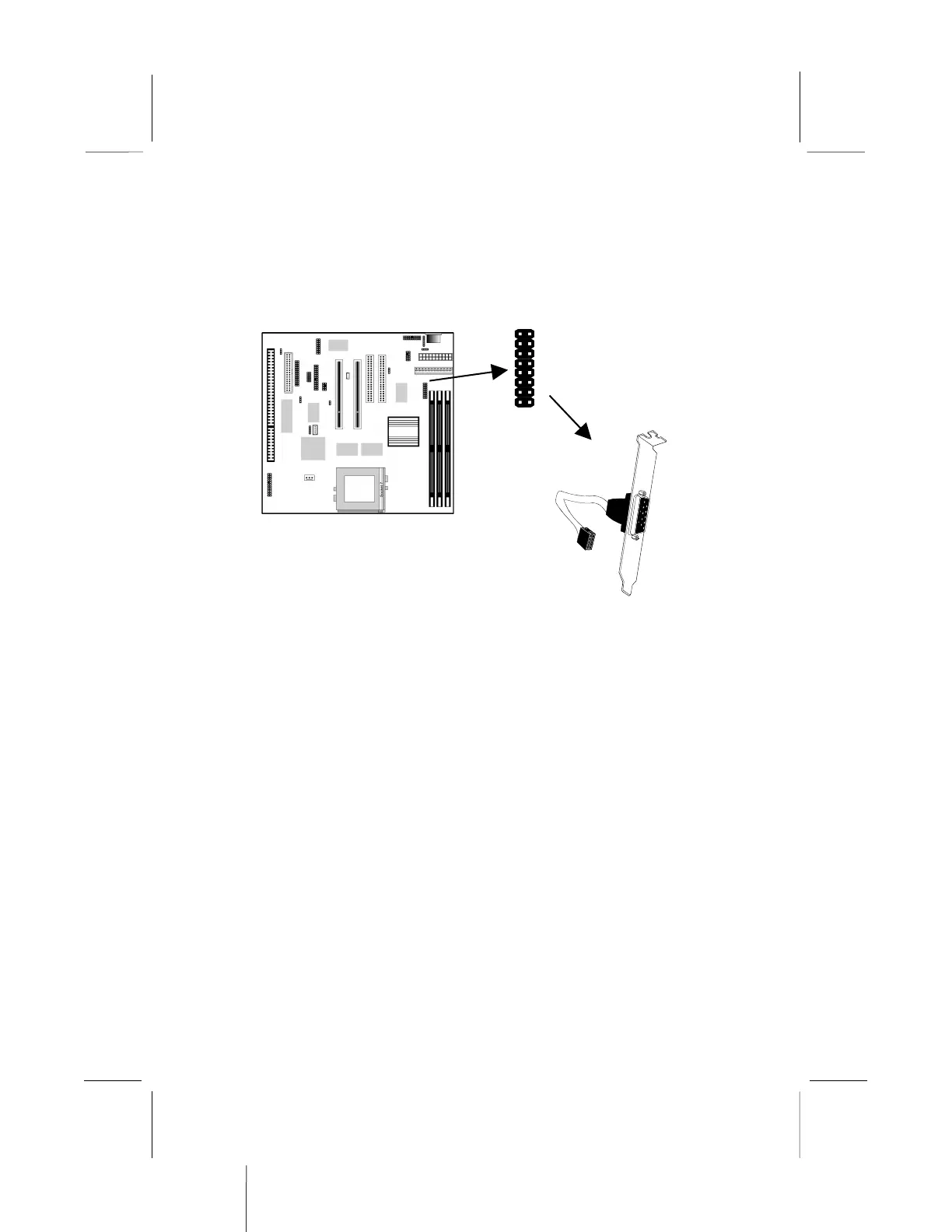

VGA Extension Bracket
VGA1-VGA Header
1
