If you want to install more IDE devices, you can purchase a second
IDE cable and connect one or two devices to the Secondary IDE
channel connector IDE on the mainboard. If you have two devices
on the cable, one must be Master and one must be Slave.
Internal Analog Sound Connections
If you have installed a CD-ROM drive or a DVD drive, you can
connect the sound output of the drive to the built-in sound system.

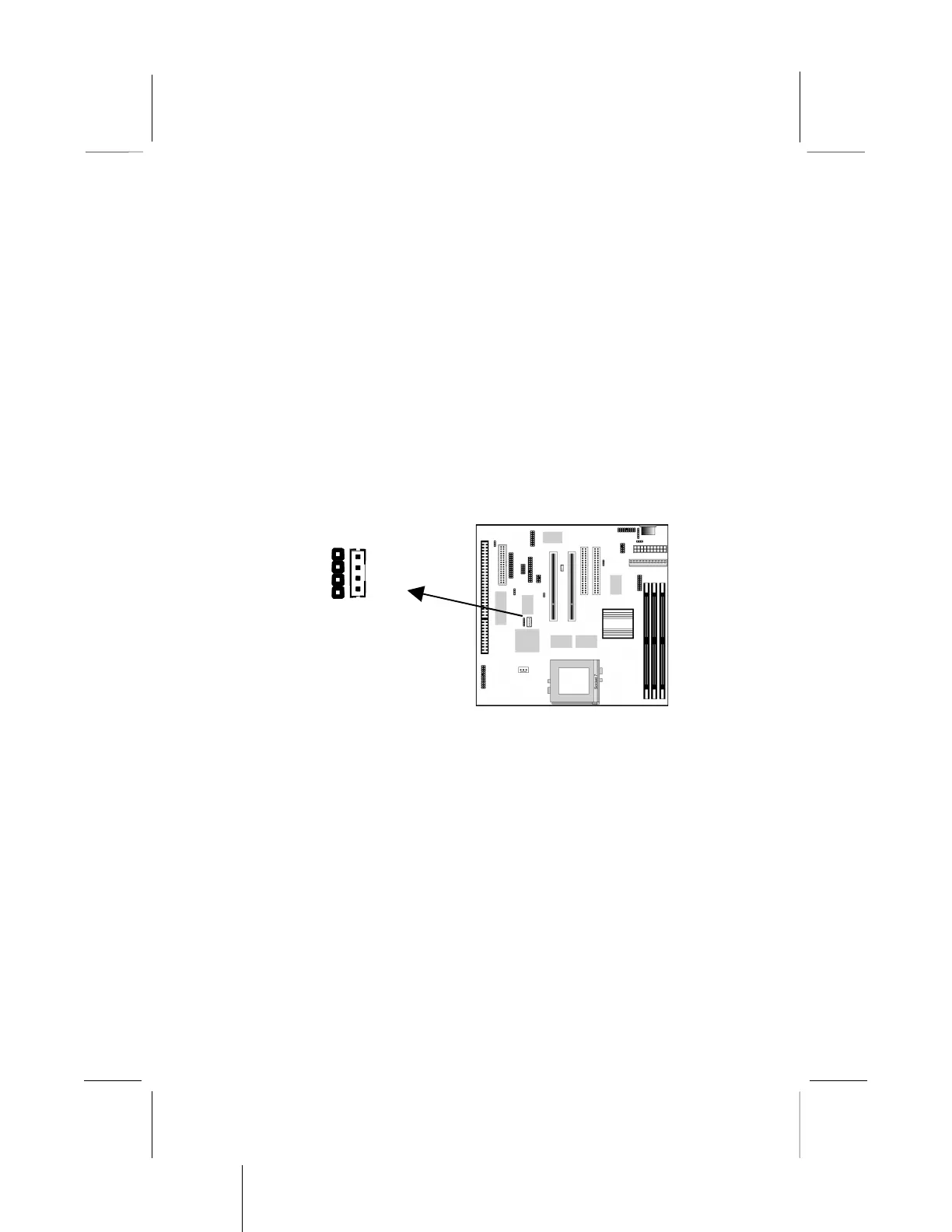

On the mainboard, locate the two 4-pin connectors for J4 and J5.
There are two kinds of connector because different brands of CD-
ROM drive have different kinds of cable connectors on their audio
output cable. Connect the cable to the appropriate connector.
J5 J4
1
1
