LAN Network Adapter Extension Bracket
This bracket supports an RJ45 network connector and connects to
the built in LAN header LAN1 on the mainboard.
1. On the mainboard, locate the LAN1 LAN header for this
bracket.
2. Plug the cable from the bracket into LAN1.
3. In the system chassis, remove a blanking plate from one of the
expansion slots and install the extension bracket in the slot.
Use the screw that held the blanking plate in place to secure
the extension bracket.

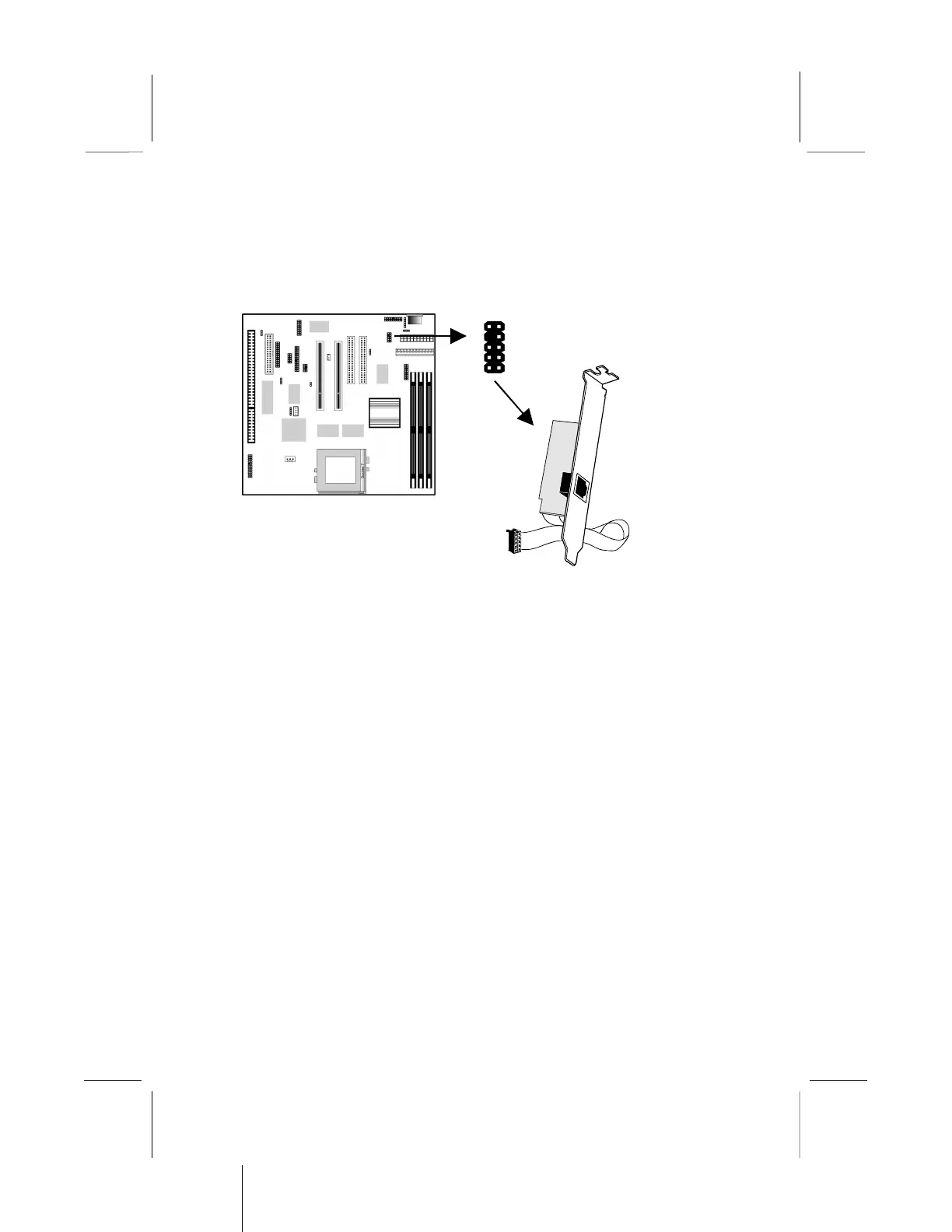

LAN1 LAN Header
LAN Extension
Bracket
1
