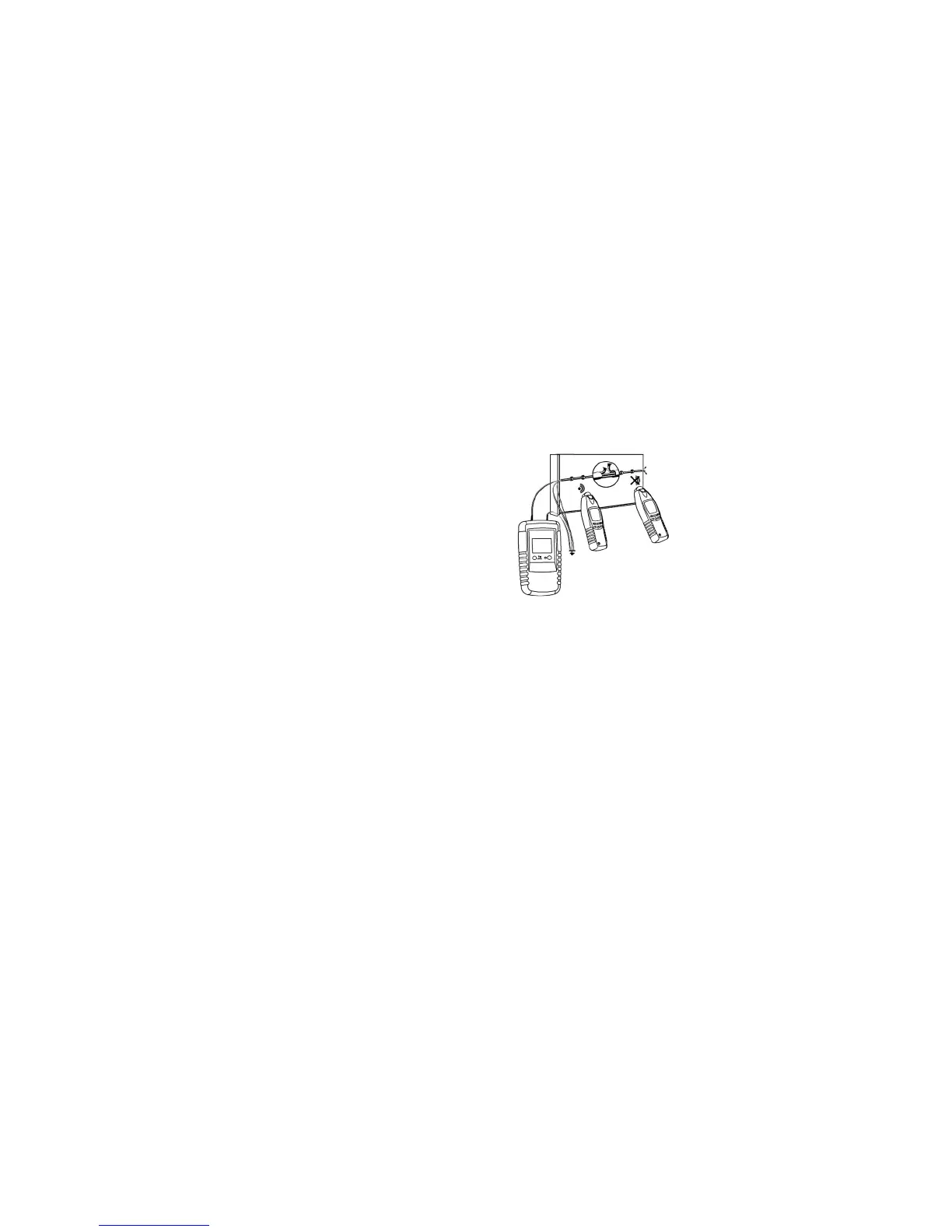

Search of line breaks (single-pole application)
When searching for interrupts, the circuit must be voltage free. Turn off the fuse and connect all the
wires which are not required with protective earth grounding. This is necessary to prevent
scattering of the generated signal to other wires by capacitive coupling. Connect the red cable to
the tested wire and move the receiver on the wall until the buzzer sounds.
The interrupt line must be high resistance (> 100 kohms), which can be checked with a multimeter
before the search starts.
The receiver depth is 2 meters, depending on the material and application. By changing the
transmitter level of the transmitter from 1 to 3, the receiver depth can be changed by a factor of x5.
