PEERLESS SERIES 62 - Individual Back Jacket Panel Style; Side Panel Attachment; Rear View Wrapper Style Jacket; Rear View of Back Panel

6. PlacetheSecondaryAirCoverDooratbottomofInnerFrontPanel.ThetopbendoftheCoverDoorslipsoverthetopreversebendatcutout
openingoftheinnerFrontPanel.RefertoFigure11.
7. AtlachDraftHoodtoFlueCollectorwithtwo(2)#10x1/2"sheetmetalscrews.RefertoFigure10.
8. AttachtheLowerFrontPaneltothebottomtrontoftheLeftandRightSidePanelswithtwo(2)#10x1"sheetmeta_screws.SeeFigure4.
9. PositionTopJacketPanelsotheflangesoverlapSideJacketPanelsandairlouversareatthefrontoftheboiler.Securewithsix(6)#10x1/2"sheet
metalscrews.SeeFigure4.
10.AttachtheCleanOutCoverPlatePaneloveropemnginLeftSideJacketPanet,withfour(4)#10x1/2"jacketscrews.SeeFigure4
11.ThemanilaenvelopethatcontainstheInstallationManualalsocontainstheboilerratinglabel,clearancetocombustiblesplate,Lighting/Operating
instructionplateorlabelandwiringdiagramlabel.SeaFigure5forlocationofplatesandlabels.Attachplateswith#6x3/8"screwsprovided.
12.PositiontheRemovableFrontPanelinplacebyslidingthePanelunderthefrontflangeoftheTopPanelandthendownuntilitrestsonLowerFront
Panel.
B.IndividualBackJacket PanelStyle for Models61-07thru 62-t5
Thisjacketstyle hasa separateBackJacketPanelthatis attachedtoindividualRightand LeftSidePanels.
1. AttachSide Panelsper instructionsin #1thru3 above.SeeFigure 1.
2. Positionthe BackJacketPanelonthe insideoftheLeft and RightPanelflangesand attachwithsix (6) #10x !/2" sheetmetalscrews.SeeFigure3.
3. Followinstructionsaboveper #5thru 12for assemblyof remainingjacketpanels.

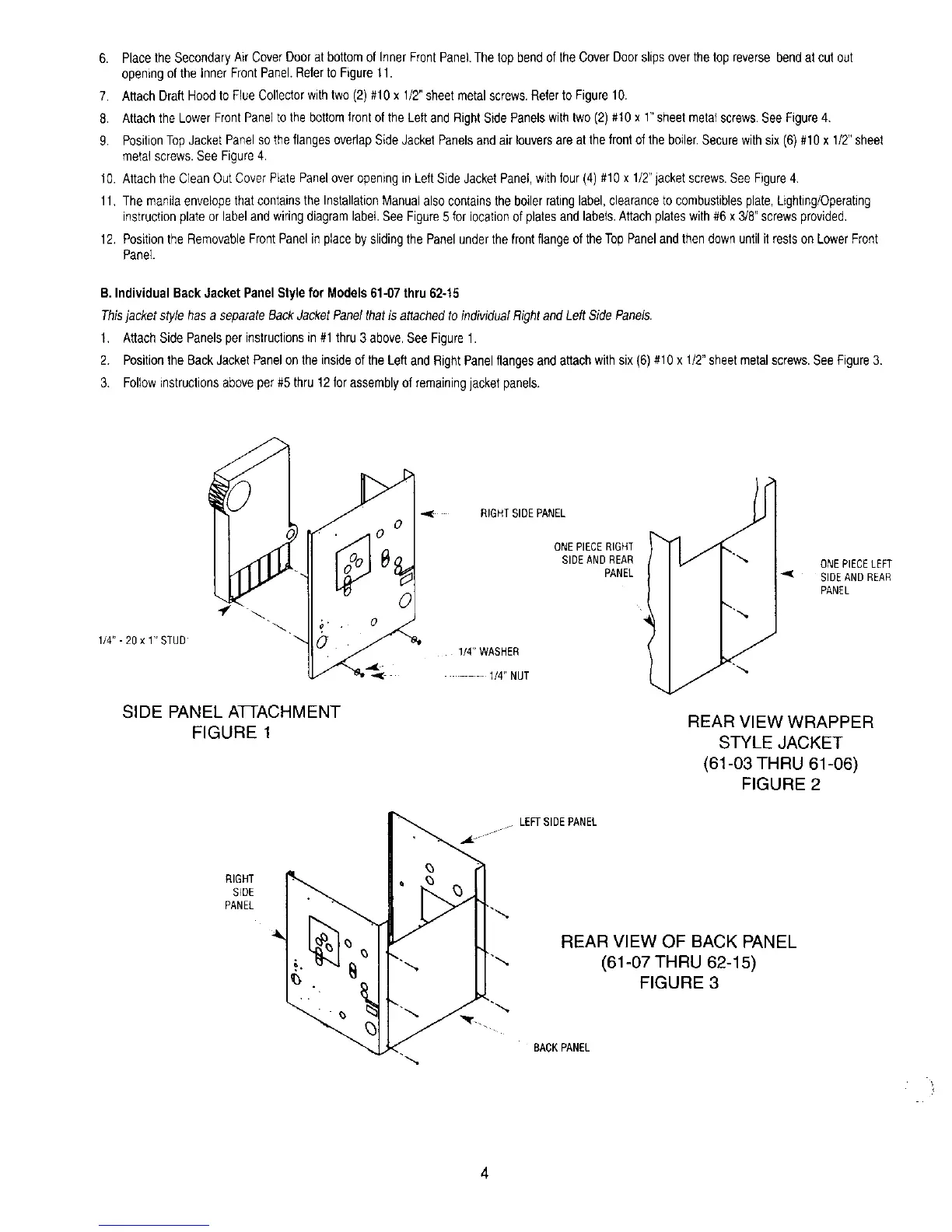

SIDE PANEL ATFACHMENT
FIGURE 1
-,_ RIGHT SIDEPANEL
ONEPIECERIGHT
SIDEANDREAR
PANEL
1/4" WASHER
1/4" NUT
J
J
ONEPIECELEFT
SIDEAND REAR
PANEL
REAR VIEW WRAPPER
STYLE JACKET
(61-03THRU 61-06)
FIGURE 2
LEFTSIDEPANEL
RIGHT
SIDE
PANEL
REAR VIEW OF BACK PANEL
(61-07 THRU 62-15)
FIGURE 3
BACKPANEL
