PEERLESS SERIES 62 - Venting with Vent Damper in Vertical;Horizontal Position

SLOPE UP
A MINIMUM
OF 1/4"
PER FOOT -m
VENT
DAMPER
AS REQUIRED
DRAFT HOOD
OUTLET

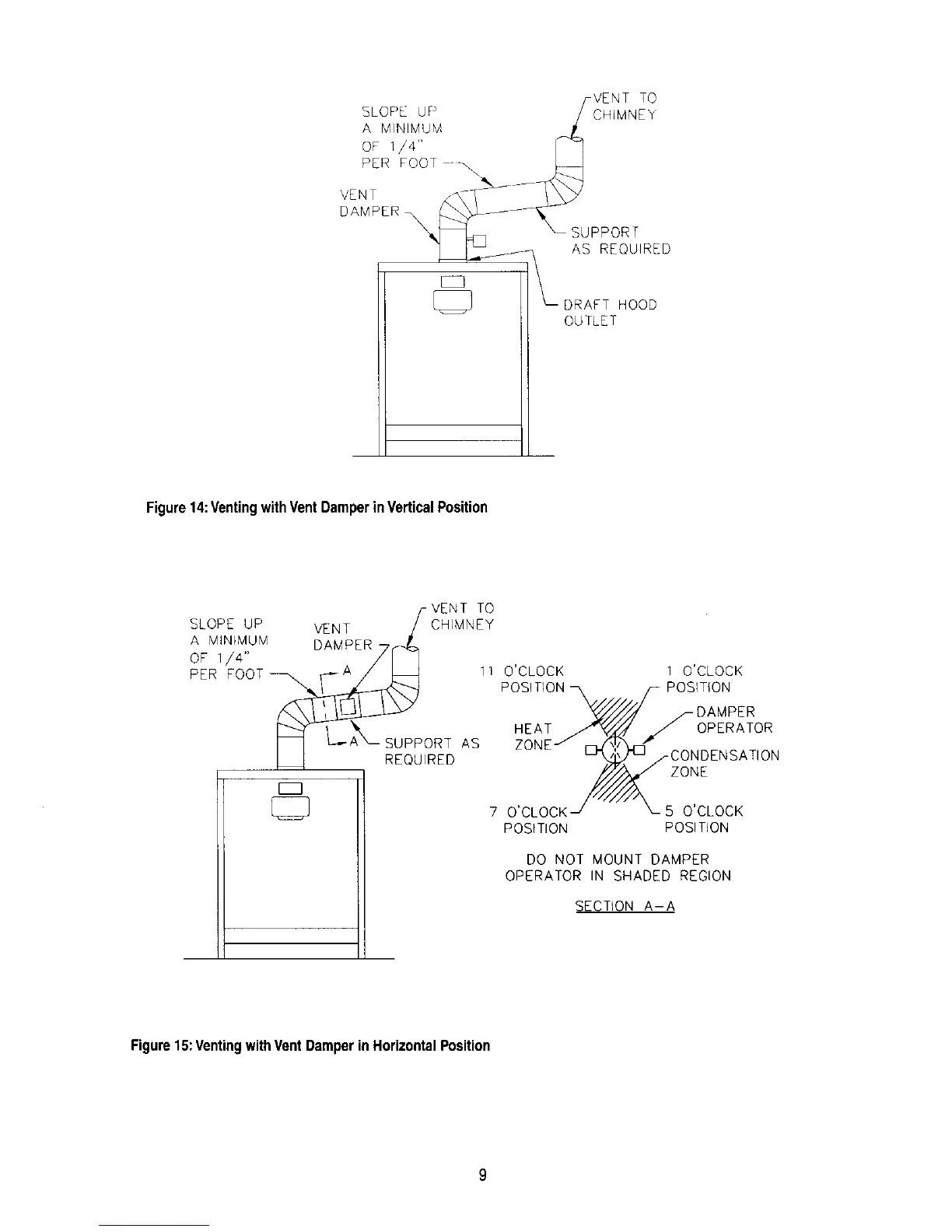

Figure14:VentingwithVentDamperinVerticalPosition
/- VENT TO
SLOPE UP VENT /CHIMNEY
A MINIMUM DAMPER
oF1/4" "7F" 1
PER FOOT_ 11 O'CLOCK
r_
1 O'CLOCK
POSITION
OPERATOR
-CONDENSATION
ZONE
7 O'CLOCK 5 O'CLOCK
POSITION POSITION
DO NOT MOUNT DAMPER
OPERATOR IN SHADED REGION
SECTION A-A
Figure15:VentingwithVentDamperin HorizontalPosition
