PEERLESS SERIES 62 - Wiring of Probe LWCO

WIRING APPLICATION OF HYDROLEVEL PROBE LOW WATERCUTOFFS
Models550P,650PandCG550P
RefertoSectionI - Controlsof this manualfor mountinglocationandinstructions.
115V-60HZ
L2 L1 (HOT)
£
L
TO L2 ON
WIRING DIAGRAM _,
--I1_- 115V-60HZ
ALARM CIRCUIT
(WHEN REQ'D)
sTO L1 ON WIRING DIAGRAM
NOTES:
ALL WIRING MUST COMPLY W!TH APPLIANCE CCDE3,
ORDINANCES, AND REGULATIONS
(_) PLACE JUMPER

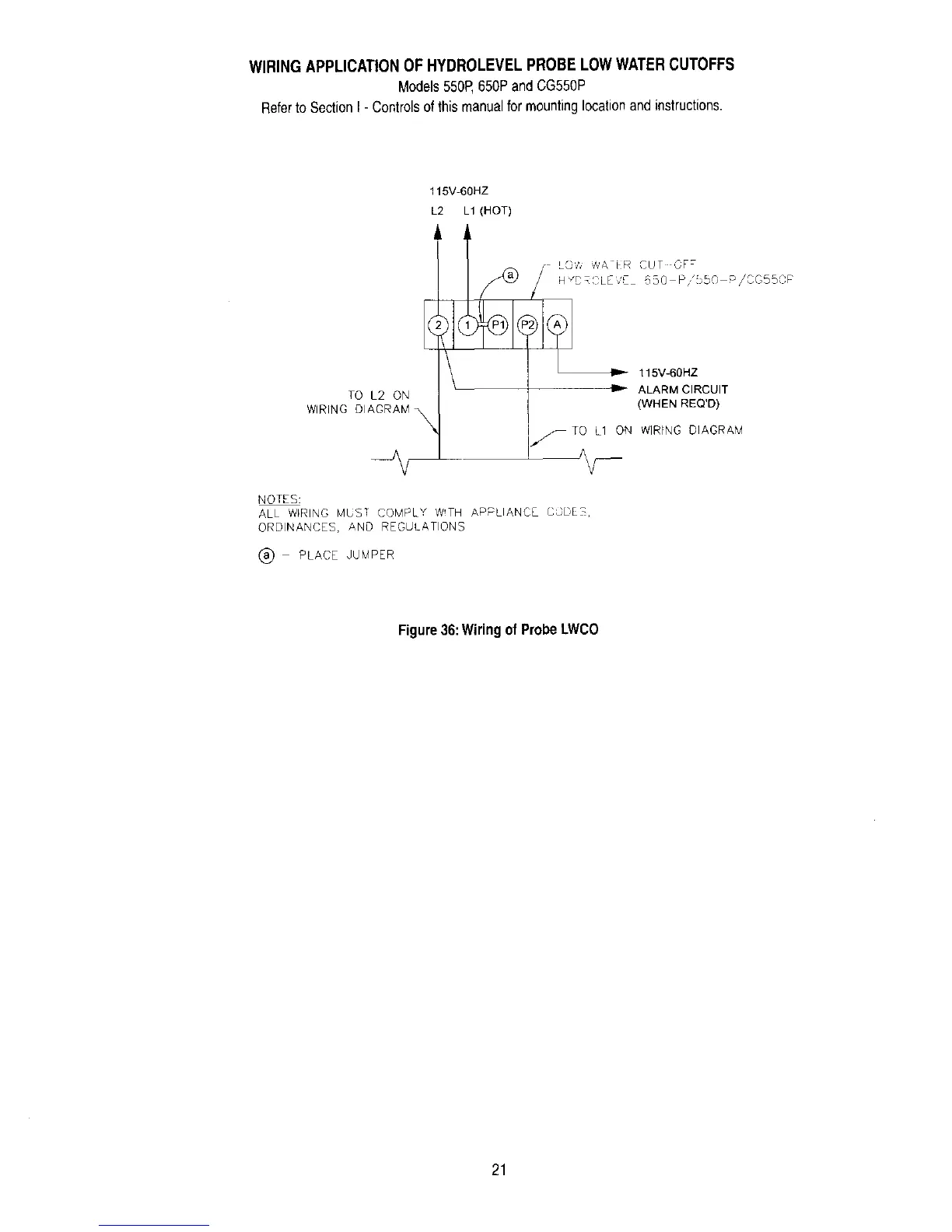

Figure36:Wiringof ProbeLWCO
