IlI I:).'4:1._IL'I_ [*] L'II _±Ib._I:
I'_ :t _ :_',4:l :J.*{._ i :_taj/ [.] k
Consult the tank manufacturer's instructions for
specific information relating to tank installation. Size
the expansion tank for the required system volume
and capacity See Table 10 in Section 10 for boiler
water capacity
2.
Expansion tanks are available with built-in fill valves
and check valves for reducing supply water pressure
and maintaining minimum system pressure. Check
the design features of the tank and provide valves as
necessary.
Refer back to Figure 5 for typical expansion tank piping.
=lq h_l*] I:i::[,_lt_= I ;{:ID]i_i_l_*_li :_;l I-"I:r_,'11:I:
If the boiler is to be used in conjunction with an indirect-
fired water heater, refer to Figure 11 for typical piping.
Follow the instructions provided by the water heater
manufacturer. Pipe the water heater as a separate zone.
For new or existing systems that must be freeze-
protected:
Use only inhibited propylene glycol solutions of up to
50% by volume with water. Ethylene glycol is toxic
and can attack gaskets and seals used in hydronic
systems.
1.
Glycol in hydronic applications is specially
formulated for this purpose. It includes inhibitors
which prevent the glycol from attacking metallic
system components. Make certain that the system
fluid is checked for the correct glycol concentration
and inhibitor level.
2. The antifreeze solution should be tested at least once
a year and as recommended by the antifreeze
manufacturer.
3,
4.
Antifreeze solutions expand more than water. For
example, a 50% by volume solution expands 4.8%
in volume for a temperature increase from 32°F to
180°E while water expands 3% with the same
temperature rise. Allowance must be made for this
expansion in system design.
For more information, consult the Peerless Water
Installation Survey and the antifreeze manufacturer.
SUPPLY TO .
SYSTEM
RETURN FROM •
SYSTEM
HOT DOMESTIC ,.,___
WATER SUPPLY
COLD DOMES_C_
WATER SUPPLY
ZONE VALVE_
INDIRECT-FIRED
WATER HEATER
L
SUPPLY 1
TO TANK
BALANCING
VALVE
BALANCING
VALVE
DRAIN
17_ SYSTEM
i_1 CIRCULATOR

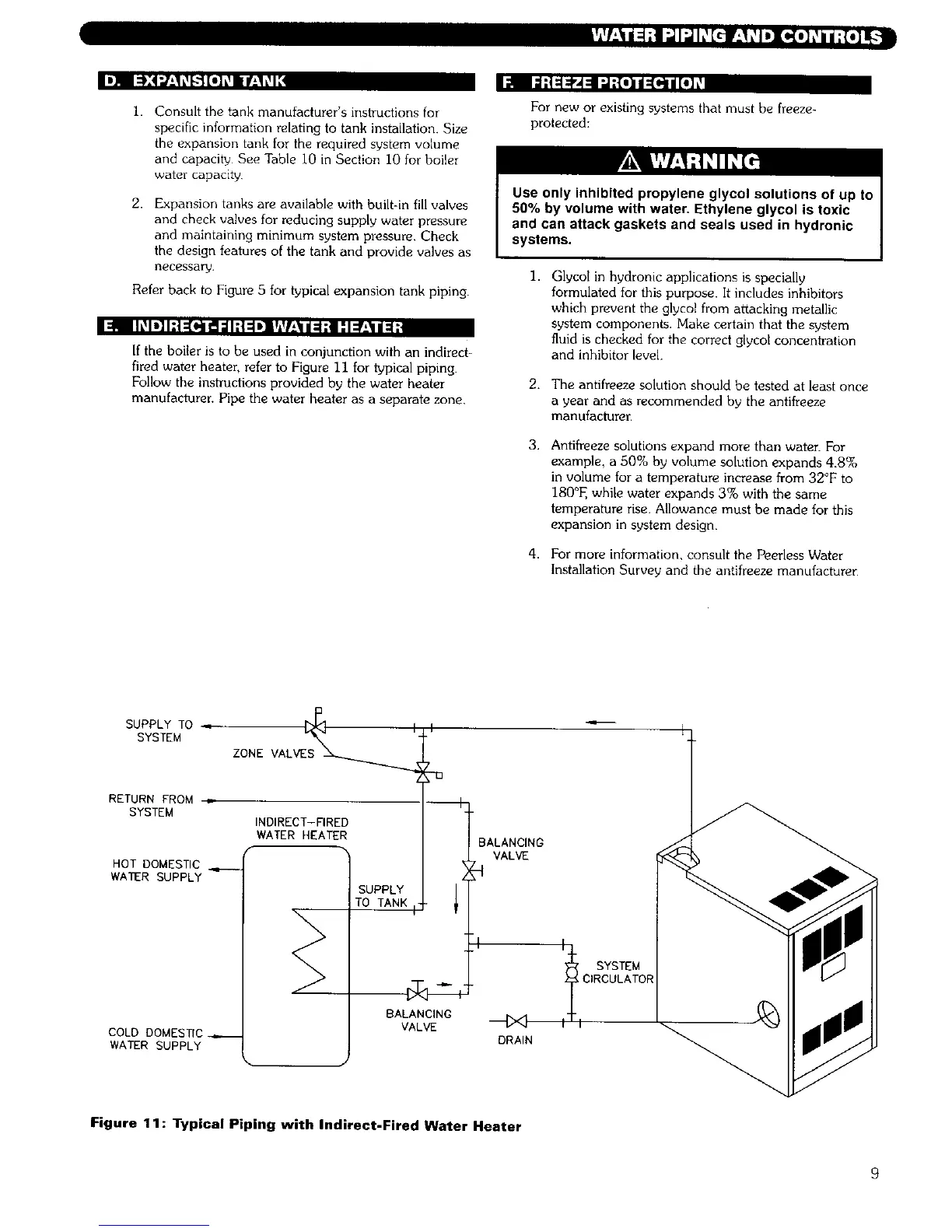

Figure 11: Typical Piping with Indirect-Fired Water Heater
