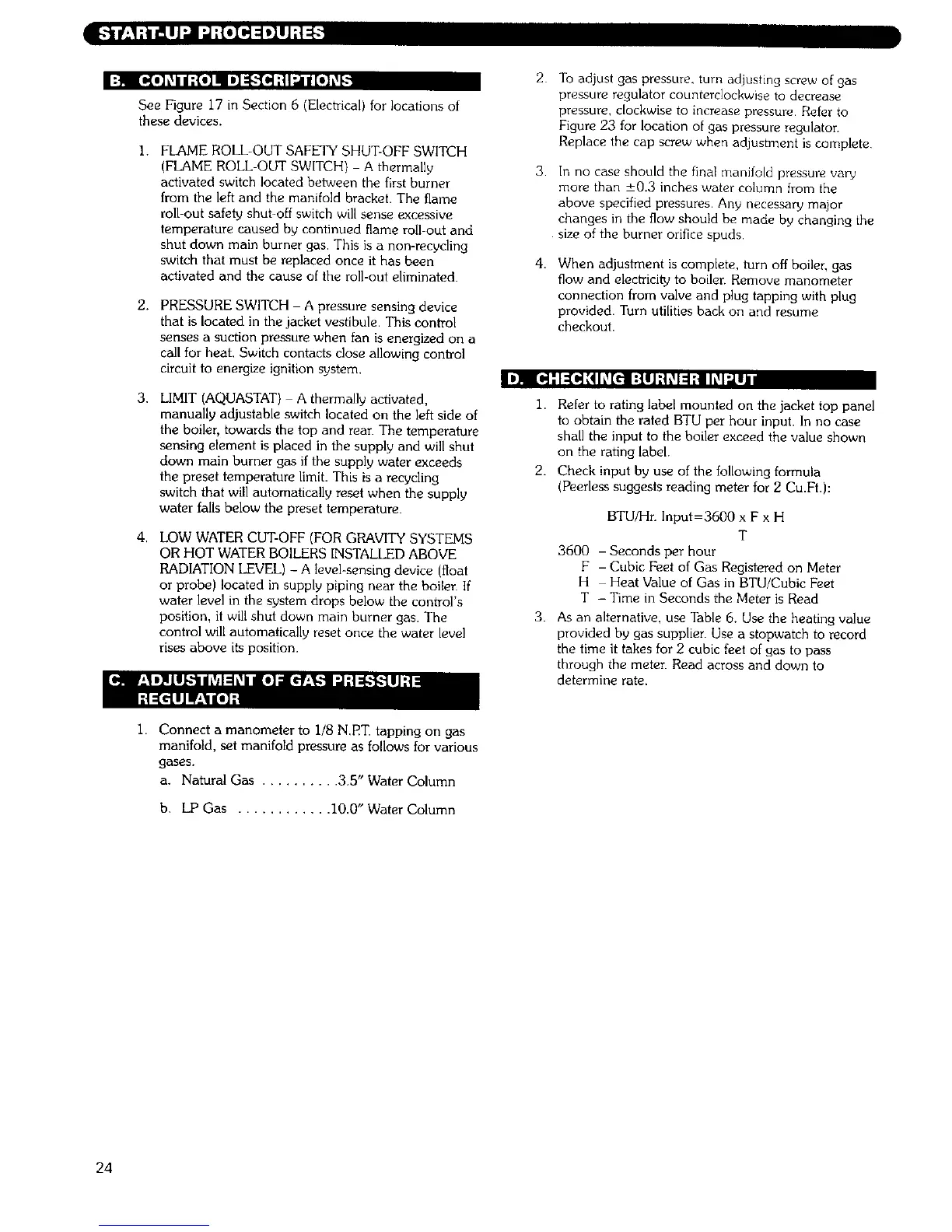

:II [a'[O]L'_ilI-'{O]IID]=[',."[O"]-'II_II[O]L'IF+-
See Figure 17 in Section 6 (Electrical) for locations of
these devices.
I.
FLAME ROLL-OUT SAFETY SHUT-OFF SWITCH
(FLAME ROLL OUT SWITCH) A thermally
activated switch located between the first burner
from the left and the manifold bracket. The flame
roll-out safety shut+off switch will sense excessive
temperature caused by continued flame roll-out and
shut down main burner gas. This is a non-recycling
switch that must be replaced once it has been
activated and the cause of the roll-out eliminated.
2.
DJ [q:l=[q[4h_[ct I:ieJ;t_l=l;_ ll++'_l',,,,tlj
3.
4,
PRESSURE SWITCH A pressure sensing device
that is located in the jacket vestibule. This control
senses a suction pressure when fan is energized on a
call for heat. Switch contacts close allowing control
circuit to energize ignition system.
LIMIT (AQUASTAT) A thermally activated,
manually adjustable switch located on the left side of
the boiler, towards the top and rear. The temperature
sensing element is placed in the supply and will shut
down main burner gas if the supply water exceeds
the preset temperature limit. This is a recycling
switch that will automatically reset when the supply
water falls below the preset temperature.
LOW WATER CUT-OFF (FOR GRAVITY SYSTEMS
OR HOT WATER BOILERS INSTALLED ABOVE
RADIATION LEVEL) - A level-sensing device (float
or probe) located in supply piping near the boiler. If
water level in the system drops below the control's
position, it will shut down main burner gas. The
control will automatically reset once the water level
rises above its position.
2.
3.
4.
To adjust gas pressure, turn adiusfing screw of gas
pressure regulator counterclockwise to decrease
pressure, clockwise to increase pressure. Refer to
Figure 23 for location of gas pressure regulaton
Replace the cap screw when adjustment is complete
In no case should the final manifold pressure vary
more than +0+3 inches water column flora the
above specified pressures. Any necessary major
changes in the flow should be made by changing the
size of the burner orifice spuds.
When adjustment is complete, turn off boiler, gas
flow and electricity to boiler. Remove manometer
connection from valve and plug tapping with plug
provided. Turn utilities back on and resume
checkout.
I. Refer to rating label mounted on the jacket top panel
to obtain the rated BTU per hour input. In no case
shall the input to the boiler exceed the value shown
on the rating label.
2. Check input by use of the following formula
(Peerless suggests reading meter for 2 Cu.Ft.):
3.
BTU/Hr. Input-3600 x F x H
T
3600 - Seconds per hour
F - Cubic Feet of Gas Registered on Meter
H Heat Value of Gas in BTU/Cubic Feet
T - Time in Seconds the Meter is Read
As an alternative, use Table 6+ Use the heating value
provided by gas supplier. Use a stopwatch to record
the time it takes for 2 cubic feet of gas to pass
through the meter. Read across and down to
determine rate.
1. Connect a manometer to 1/8 N,R'E tapping on gas
manifold, set manifold pressure as follows for various
gases.
a+ Natural Gas .......... 3.5" Water Column
b. LP Gas ............ 10.0" Water Column
24
