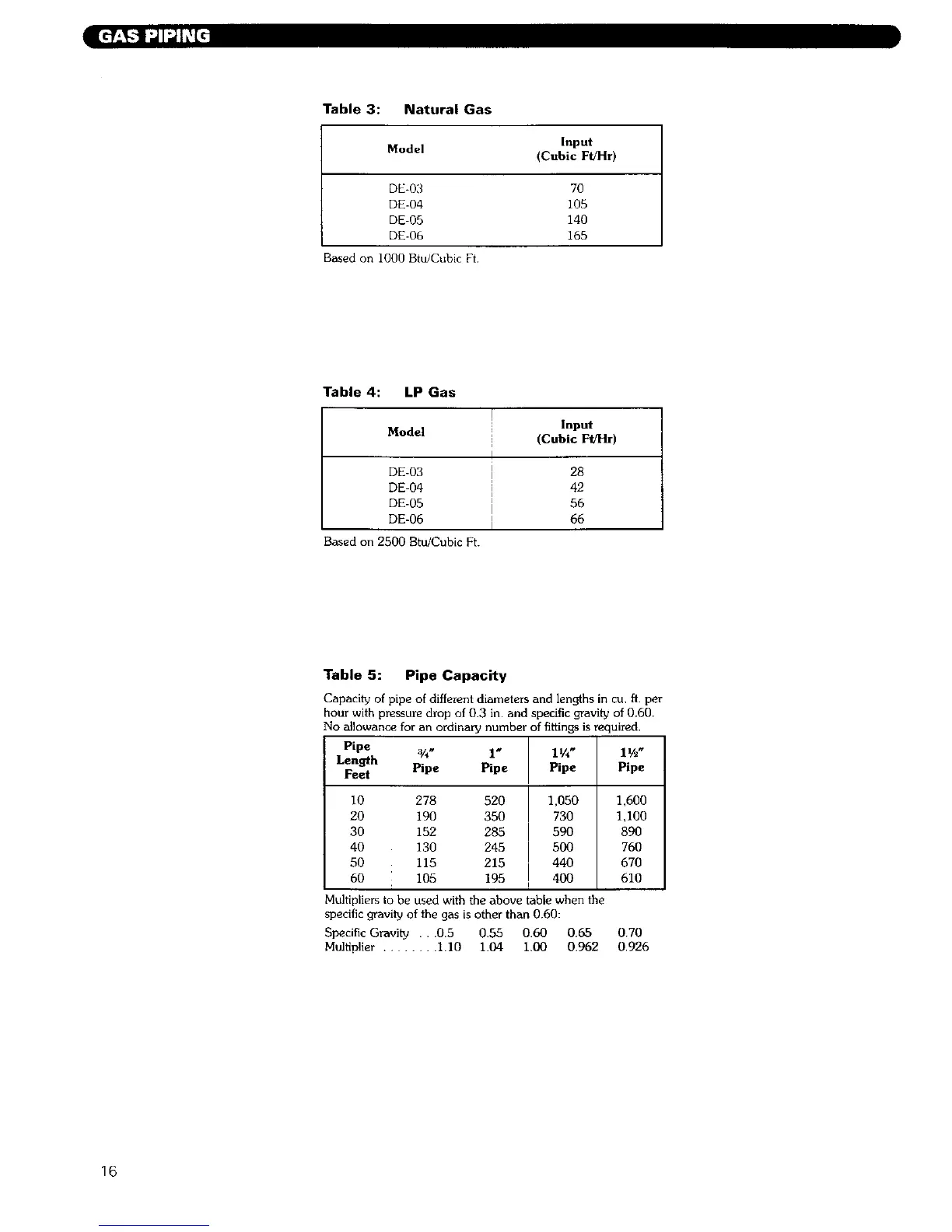

PEERLESS SERIES DE - Pipe Capacity

Table 3: Natural Gas
Model Input
(Cubic Ft/Hr)
DE-03 70
DE-04 105
DE 05 140
DE-06 165
Based on I000 BtulCubic Ft
Table 4: LP Gas
Model Input
(Cubic Ft!Hr)
DE-03 28
DE 04 42
DE-05 56
DE-06 66
Based on 2500 Btu/Cubic Ft.
Table 5: Pipe Capacity
Capacity of pipe of different diameters and lengths in cu, ft. per
hour with pressure drop of 0.3 in. and specific gravity of 0.60.
No allowance for an ordinary number of fittings is required.
Pipe a/4_ 1" 11/4" 11/2_
Length
Feet Pipe Pipe Pipe Pipe
10 278 520 1,050 1,600
20 190 350 730 1,100
30 152 285 590 890
40 130 245 500 760
50 115 215 440 670
60 105 195 400 610
Multipliers to be used with the above table when the
specific gravity of the gas is other than 0.60:
Specific Gravity . . .0.5 0.55 0.60 0.65 0.70
Multiplier ........ I.I0 1.04 1,00 0.962 0.926
16
