SET UP INSTRUCTIONS
(All Floor Model Ovens)
1. Uncrate Oven
Check to be sure owners manual, handles and
legs and brackets (required for stacked units) are
packed inside. Check unit for possible damage
during transit. Notify Peerless immediately if any
damage is found.
2. Place oven in its permanent location.
Level unit using the adjustable legs provided.
3. Leg Installation
Mount legs on the side of the unit while blocked,
(refer to Figure 1) NOTE: Ovens can be lightened
leg has four mounting bolts, packed inside oven.
After completing Step 1, proceed to the other two
legs. (refer to Figure 2)
3. For double or triple stacks
Locate the stacking brackets and legs with each
unit.
4. Minimum Clearance
6” from sides and rear from combustible and non-
combustible construction.
ELECTRICAL HOOK-UP
1.
2. Each unit comes with calrod elements. Check rating plate for amperage
load to determine wire size for proper installation.
3. Counter models can be 120V or 220V. Floor models are 220V, single
(standard) or three phase (optional).
4. Access to hook-up is located on the back cover. Remove top portion to
reveal terminal block for hook-up.
5. Be sure to use a separate case ground.

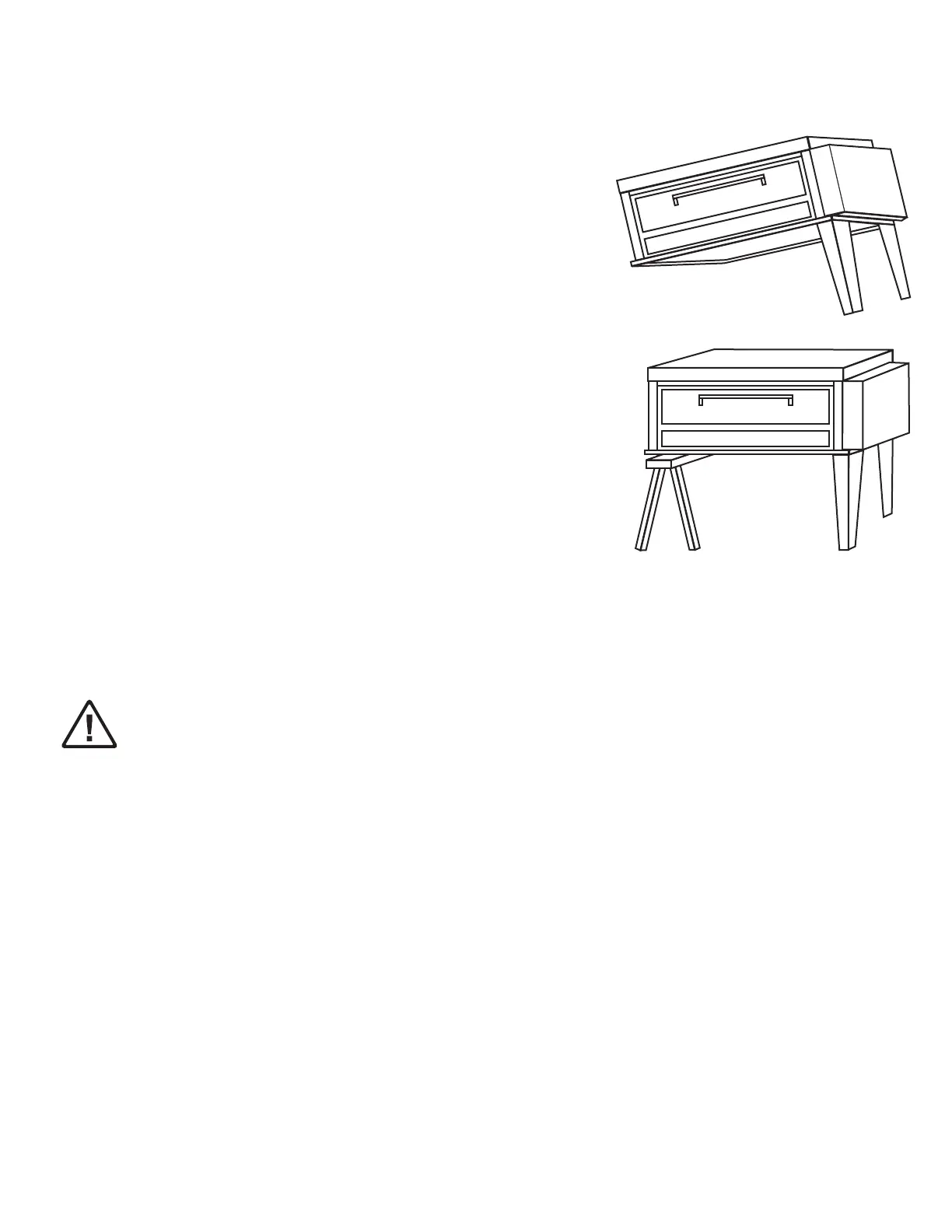

Figure 1
Figure 2
