GENERATOR OVERVOLTAGE PROTECTION

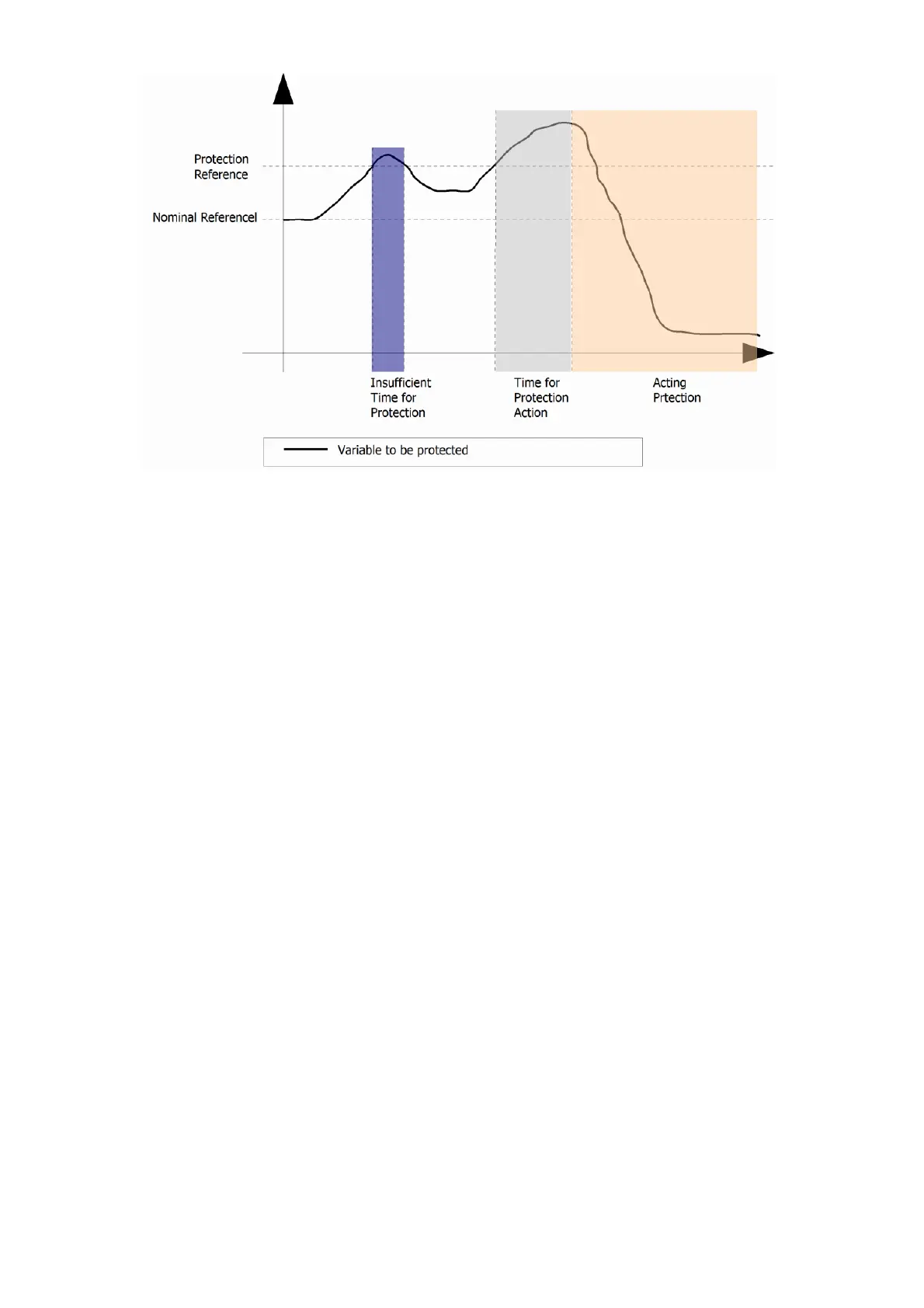

➢ Protection Reference: 25% of the reference voltage set by the trimpot Vad.
➢ Time for protection action: 1 second.
➢ Signaling: Alarm Led constantly lit in Strong Blue.
EXCITATION OVERCURRENT PROTECTION
➢ Protection Reference: 12,5 A.
➢ Time for protection action: 1 second.
➢ Signaling: Alarm Led constantly lit in Red.
ARMATURE OVERCURRENT PROTECTION
➢ Protection Reference: 15% above rated CT current.
➢ Time for protection action: 2 seconds.
➢ Signaling: Alarm Led constantly lit in Yellow.
ROTATING DIODE FAULT
The regulator is constantly measuring the fluctuations that occur in the excitation current, when a
variation occurs above a percentage of the average current, and the actuation time exceeds a
defined time the regulator signals an alarm of the occurrence of the fault.
➢ Percentage reference of the average excitation current: 30%.
➢ Time for protection action: 5 seconds.
➢ Signaling: Alarm Led constantly lit in Cyan (Blue-green).
