CONNECTION TO THE GENERATOR OPERATING IN (330 to 600Vca)
Attention
➢ Before connecting the regulator to the generator, refer to the installation manual for the
nominal reference voltage;
➢ The supply voltage can’t exceed the maximum voltage specified by the product;
➢ If the reference voltage is note qual to the output voltage of the generator, do not make the
connections without consulting the service center.

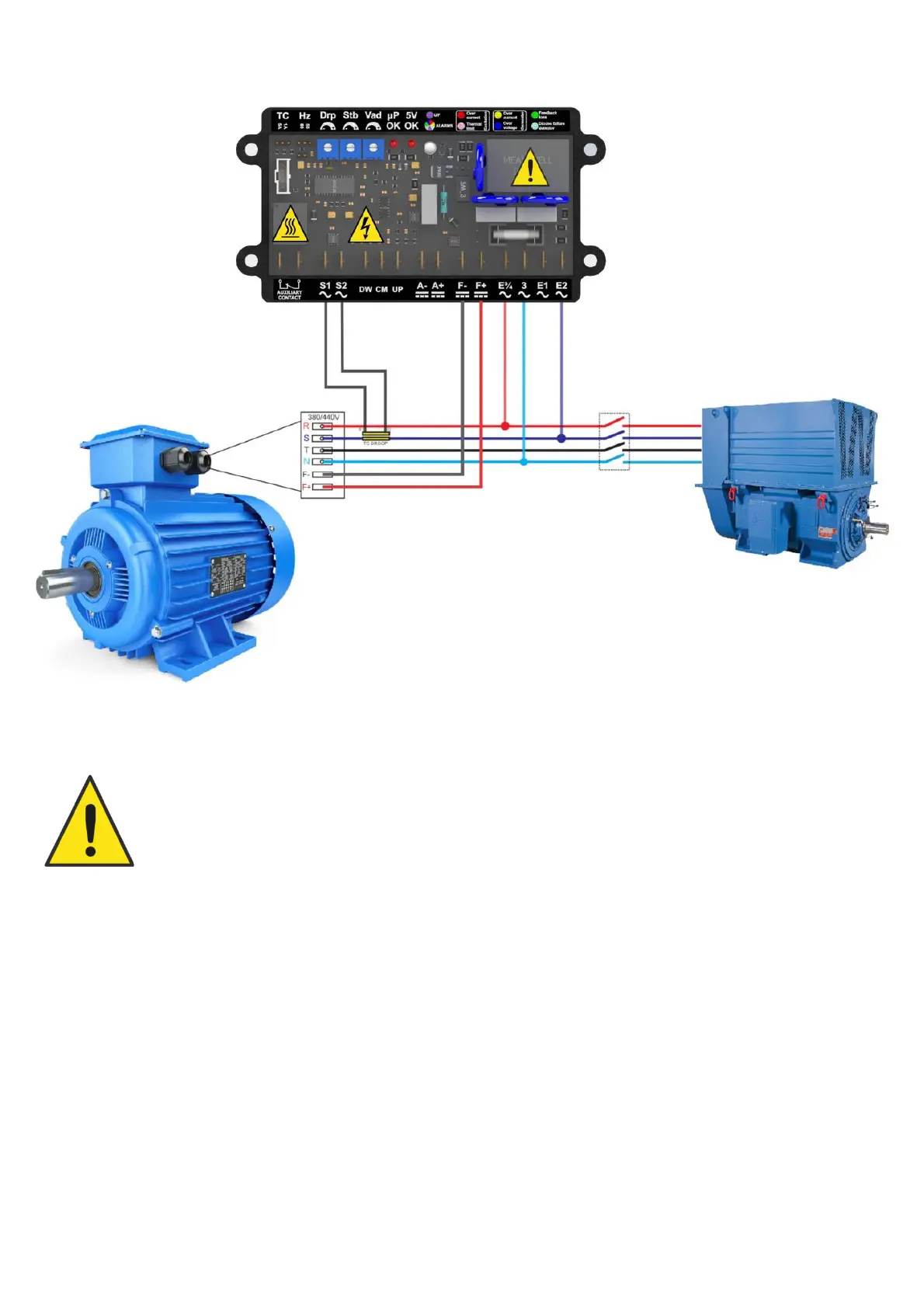

Figure 21 – Connection without auxiliary winding with the generator operating in the range 330 to 600Vca
Generator
Load
