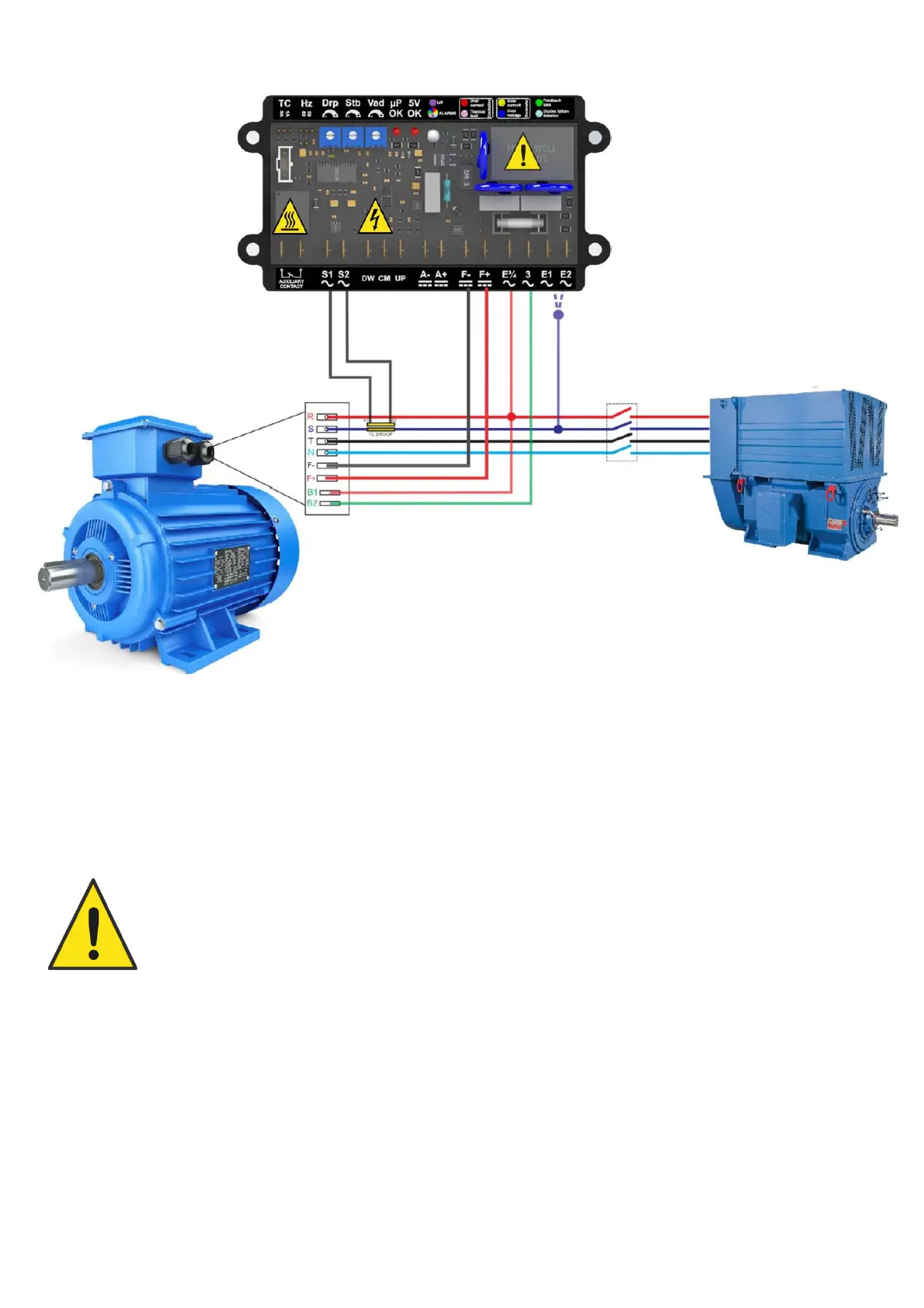

CONNECTION TO THE GENERATOR WITH AUXILIARY WINDING
Notes:
1
For work only isolated (single) short circuit S1 e S2;
2
If possible use a 10A/300Vca circuit breaker in series with terminal 3 connection to turn the
regulator on and off.
3
Droop CT is not provided by PEGASUS, observe ratio specification (PAR/1A or PAR/5A)
4
Generator line voltages, according to the sensing voltage class and the supply voltage level of
the regulator.
Attention
➢ Before connecting the regulator to the generator, refer to the installation manual for the
nominal reference voltage;
➢ The supply voltage can’t exceed the maximum voltage specified by the product;
➢ If the reference voltage is note qual to the output voltage of the generator, do not make the
connections without consulting the service center.
➢ Using auxiliary winding, the E
3/4
connector, regulator circuit reference, must be the common
point between coil and generator.
