Pego ECP202 EXPERT + BASE Series - ECP202 Expert + Base Connection Example 2

ECP202 EXPERT + BASE
Page 26
USE AND MAINTENANCE MANUAL
Rev. 01-20

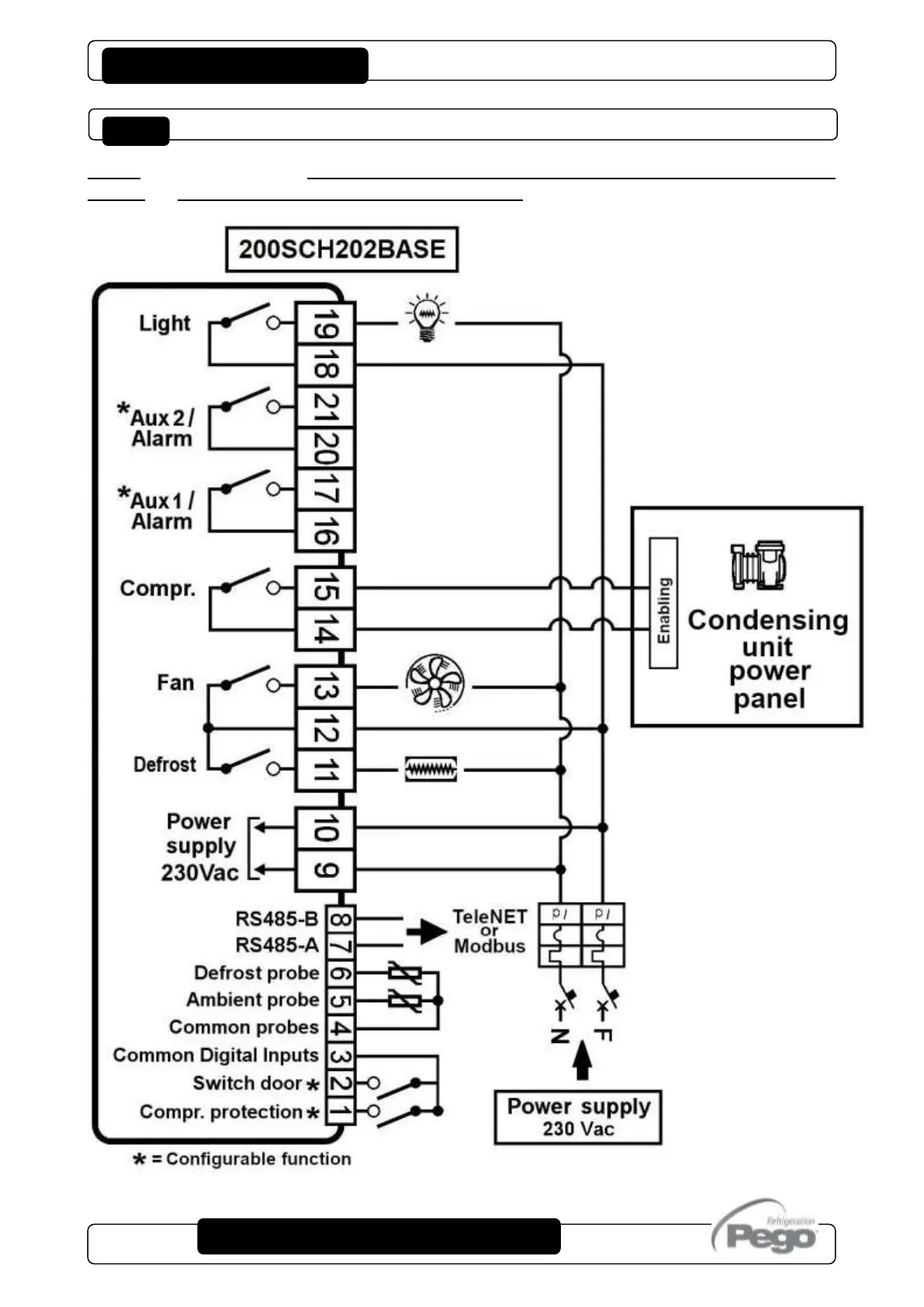

CONNECTION EXAMPLE (2) - ECP200 EXPERT + BASE
Mixed connection with on/off contact to enable towards condensing unit power
board and fan, light and defrost outputs powered for direct control.
