Pego ECP202 EXPERT + BASE Series - ECP202 Expert + Base Connection Example 1

ECP202 EXPERT + BASE
Page 25
USE AND MAINTENANCE MANUAL
Rev. 01-20

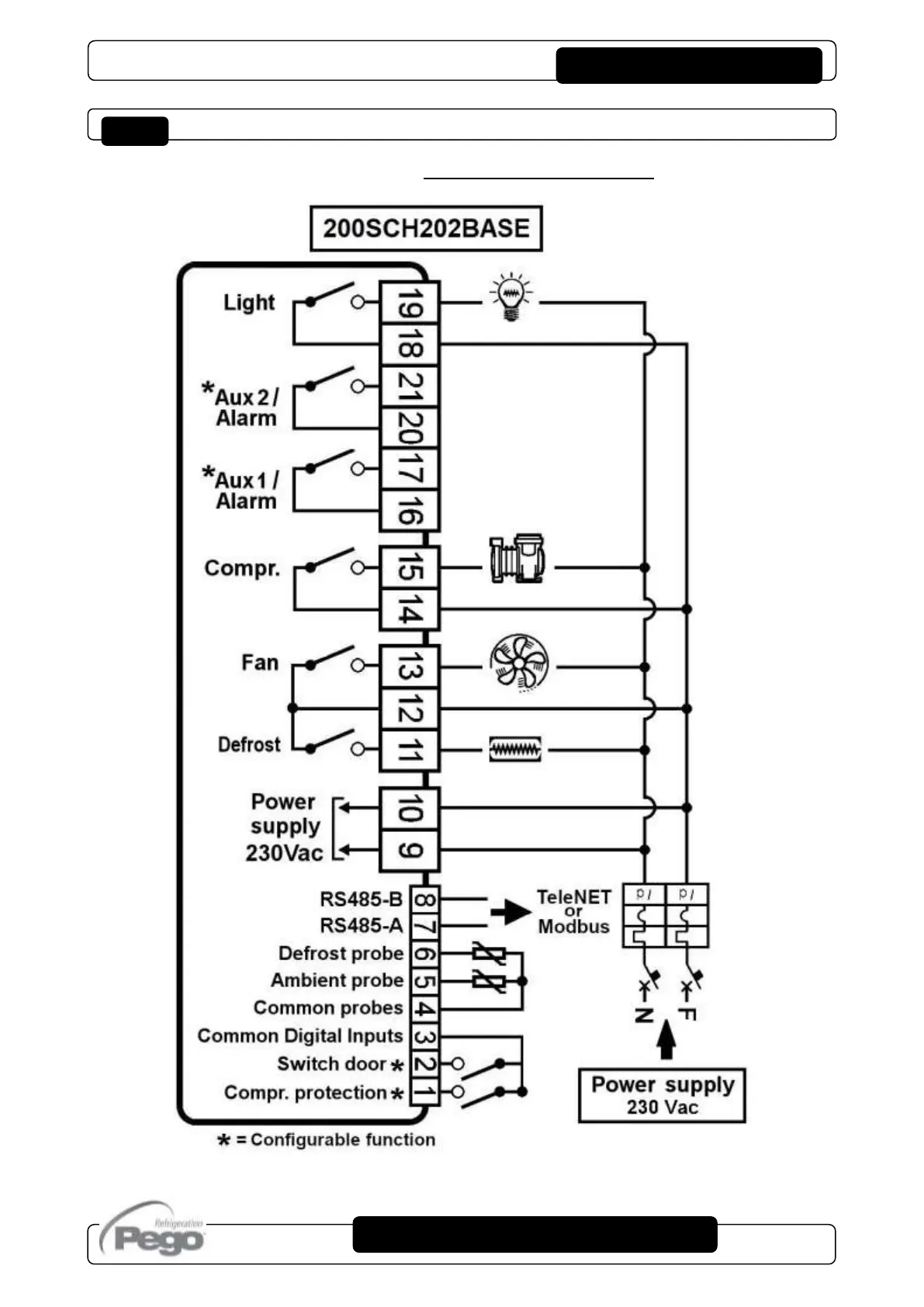

CONNECTION EXAMPLE (1) - ECP202 EXPERT + BASE
Connection with outputs powered for direct control of functions.
Appendices
A.3
