Page 12
USER MANUAL

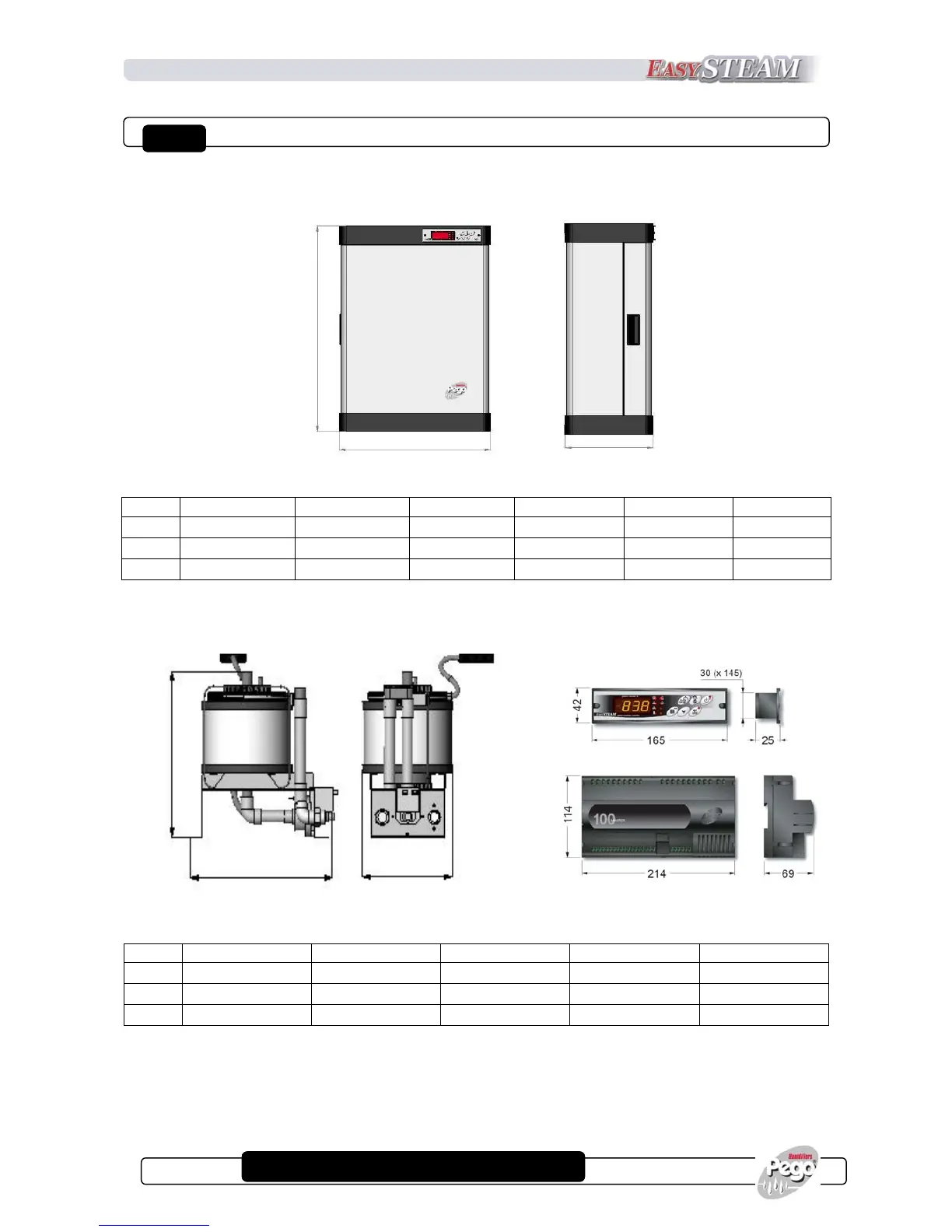

OVERALL DIMENSIONS
ES SERIES
OEM SERIES
STEAM GENERATING UNIT
ELECTRONIC KIT
TYPE
ES3-M OEM
ES6-M OEM
ES6 OEM
ES12 OEM
ES24 OEM
L
340 340 340 340 340
P
210 210 210 210 210
H
380 380 380 480 565
Measurements in mm.
TYPE ES3-M
ES6-M
ES6
ES12
ES24
ES48
L
430 430
430
430
430
610
P
240 240
240
240
240
290
H
525 525
525
625
710
710
1.8
H
L
P
H
L P
11
13
