Page 23
USER MANUAL

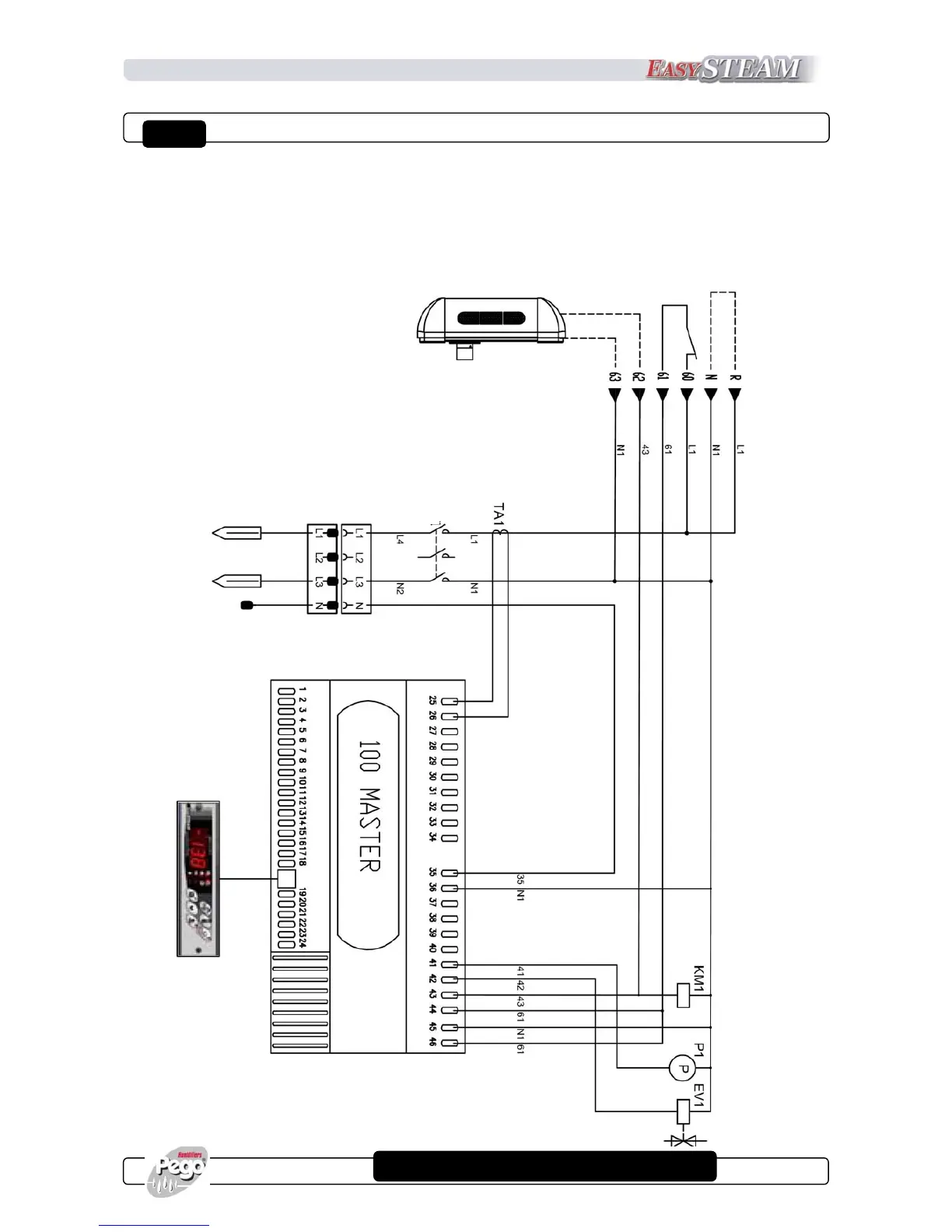

WIRING DIAGRAMS ES AND OEM SERIES
-
Wiring diagrams models:
ES3-M-OEM / ES6-M-OEM
ES3-M / ES6-M
2.5
Fan unit
Emergency
close contact
Level
Humidifier
electrodes
Connector
Power
terminal block
Enabling and probes
terminal block
LEGENDA:
KM1: Contactor
TA1: Current
transformer
P1:
Drain pump
EV1: Solenoide
valve
KM1
Power supply
230Vac Single
‐
phase
50/60Hz
22
24
Table of Contents
Table of Contents
4
Steam Distribution
5
General
6
Operating Principle
8
ES Series Humidifier ID Codes
10
ES Series Humidifier Technical Data
10
OEM Series Humidifier ID Codes
11
OEM Series Humidifier Technical Data
11
Overall Dimensions
12
Standard Assembly Kit
13
ES Series Humidifier Electrical Power Connections and Security
20
ES and OEM Series Control Signals and Sensors Connections
20
Wiring Diagrams es and OEM Series
23
OEM Series Humidifier Electrical Connection
27
Level 1 Programming
29
Level 2 Programming
30
Single Humidifier Configuration
32
Master/Slave Humidifiers Configuration
32
Initial Start-Up
35
Steam Production
35
Troubleshooting
36
Maintenance
38
General Safety Rules
38
Maintenance Intervals
38
Changing the Cylinder
40
Ec Declaration of Conformity
47
